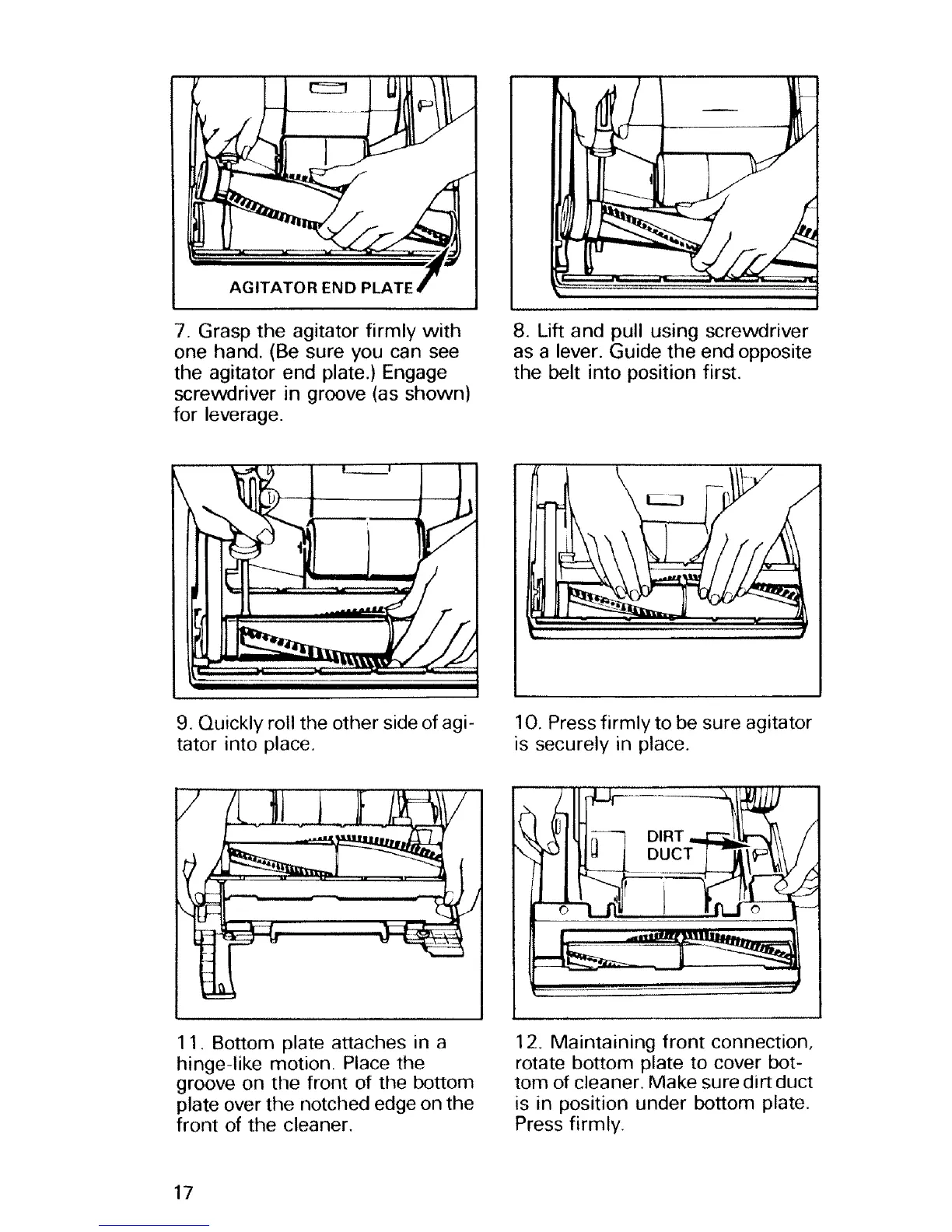

AGITATOR END PLATE
7. Grasp the agitator firmly with
one hand. (Be sure you can see
the agitator end plate.) Engage
screwdriver in groove (as shown)
for leverage.
8. Lift and pull using screwdriver
as a lever. Guide the end opposite
the belt into position first.
9. Quickly roll the other side of agi-
tator into place.
10. Press firmly to be sure agitator
is securely in place.
............
\
/
', 4 " __
1 1. Bottom plate attaches in a
hinge-like motion. Place the
groove on the front of the bottom
plate over the notched edge on the
front of the cleaner.
12_ Maintaining front connection,
rotate bottom plate to cover bot-
tom of cleaner. Make sure dirt duct
is in position under bottom plate.
Press firmly.
