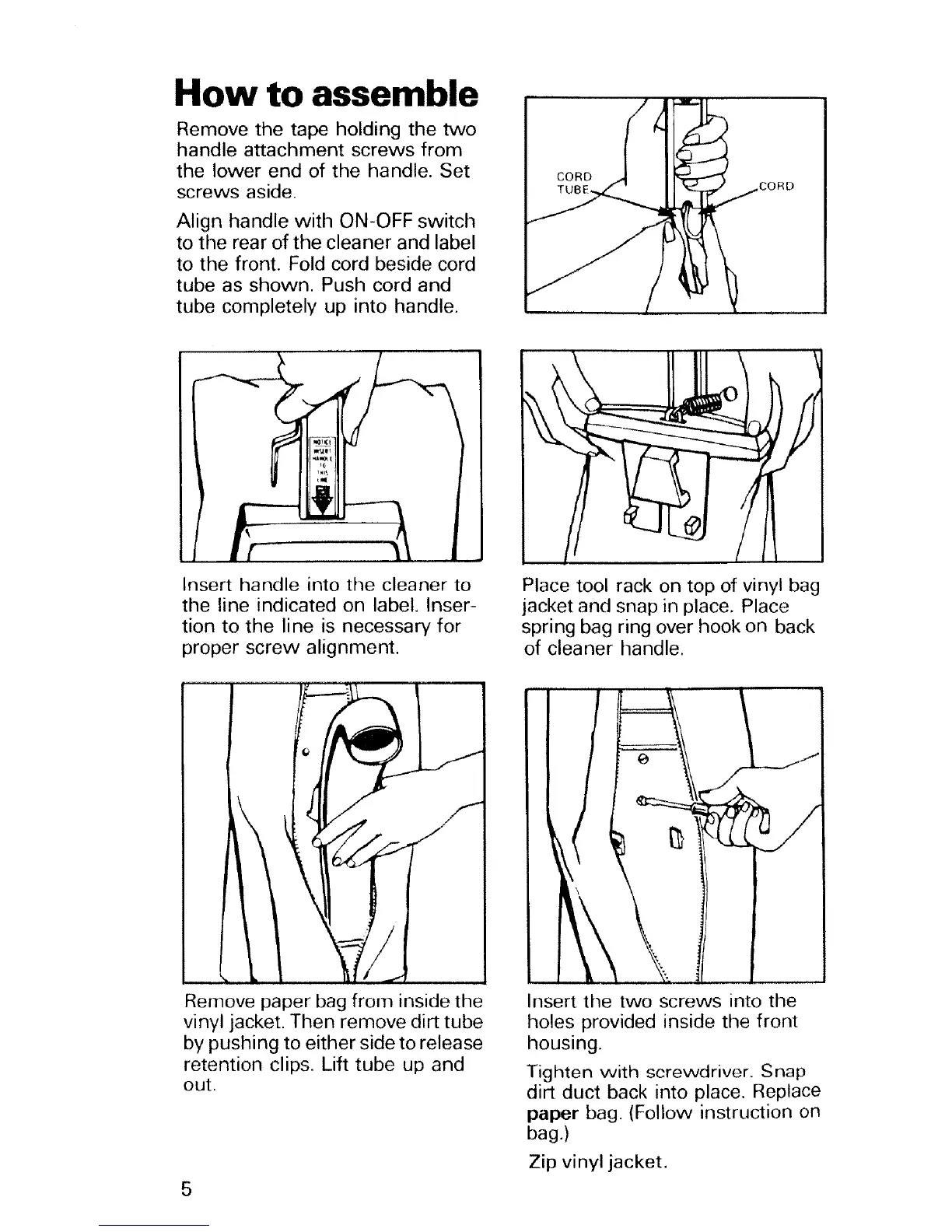

How to assemble
Remove the tape holding the two
handle attachment screws from
the lower end of the handle. Set
screws aside.
Align handle with ON-OFF switch
to the rear of the cleaner and label
to the front, Fold cord beside cord
tube as shown. Push cord and
tube completely up into handle.
CORD
TUBE~
CORD
Insert handle into the cleaner to
the line indicated on label. Inser-
tion to the line is necessary for
proper screw alignment.
i
Remove paper bag from inside the
vinyl jacket. Then remove dirt tube
by pushing to either side to release
retention clips. Lift tube up and
out.
5
Place tool rack on top of vinyl bag
jacket and snap in place. Place
spring bag ring over hook on back
of cleaner handle.
Insert the two screws into the
holes provided inside the front
housing.
Tighten with screwdriver. Snap
dirt duct back into place, Replace
paper bag. (Follow instruction on
bag.)
Zip vinyl jacket.
