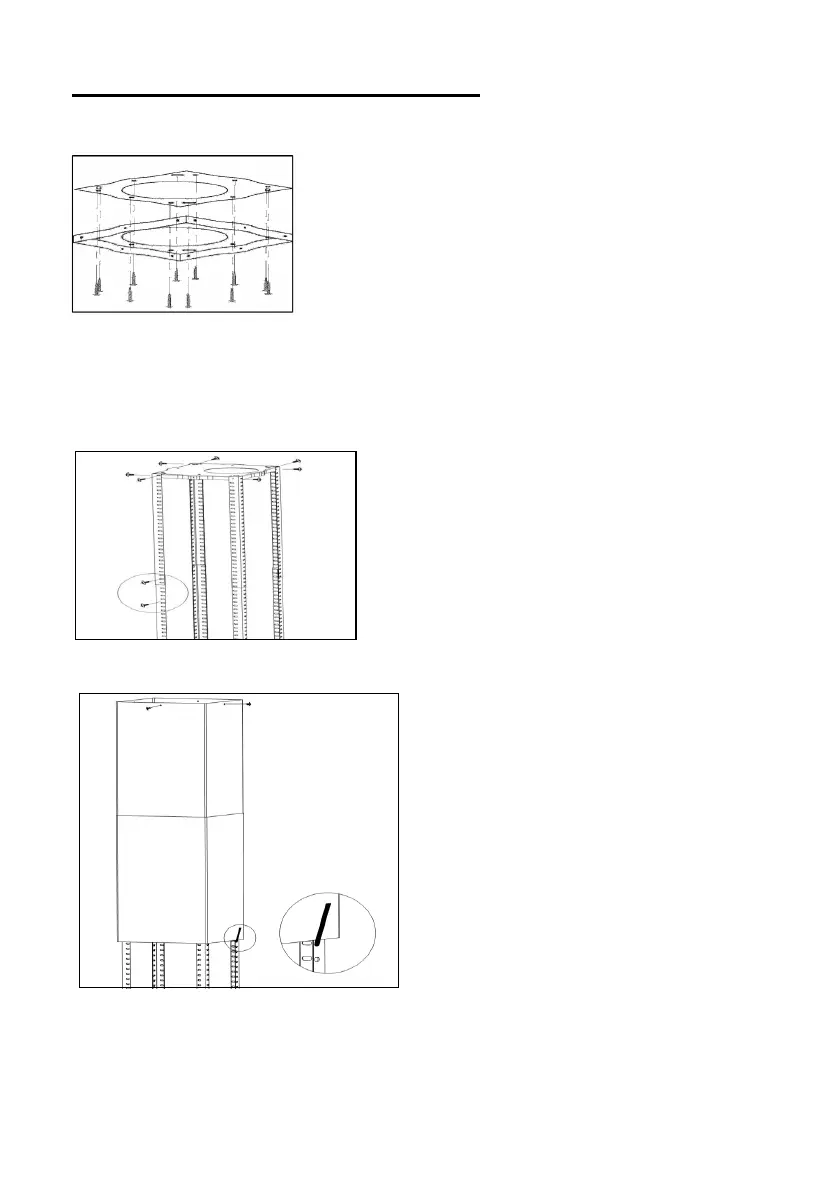

1)
Position the hanging plate on the
ceiling and then mark the position of the
screw holes.
The hanging plate should be securely fixed
to the ceiling,
11 x ST6 (40 mm)screws for wooden ceiling
8 x expansion bolts for cement ceiling
2) Fix the angle bars to the hanging plate,
using the 8 x M5 screws.
3) Extend the angle bars to the repuired
height and then fix them in position using the
16 x
M5 screws and nuts with metal
washers.
IMPORTANT: The angle bars must have an overlap
of AT LEAST 100
�
mm.
4) If your cooker hood is going to
be used in extraction mode, then
you should
connect the ducting
hose to the ceiling adaptor at this
point.
Fix the upper chimney section to
the hanging plate, using the 4 x
self tapping screws.
Slide the lower chimney section
onto the
angle bars and raise it
until it sits just below the upper
chimney section.
CEILING MOUNTING INSTALLATION
