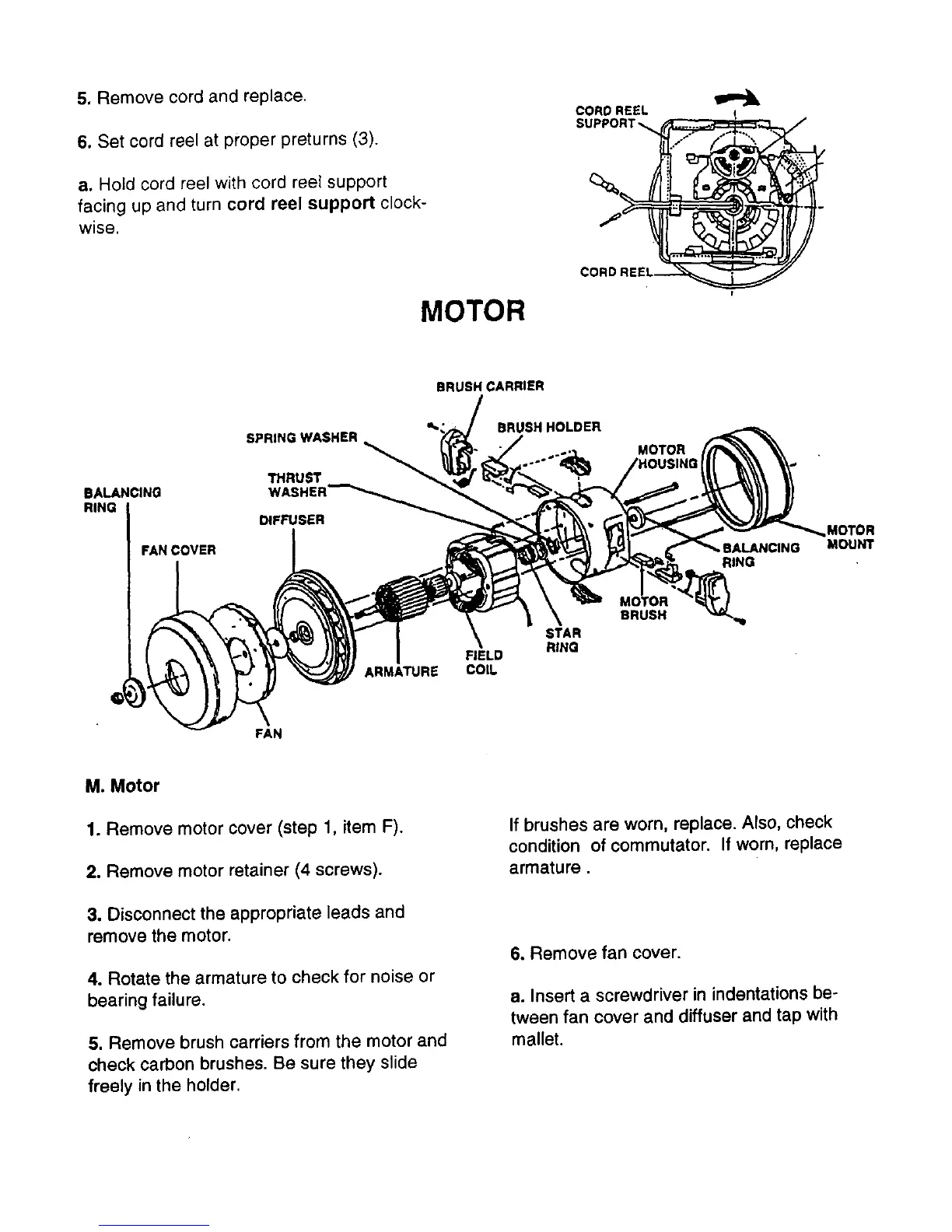

5. Remove cordand replace.
6. Set cord reelat properpreturns (3).
a. Hold cord reel with cord reel support
facing upand turn cord reel support clock-
wise.
CORD REEL
SUPPORT_
MOTOR
BRUSH CARRIER
BALANCING
RING
FAN COVER
SPRING WASHER
THRUST
WASH:
BRUSH HOLDER
MOTOR
RING
MOTOR
MOUNT
ARMATURE
FIELD
COiL
STAR
RING
BRUSH
FAN
M. Motor
1. Remove motor cover (step 1, item F).
2. Remove motor retainer (4 screws).
3. Disconnect the appropriate leads and
remove the motor.
4. Rotate the armature to check for noise or
bearing failure.
5. Remove brush carriers from the motor and
check carbon brushes. Be sure they slide
freely in the holder.
If brushes are worn, replace. Also, check
condition of commutator. If worn, replace
armature.
6. Remove fan cover.
a. Insert a screwdriver in indentations be-
tween fan cover and diffuser and tap with
mallet.
To Next Page
