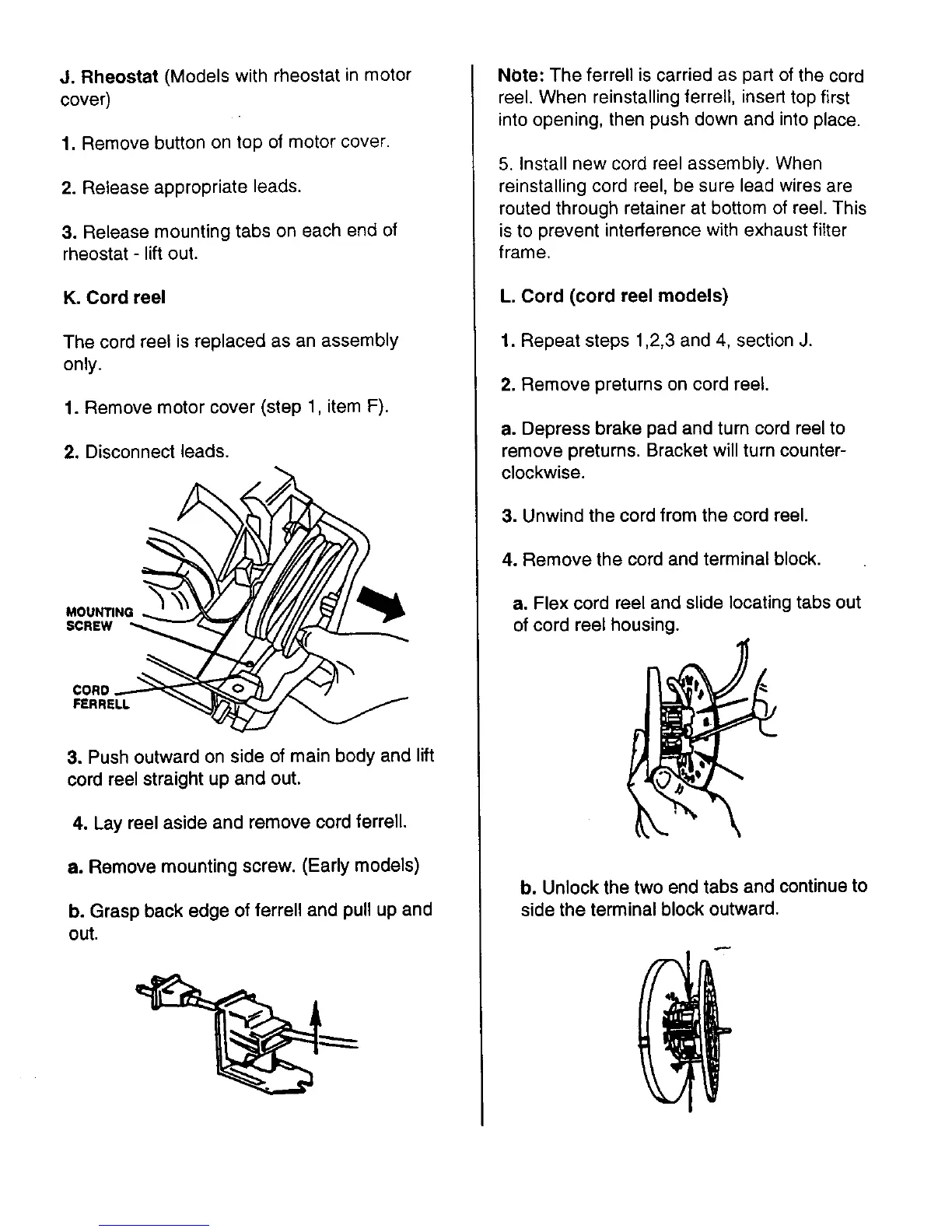

J. Rheostat (Models with rheostat in motor
cover)
1. Remove button on top of motor cover.
2. Release appropriate leads.
3. Release mounting tabs on each end of
rheostat - lift out.
K. Cord reel
The cord reel is replaced as an assembly
only.
1. Remove motor cover (step 1, item F).
2. Disconnect leads.
MOUNTING
SCREW
CORD
FERRELL
3. Push outward on side of main body and lift
cord reel straight up and out.
4. Lay reel aside and remove cord ferrell.
a. Remove mounting screw. (Early models)
b. Grasp back edge of ferrell and pull up and
out.
NOte: The ferrell is carried as part of the cord
reel. When reinstalling ferrell, insert top first
into opening, then push down and into place.
5. Install new cord reel assembly. When
reinstalling cord reel, be sure lead wires are
routed through retainer at bottom of reel. This
is to prevent interference with exhaust filter
frame.
L. Cord (cord reel models)
1. Repeat steps 1,2,3 and 4, section J.
2. Remove preturns on cord reel.
a. Depress brake pad and turn cord reel to
remove preturns. Bracket will turn counter-
clockwise.
3. Unwind the cord from the cord reel.
4. Remove the cord and terminal block.
a. Flex cord reel and slide locating tabs out
of cord reel housing.
b. Unlock the two end tabs and continue to
side the terminal block outward.
