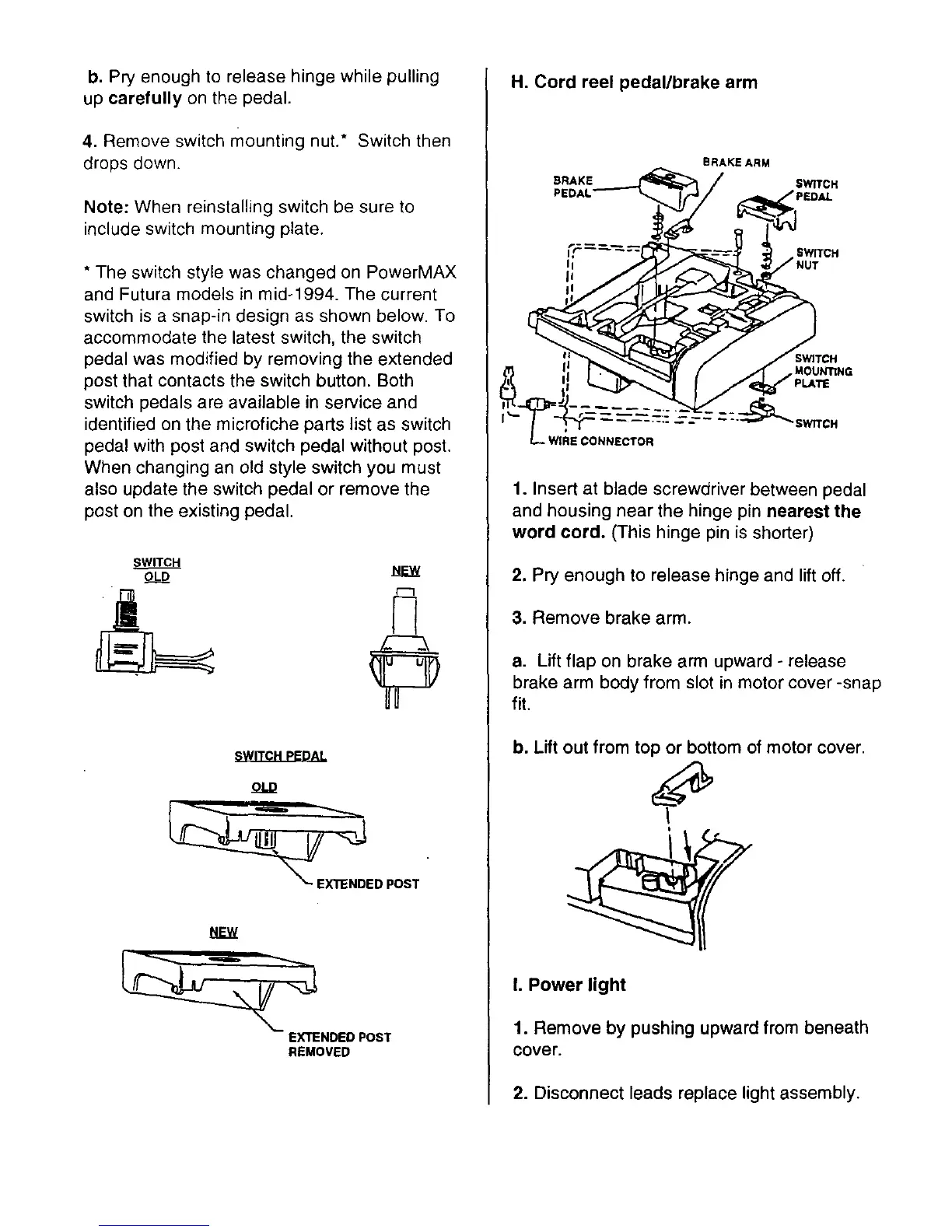

b. Pry enough to release hinge while pulling
up carefully on the pedal.
4. Remove switch mounting nut.* Switch then
drops down.
Note: When reinstalling switch be sure to
include switch mounting plate.
* The switch style was changed on PowerMAX
and Futura models in mid-1994. The current
switch is a snap-in design as shown below. To
accommodate the latest switch, the switch
pedal was modified by removing the extended
post that contacts the switch button. Both
switch pedals are available in service and
identified on the microfiche parts list as switch
pedal with post and switch pedal without post.
When changing an old style switch you must
also update the switch pedal or remove the
post on the existing pedal.
SWITCH
OLD NEW
_E_DED POST"
NEW
EXTENDED POST
REMOVED
H. Cord reel pedal/brake arm
BRAKE
BRAKEARM
SWITCH
II
•MOUNTING
L.- WIRE CONNECTOR
1. Insert at blade screwdriver between pedal
and housing near the hinge pin nearest the
word cord. (This hinge pin is shorter)
2, Pry enough to release hinge and lift off.
3. Remove brake arm.
a. Lift flap on brake arm upward - release
brake arm body from slot in motor cover -snap
fit.
b, Lift out from top or bottom of motor cover.
I. Power light
1. Remove by pushing upward from beneath
cover.
2. Disconnect leads replace light assembly.
