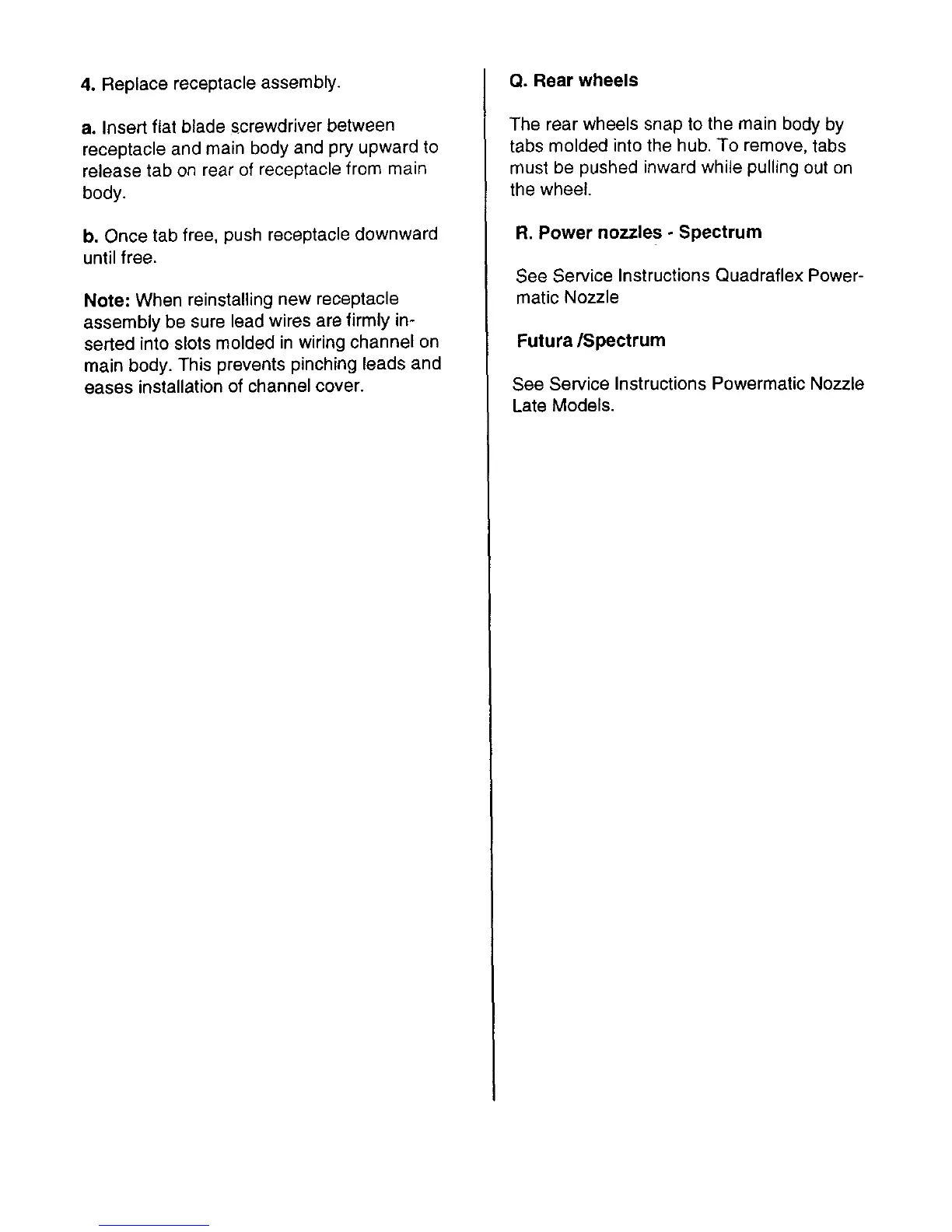

4. Replace receptacleassembly.
a. Insert flat blade screwdriverbetween
receptacle andmain bodyand pry upward to
release tab on rearof receptaclefrom main
body.
b. Once tab free, push receptacle downward
until free.
Note: When reinstalling new receptacle
assembly be sure lead wires are firmly in-
serted into slots molded in wiring channel on
main body. This prevents pinching leads and
eases installation of channel cover.
Q. Rear wheels
The rear wheels snap to the main body by
tabs molded into the hub. To remove, tabs
must be pushed inward while pulling out on
the wheel.
R. Power nozzles - Spectrum
See Service Instructions Quadraflex Power-
matic Nozzle
Futura/Spectrum
See Service Instructions Powermatic Nozzle
Late Models.
