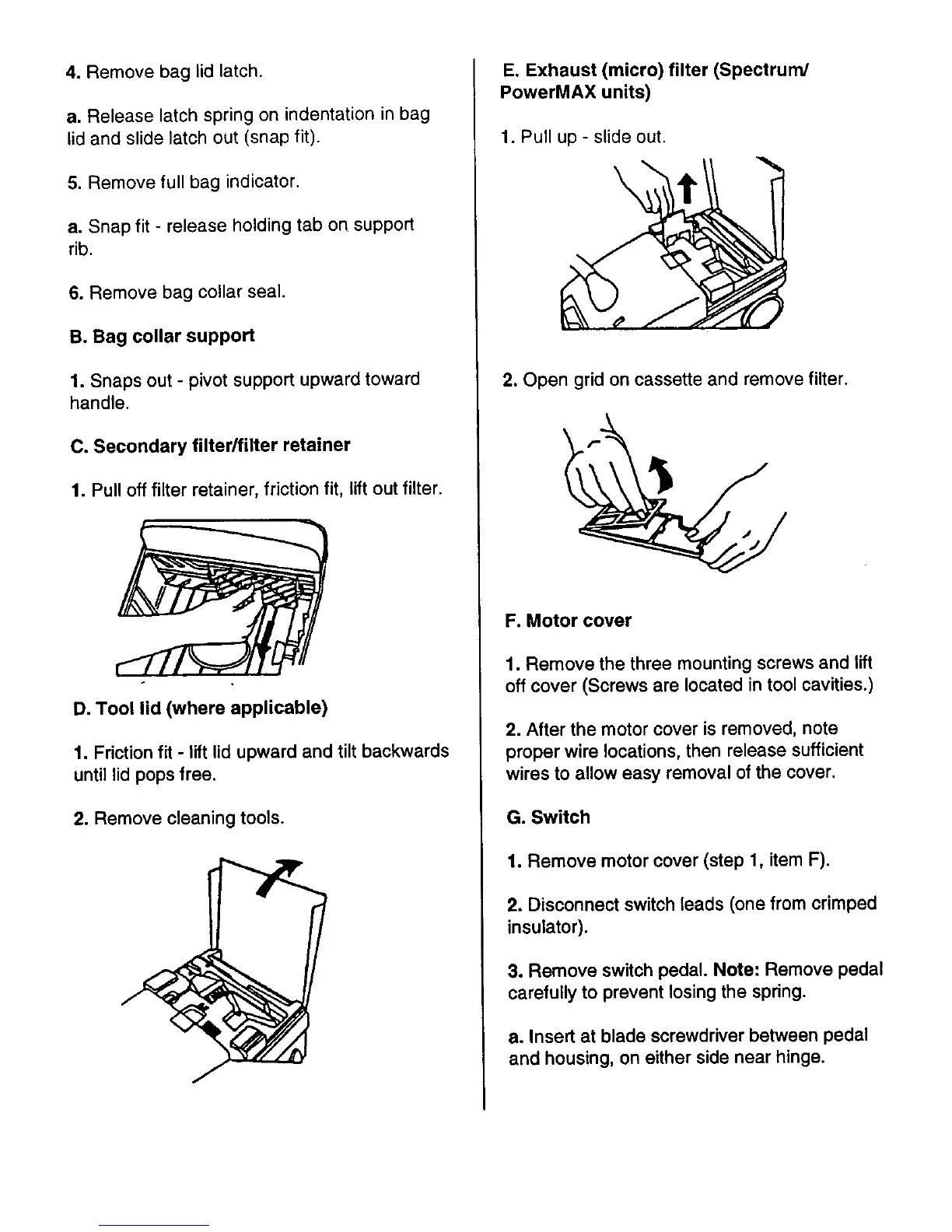

4. Remove bag lid latch.
a. Release latch spring on indentation in bag
lid and slide latch out (snap fit).
5. Remove full bag indicator.
e. Snap fit - release holding tab on support
rib.
6. Remove bag collar seal.
B. Bag collar support
1. Snaps out - pivot support upward toward
handle.
C. Secondary filter/filter retainer
1. Pull off filter retainer, friction fit, lift out filter.
D. Tool lid (where applicable)
1. Friction fit - lift lid upward and tilt backwards
until lid pops free.
2. Remove cleaning tools.
E. Exhaust (micro) filter (Spectrum/
PowerMAX units)
1. Pull up - slide out.
\
2. Open grid on cassette and remove filter.
F. Motor cover
1. Remove the three mounting screws and lift
off cover (Screws are located in tool cavities.)
2. After the motor cover is removed, note
proper wire locations, then release sufficient
wires to allow easy removal of the cover.
G. Switch
1. Remove motor cover (step 1, item F).
2. Disconnect switch leads (one from crimped
insulator).
3. Remove switch pedal. Note: Remove pedal
carefully to prevent losing the spring.
a. Insert at blade screwdriver between pedal
and housing, on either side near hinge.
