Hoover PowerMAX User Manual

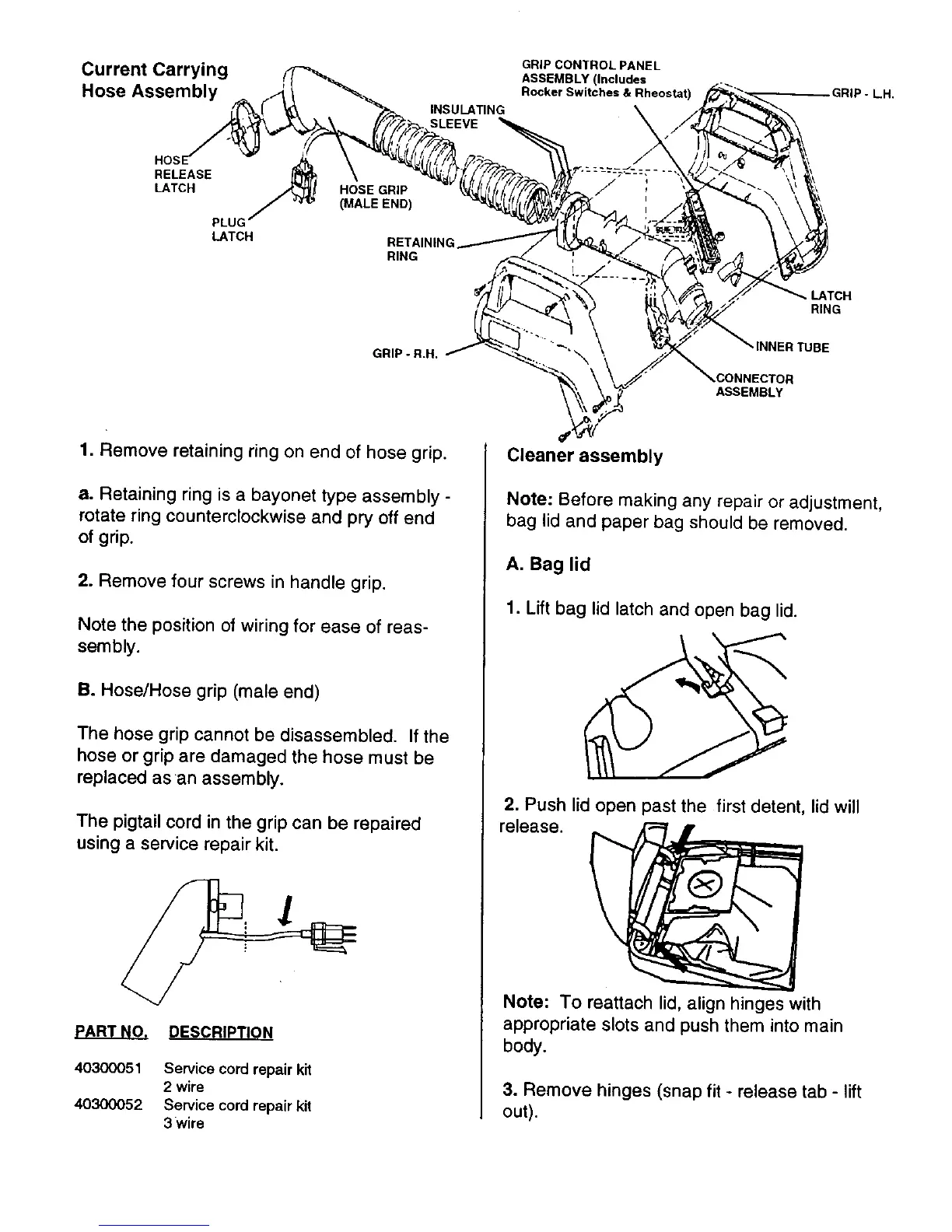

Current
Hose Assembly
INSULATING
SLEEVE
GRIP CONTROL PANEL
ASSEMBLY (Includes
Rocker Switches & Rheostat)
\
._RIP- L,H,
RELEASE
LATCH
PLUG
LATCH
HOSE GRIP
(MALE END)
RE'TAINING
RING
,. LATCH
RING
GRIP - R.H.
4NER TUBE
ASSEMBLY
1. Remove retaining ring on end of hose grip.
a. Retaining ring is a bayonet type assembly -
rotate ring counterclockwise and pry off end
of grip.
2. Remove four screws in handle grip.
Note the position of wiring for ease of reas-
sembly.
B. Hose/Hose grip (male end)
The hose grip cannot be disassembled. If the
hose or grip are damaged the hose must be
replaced as an assembly.
The pigtail cord in the grip can be repaired
using a service repair kit.
DESCRIPTION
40300051 Service cord repair kit
2 wire
40300052 Service cord repair kit
3wire
Cleaner assembly
Note: Before making any repair or adjustment,
bag lid and paper bag should be removed.
A. Bag lid
1. Lift bag lid latch and open bag lid.
2. Push lid open past the first detent, lid will
release.
Note: To reattach lid, align hinges with
appropriate slots and push them into main
body.
3. Remove hinges (snap fit - release tab - lift
out).

Hoover PowerMAX Specifications

General

Type	Upright
Bagged or Bagless	Bagless
Voltage	120 V
Height	44 inches
Amps	12 Amps
Dust Capacity	1.5 liters
Included Tools	Crevice Tool
Filter Type	HEPA
Power Source	Corded Electric
