Removing lens
Disconnect cleaner from electrical
outlet.
Using a screwdriver, remove the two
screws as shown and lift off lens.
Installing bulb
Pull old bulb straight out of socket.
Push new bulb straight into socket until
locked in place.
Excessive force is not required.
Replacing lens
Reposition lens and secure with the two
screws.
E
D
C
G
F
B
D
Belt replacement
The belt on your Hoover cleaner causes
the agitator to rotate and is important for
the effective operation of the cleaner. The
belt is located under the bottom plate of
the cleaner and should be checked from
time to time to be sure it is in good
condition.
What to buy
To assure effective operation, use only
genuine HOOVER belts with your cleaner.
When purchasing a new belt, ask for
HOOVER part No. 38528-033.
When to replace
Disconnect cleaner from electrical
outlet.
To check belt, remove bottom plate as
shown in “How to replace.” Replace belt
if it is stretched, cut or broken.
A
How to replace
Disconnect cleaner from electrical
outlet.

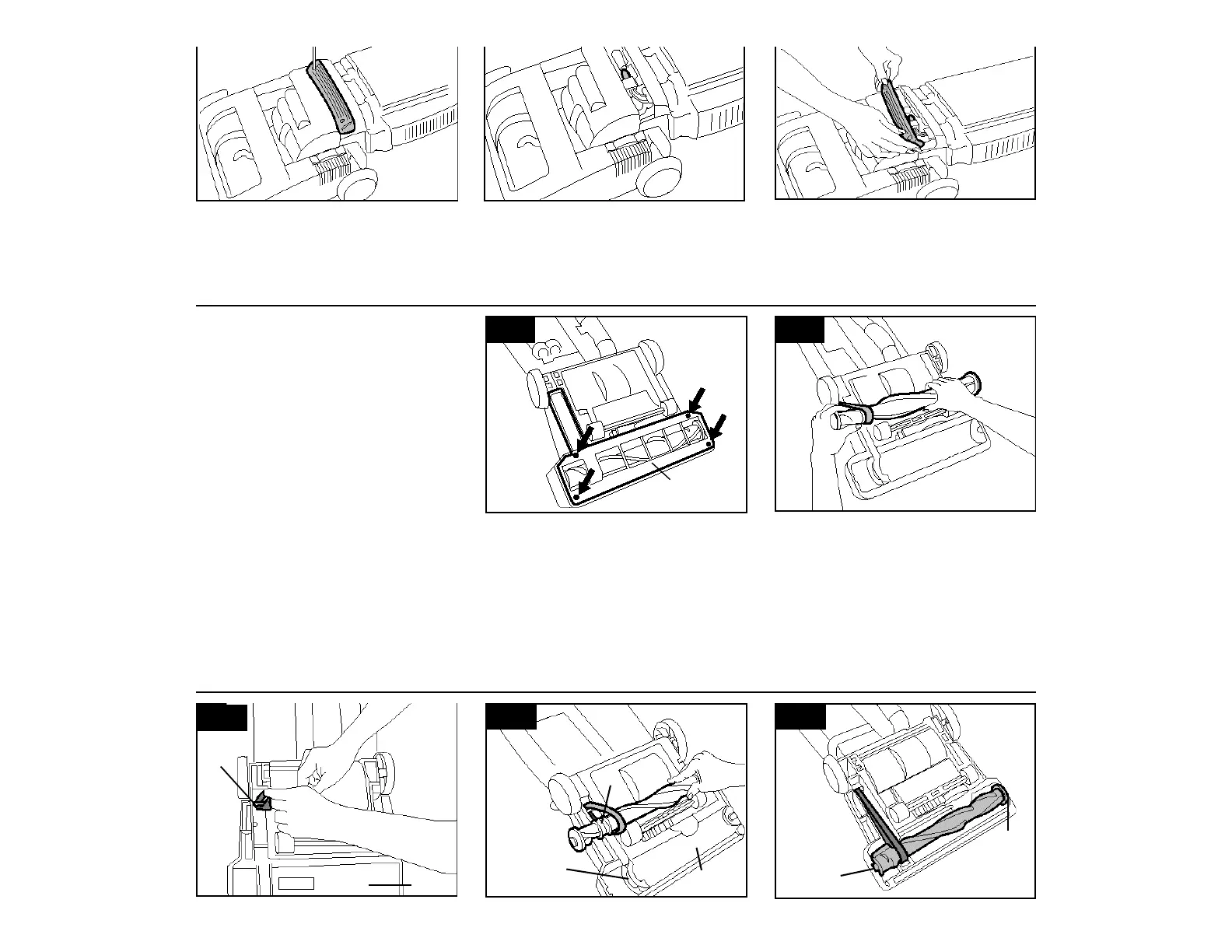

Removing bottom plate
Place handle in low position and turn
cleaner over so bottom side is up.
Remove the 4 screws as shown with a
Phillips screw driver.
Lift off bottom plate (A).
3-10 3-11
Removing agitator brush roll
Remove agitator and used belt.
Discard used belt.
3-12
3-13 3-14
To Next Page
