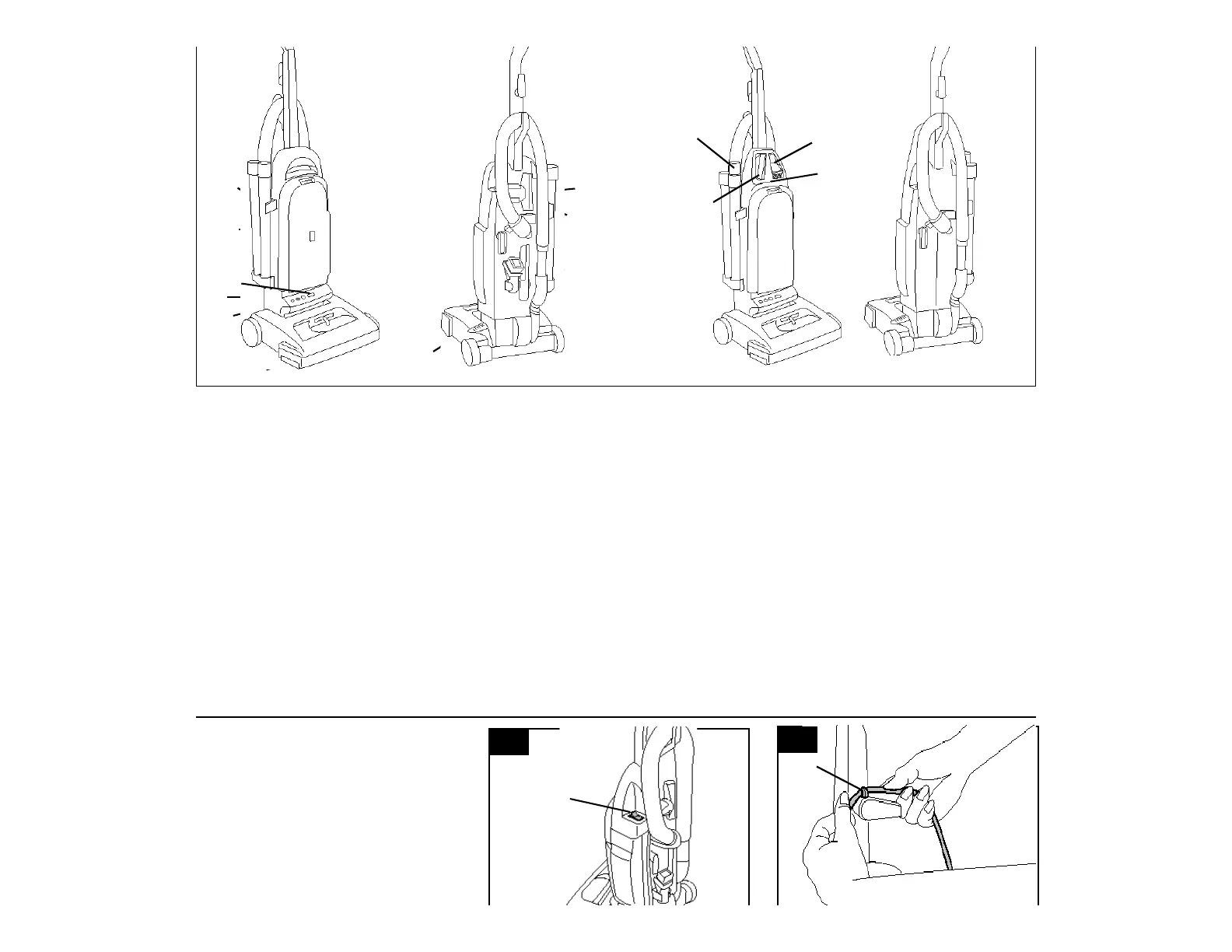

1. Handle
2. Cord hooks: wrap cord around
hooks for storage. The top
hook can be rotated right or left
for easy cord release.
3. Hose
4. ON/OFF switch: located on left
rear corner of cleaner body
5. Carrying handle
6. Bag door
7. Stair cleaning handle: located on
lower edge of bag door.
8. Handle release lever: step on
lever to lower handle to operating or
low positions.
9. Headlight*
10. Nozzle control knob: slide
knob to correct setting for height of
carpet being cleaned.
TM
Polarized plug
To reduce the risk of electric shock, this
appliance has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit,
contact a qualified electrician to install
the proper outlet. Do not change the
plug in any way.
A
B
2-3
2-2
Operate cleaner only at voltage
specified on data plate on bottom of
cleaner.
This cleaner is intended for household
use.
2
2
4
16
20
22
21
18
19
8
13
14
15
16
11. Furniture guard: helps prevent
cleaner from marking furniture.
12. Edge groomers
13. Electronic performance indicator*
14. Embedded Dirt FINDER
display*
15. 'Dirt FINDER' sensitivity switch*
16. Wands
17. Check bag indicator*
18. Final filter exhaust
19. Dusting brush
20. Crevice tool*
21. Furniture nozzle
22. Hose hook
23. Crevice wand: stores inside of
extension wand
*SOME MODELS ONLY
23
5
21
19
