EN
9

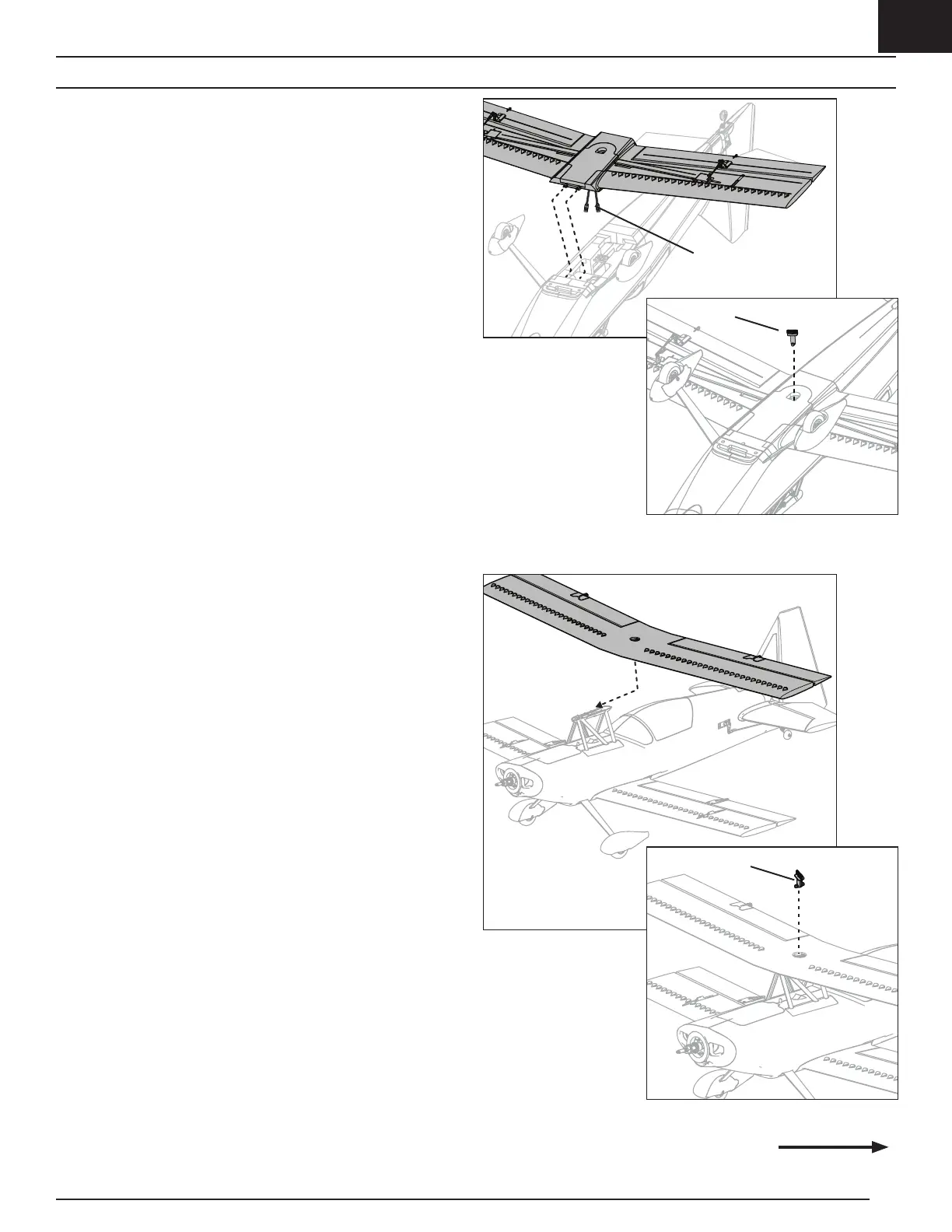

Wing Installation
Bottom Wing Installation
1. Connect the aileron servo connectors (A) to the aileron y-harness
connectors in the fuselage.
2. Align the bottom wing mounting pins with the fuselage mounting plate to
attach the bottom wing to the fuselage.
3. Secure the wing in place with the locking pin (B). Insert pin and turn 90
degrees to lock in place.
Disassemble in reverse order.
Model Assembly Continued
Top Wing Installation
1. Align the top wing with the center mounting post. Slide it into the latch
as shown.
2. Secure the wing in place with the locking pin (C). Insert pin and turn 90
degrees to lock in place.
B
c
A
Continued
To Next Page
