Hotone Binary IR User Manual

DESIG N IN SP IRATION

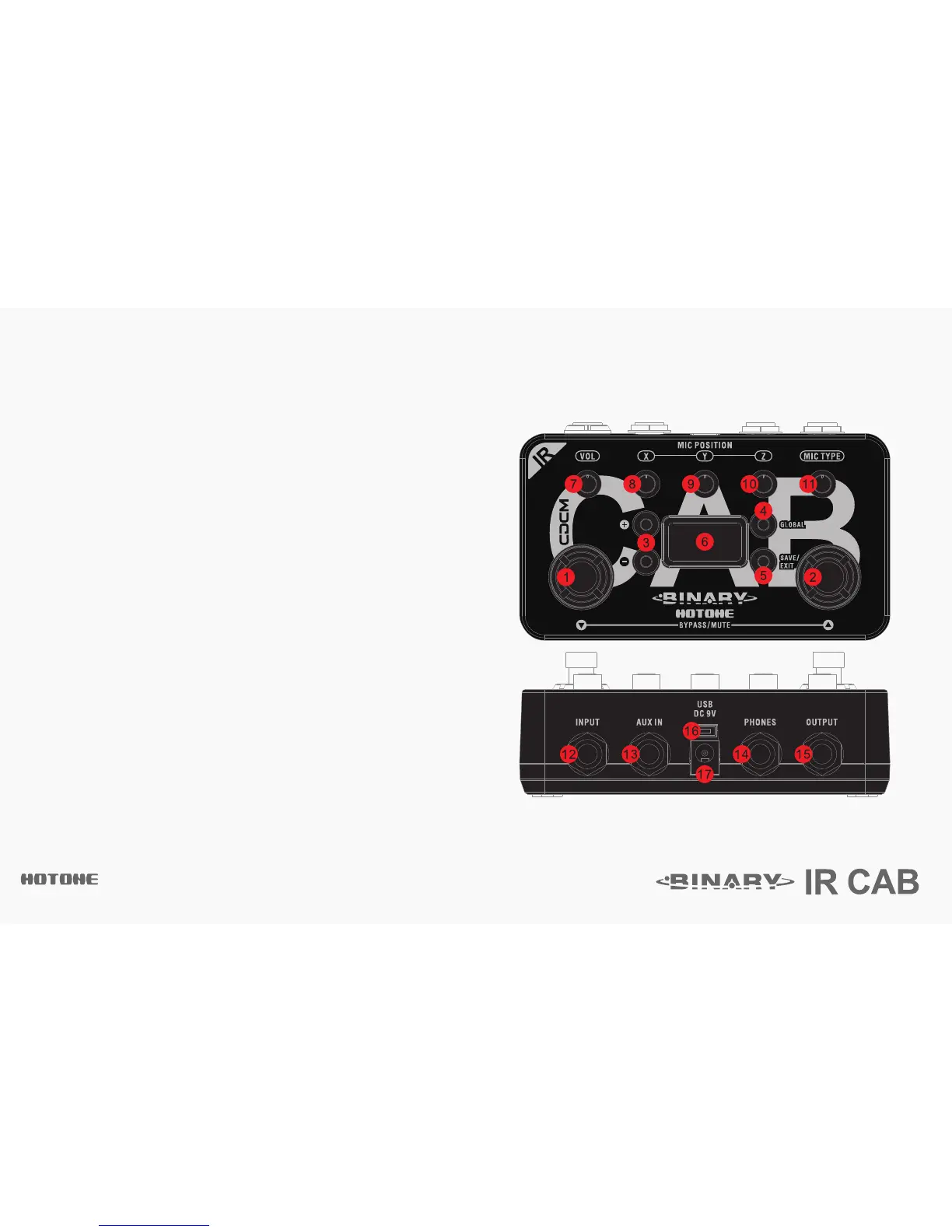

1-2. ▽/△: For selecting presets, bypass/mute, and other parameters.
3. +/- buttons: For selecting effects and adjusting parameters.
4. GLOBAL: For power amp and room control settings.
5. SAVE/EXIT button: For saving or canceling parameter changes.
6. OLED screen: Shows bank/patch numbers, setting values and other operation info.
7. VOL: Controls effect output level.
8-10. MIC POSITION X/Y/Z: Controls the mic position simulations.
11. MIC POSITION: Selects (or turns off) different microphone simulations.
12. INPUT: 1/4” (6.35mm) mono jack, for plugging in instruments or other effects.
13. AUX: 1/4” (6.35mm) stereo jack, for plugging in audio players.
Note: You can hear only left channel signal when using along with OUTPUT jack.
14. PHONES: 1/4” (6.35mm) stereo jack, for connecting headphones.
15. OUTPUT: 1/4” (6.35mm) mono jack, for connecting to audio interfaces, mixers or
other effects.
16. USB jack: Mini USB jack, for effects editing, firmware updates, and factory reset.
17. DC 9V: Plug in your power supply here (DC 9V, center negative).
Panel Introduction

Hotone Binary IR Specifications

General

Brand	Hotone
Model	Binary IR
Category	Music Pedal
Language	English
