AIR FLOW

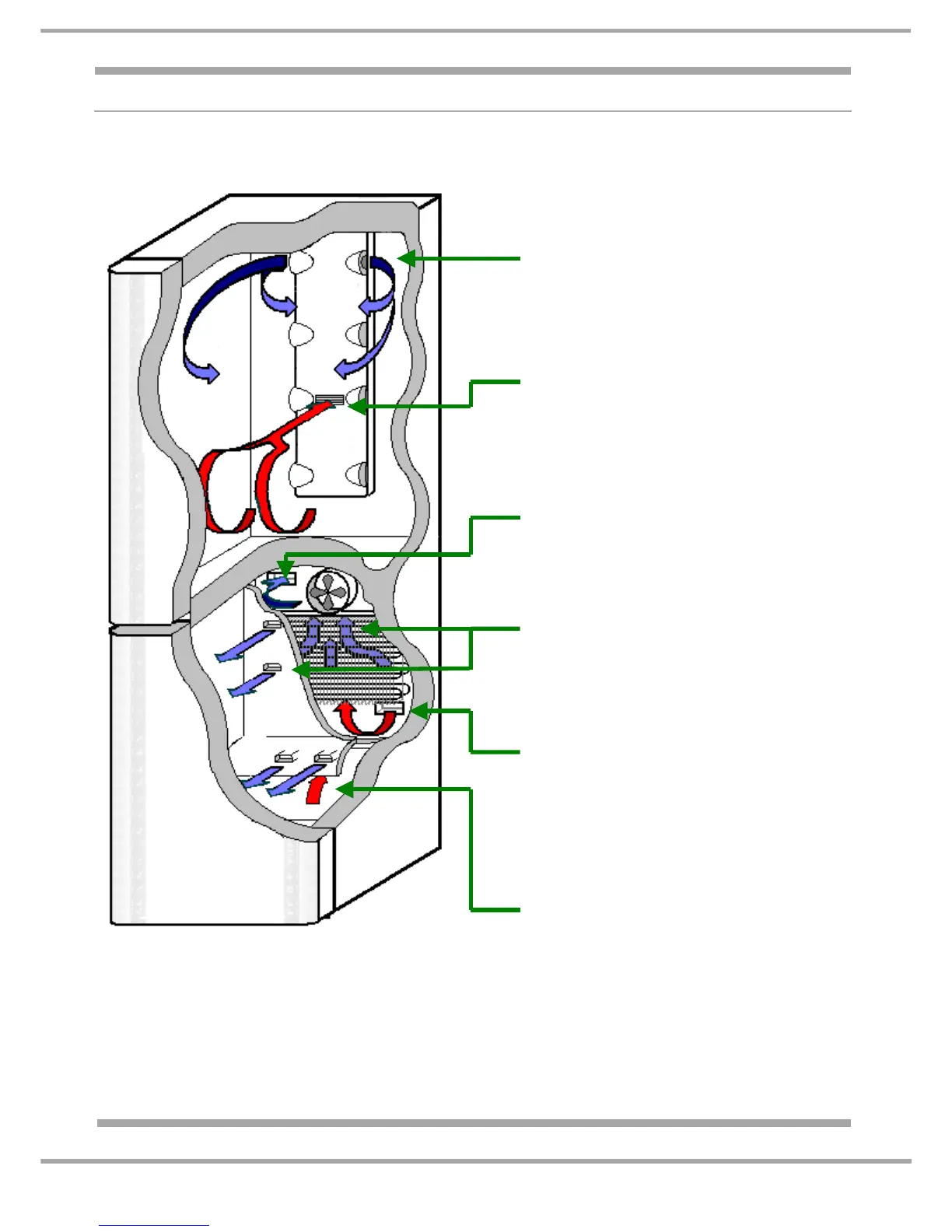

Shown through a schematic section of the cabinet
WHEN THE DAMPER (BAFFLE) OPENS,
COLD AIR ENTERS THE FRIDGE VIA
THE INLET PORTS IN THE MULTI-FLOW
UNIT.
NOTE: SOME PORTS ARE
INTENSIONALLY BLOCKED OFF.
WHEN THE DAMPER (BAFFLE) OPENS,
AIR RETURNS TO THE FREEZER
SECTION VIA THE EXHAUST GRILLE IN
THE CENTRE OF THE MULTI-FLOW
UNIT
CIRCULATED AIR IN THE FREEZER
COMPARTMENT IS DRAWN BACK
UNDER THE REAR DUCT PANELTO
THE EVAPORATOR ASSEMBLY.
AIR FLOW RETURNS TO THE FRIDGE
VIA THE INLET DUCTING.
NOTE: THE DAMPER (BAFFLE) IN THE
FRIDGE MULTI FLOW UNIT NEEDS TO
BE IN THE OPEN POSITION FOR THIS
TO HAPPEN.
THE FAN DRAWS AIR THROUGH THE
EVAPORATOR AND BLOWS IT INTO
THE TOP OF THE DUCT PANEL, IT IS
THEN CHANNELED TO THE
INDIVIDUAL FREEZER BASKETS VIA
OUTLET PORTS.
THE EVAPORATOR FAN DRAWS AIR
FLOW FROM THE FRIDGE EXHAUST
BACK THROUGH THE EVAPORATOR.
NOTE: THE DAMPER (BAFFLE) IN
THE FRIDGE MULTI FLOW UNIT
NEEDS TO BE IN THE OPEN
POSITION FOR THIS TO HAPPEN.
