PROGRAMMING THE POWER MODULE
The replacement power module is supplied un-programmed as it is used on other model with their own
specific programmes.
The use of an Eeprom is no longer necessary. The module does not have this component and there is
no Eeprom socket for inserting it. The programme file will be stored directly in the microprocessor.
Due to the module being mounted in the top front facia a new adaptor
is necessary to connect the
module. This new adaptor is similar to the earlier low end adaptor, but is compatible with EVOI, EVOII
and New Platform modules. Part No. C00255979.

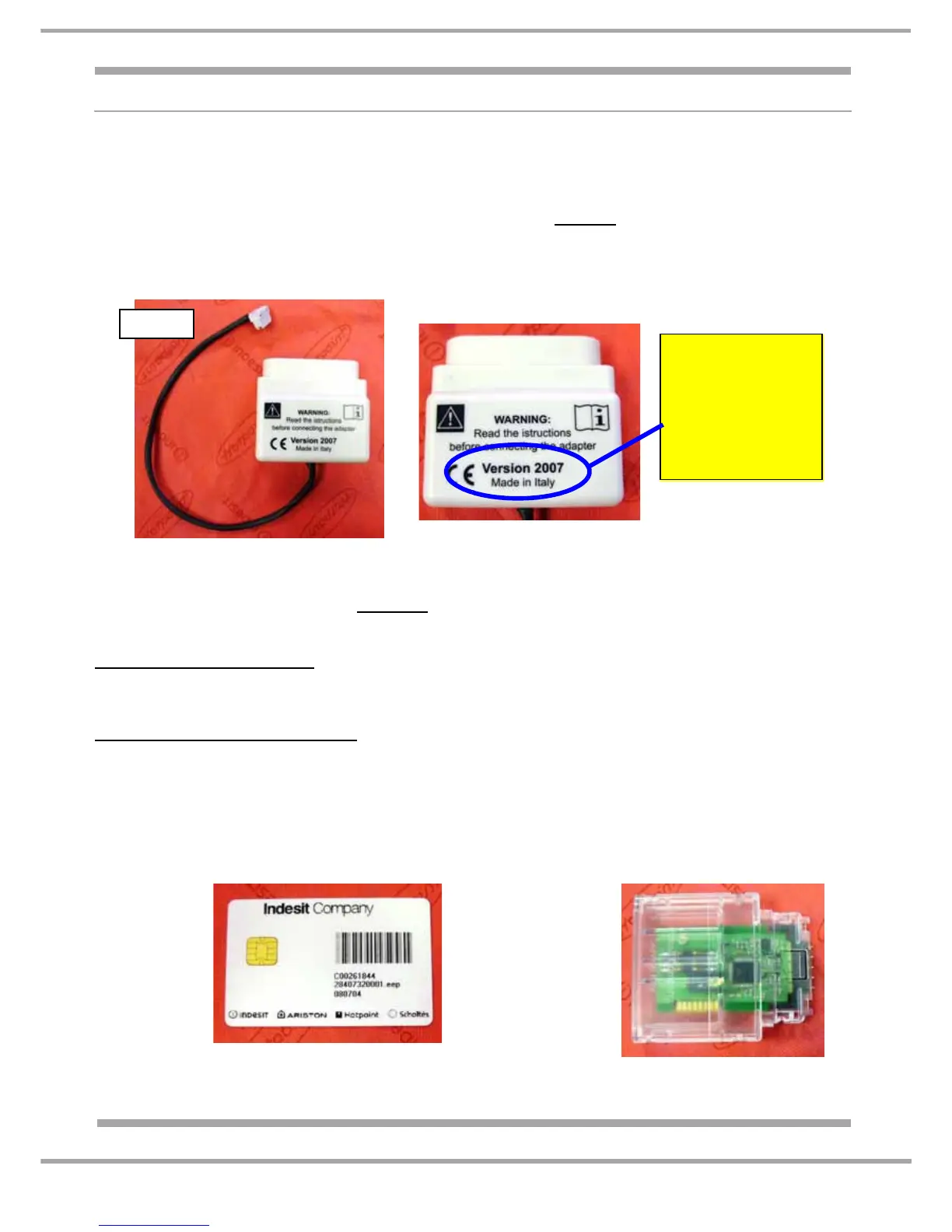

See photo 1 & 1a below.
The new adaptor can be identified with “Version 2007” printed on the plastic housing.
NOTE: The previous low end adaptor can be identified with “Version 2005” printed on the plastic
housing. “Version 2005” adaptors must not
be connected to New Platform modules.
There are two different methods of programming the module:
INDESIT ENGINEERS ONLY
1. Using a Hand-Held or PC (emit) with the BLACK Hardware Key (to download the programme
file).
Suitably Qualified Persons ONLY
(refer to pages 2 & 3 of the HEALTH & SAFETY section at the
front of this manual before proceeding)
2. Using a Smart Card (which contains the specific programme file) in association with a Smart
Reader for reading the card. See photos 2 & 2a below.
The Smart Card is listed against all relevant models. You will need the following additional
information from the appliance rating plate to identify the correct Smart Card:
Model No., Industrial Code and Serial No.,
Photo 1a
Photo 2
Smart Card
Photo 2a
Smart Card
Reader
Photo 1
Version 2007
compatible with:
EVOI, EVOII &
NEW PLATFORM
modules
