Indesit Company
Service Manual UK English

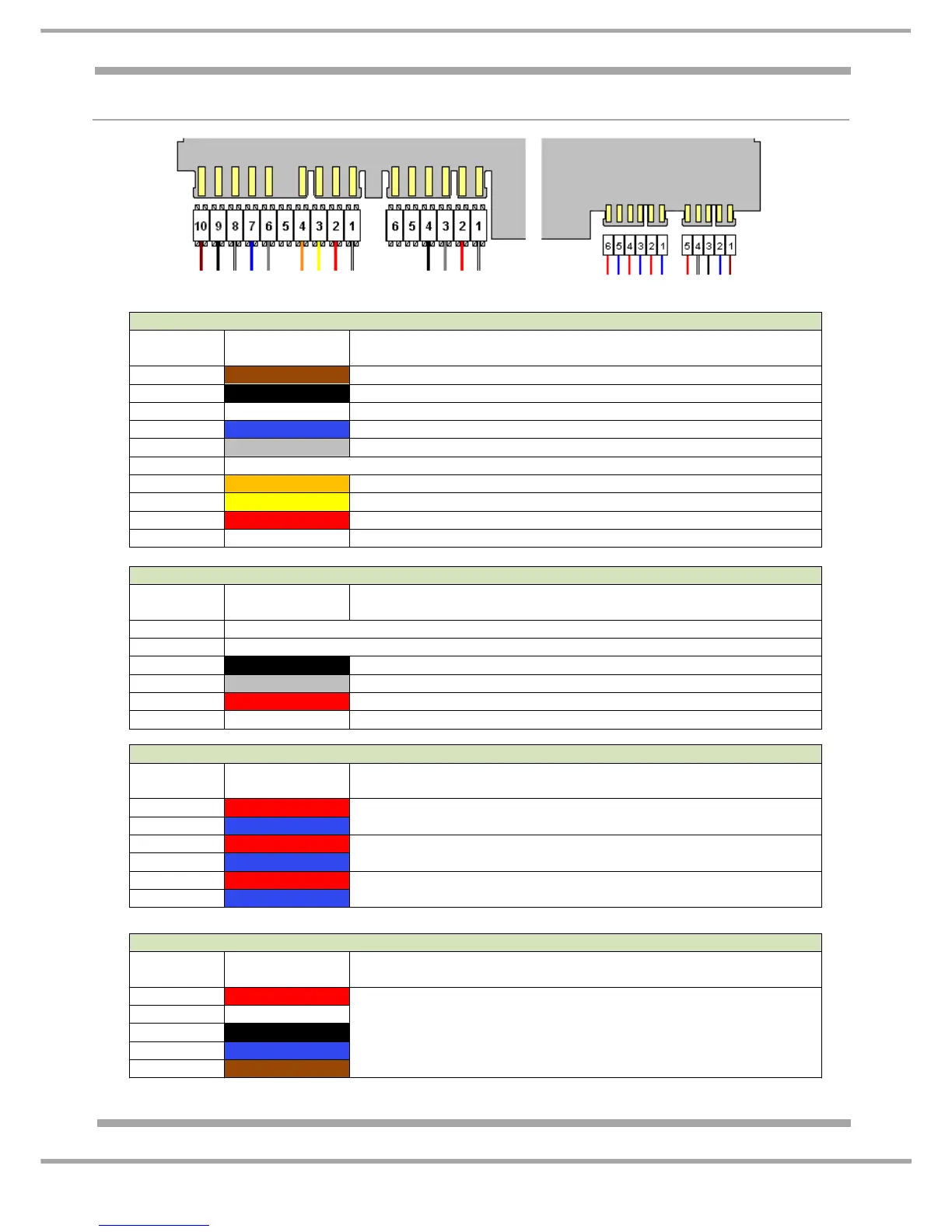

POWER / CONTROL MODULE EDGE CONNECTIONS
E 1 – TERMINAL CONNECTIONS
TERMINAL
No.
WIRE COLOUR COMPONENT
10
BROWN
LINE (LIVE)
9
BLACK
COMPRESSOR OVERLOAD (COMMON)
8
WHITE
EVAPORATOR FAN MOTOR
7
BLUE
NEUTRAL
6
GREY
THERMAL FUSE
5 NOT USED
4
ORANGE
FRIDGE INTERIOR LAMP
3
YELLOW
FRIDGE INTERIOR LAMP
2
RED
THERMAL FUSE
1
WHITE
EVAPORATOR FAN MOTOR
E 2 – TERMINAL CONNECTIONS
TERMINAL
No.
WIRE COLOUR COMPONENT
6 NOT USED
5 NOT USED
4
BLACK
FRIDGE DAMPER (BAFFLE)
3
GREY
FRIDGE DAMPER (BAFFLE)
2
RED
FRIDGE DAMPER (BAFFLE)
1
WHITE
FRIDGE DAMPER (BAFFLE)
E 4 – IDC CONNECTIONS
TERMINAL
No.
WIRE COLOUR COMPONENT
6
RED
FREEZER AIR THERMISTOR SENSOR (black sleeve)
5
BLUE
4
RED
FRIDGE AIR THERMISTOR SENSOR (red sleeve)
3
BLUE
2
RED
FREEZER EVAPORATOR THERMISTOR SENSOR
1
BLUE
E 3 – IDC CONNECTIONS
TERMINAL
No.
WIRE COLOUR COMPONENT
5
RED
FLY LEAD/HARNESS TO COMPRESSOR COMPARTMENT.
THIS HARNESS IS FOR PRODUCTION USE ONLY.
DO NOT CONNECT OR USE THE FLY END OF
THIS HARNESS
4
WHITE
3
BLACK
2
BLUE
1
BROWN
E 1 E 2
E 3 E 4
