HotSpring Aria Instructions

x Page x x
System Ground Terminal
GRD
**

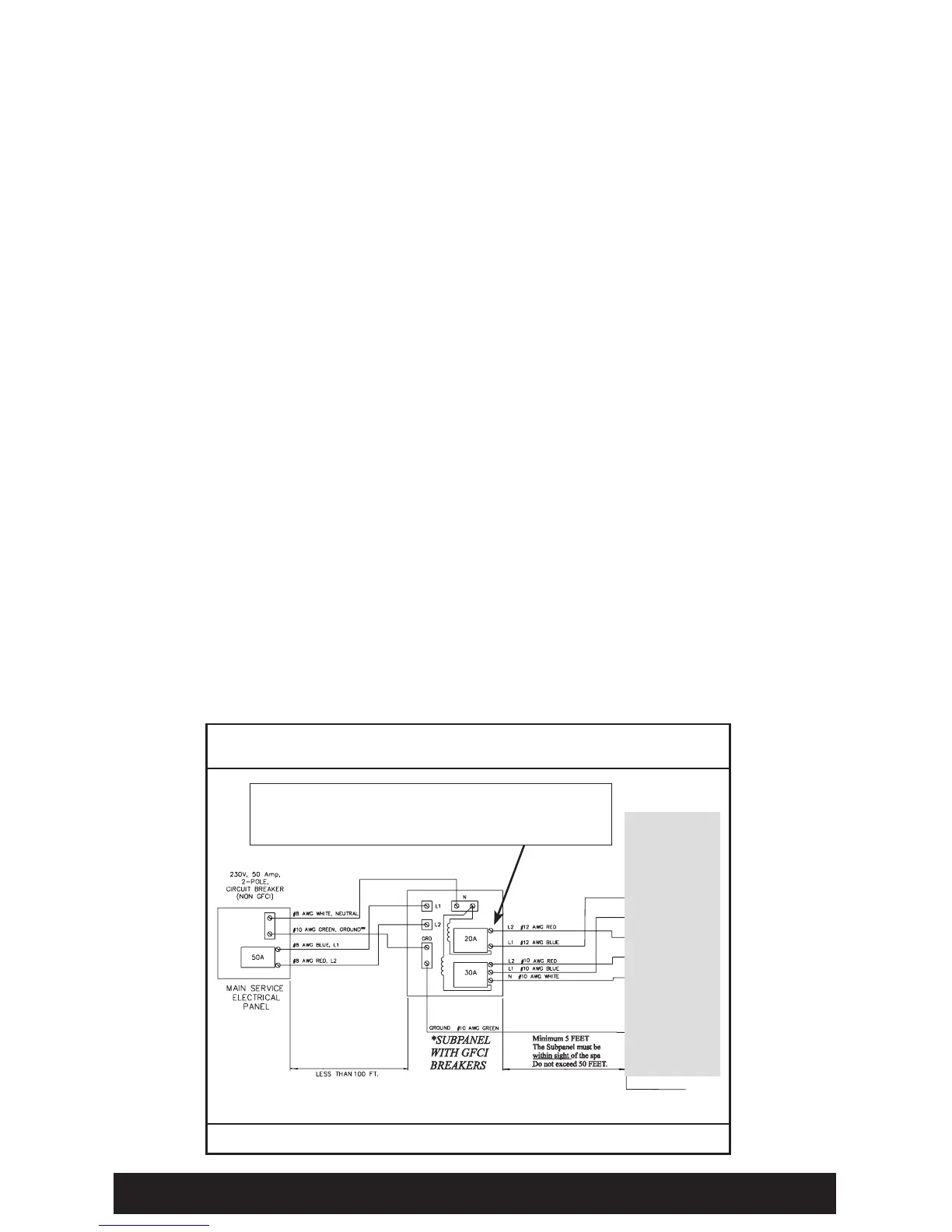

GRANDEE (Model GG), ENVOY (Model KK), VANGUARD (Model VV)
& ARIA (Model AR)230voltpermanentlyconnectedmodels
*PROVIDED WITH SPA. NOTE: ALL WIRING SHOULD BE COPPER.
NOTE: The wire connections to GFCI breakers are for reference only. Always ensure the
white neutral wire is connected to the load neutral of the 30 amp breaker.
WARNING! The exact physical location of the terminals
on the GFCI breaker will vary between manufacturers.
Connecting the hot wire to the neutral terminal will
cause irreversible damage to the control box.
230 VOLT OPERATION REQUIREMENTS
Allmodelsrequirea50amp,singlephase,230voltcircuitbreakerinthemainelectricalservicepanel.
All230voltHotSpring spas must be wired in accordance with applicable local and national electrical codes, all
electrical work must be done by a licensed electrician.
NOTE: Watkins Manufacturing Corporation RE QUIRES THE USE OF A SUBPANEL TO SUPPLY POWER AND
PROTECT THE SPA. On the GRANDEE, ENVOY, VANGUARD, ARIA and SOVEREIGN models, the subpanel
containingGFCIbreakersisincludedwiththespa.Onthe230voltJETSETTER model, the subpanel containing
GFCI breakers must be purchased separately and can be purchased from your HOT SPRING dealer.
A licensed electrician should install a four-wire electrical service (two line voltages, one neutral, one ground) from
the main electrical service panel to the subpanel, and from the sub-panel to the spa per the appropriate wiring
diagram as illustrated below.
Thegroundingconductormustbeatleast#10AWG.Yourelectricianshouldmountthesubpanelinthevicinityof
the spa but it should not be closer than five (5) feet from the spa water edge (NEC 680-38 to 41-A-3).
INSTALLATION NOTE: After the spa has been installed by the dealer’s delivery crew, your electrician can connect
theconduitfromthesubpaneltothespa’sIQ2020
®
Control Box and then complete the wiring connections in the
control box.
IMPORTANT NOTE: Three different wiring diagrams are shown: one for GRANDEE, ENVOY, VANGUARD &
ARIA models. One for the SOVEREIGN model, and one for the PRODIGY & JETSETTER models. Always follow
the wiring diagram for your specific model.
NOTE: Completestep-by-stepInstallationandWiringInstructionsforall230voltHotSpringmodelsareincludedin
the Owner’s Manual and with each sub-panel, which can be obtained from your dealer.
WARNING: Removing or bypassing the GFCI breakers in the subpanel at any time will result in an unsafe spa and
will void the warranty.
WIRE SPECIFICATION NOTE: Long electrical runs may require a larger gauge feed wire than stated. We
recommend that a maximum voltage drop of 3% be used when calculating the larger wire size.
RefertotheWiringDiagramstotherightfortheelectricalrequirementsofthe230voltmodels.
When connecting the supply conduit to the bottom of the IQ 2020 box, use a 3/4” liquid-tight flex conduit fitting.
Page 8 Pre-Delivery Instructions
See owner’s
manual or
control box
schematic
for electrical
connection
details.

HotSpring Aria Specifications

General

Water Care System	FreshWater® Salt System
Lighting System	LED lighting
Control System	Wireless remote control
Heater	4, 000w/230v
Pump	2 pumps
Filtration	Tri-X filter
Warranty	5 years equipment
Seating Capacity	5-6
