HotSpring Aria Instructions

x Page x xPre-Delivery Instructions Page 9

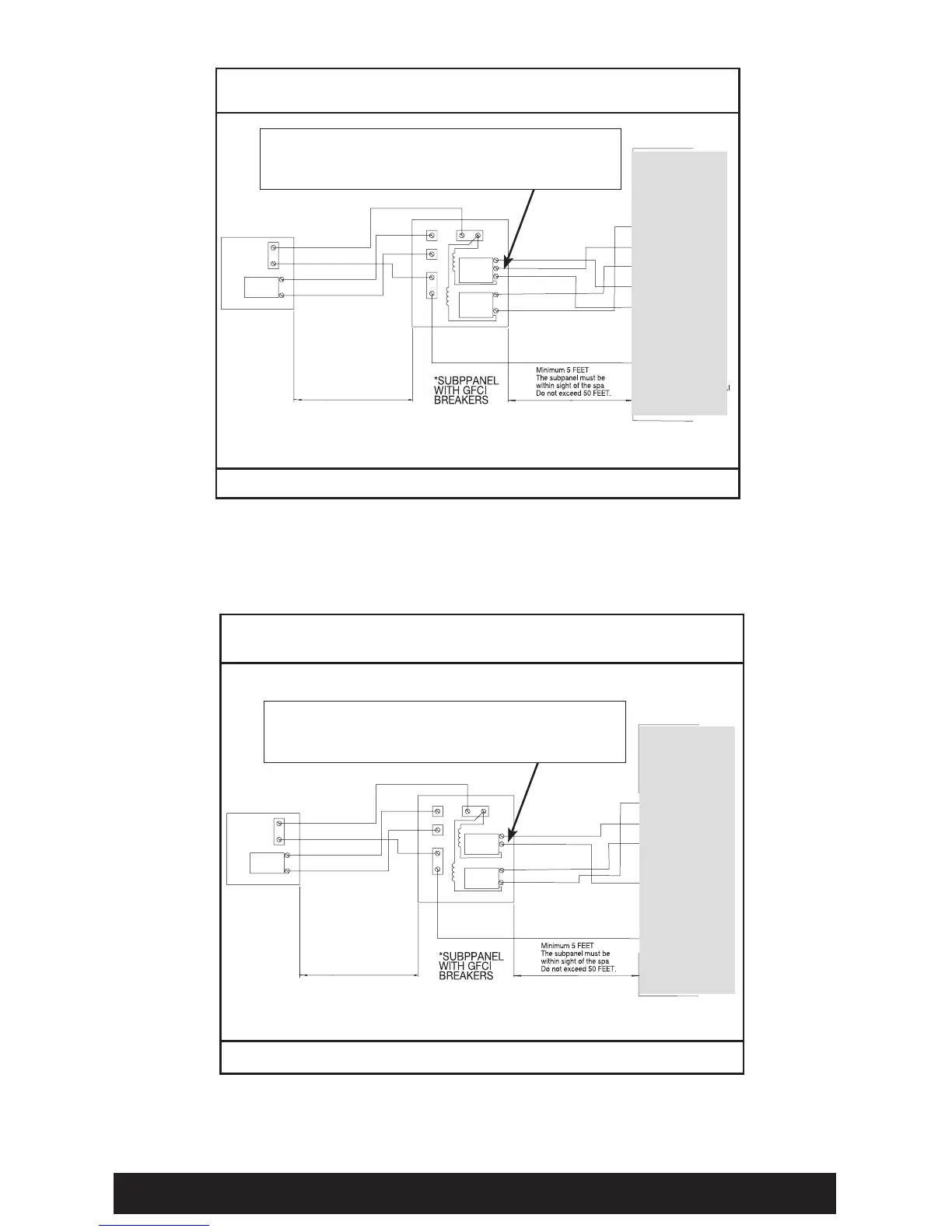

PRODIGY (Model H) & JETSETTER (Model JJ)
230voltconvertedmodels
WARNING! The exact physical location of the terminals
on the GFCI breaker will vary between manufacturers.
Connecting the hot wire to the neutral terminal will
cause irreversible damage to the control box.
L1 #10 AWG BLUE
54321
L2 #10 AWG RED
N #12 AWG WHITE
L2
L1
L1 #12 AWG BLUE
GRD
GROUND #10 AWG GREEN
GRD
#8 AWG WHITE, NEUTRAL
#10 AWG GREEN, GROUND
#8 AWG BLUE, L1
#8 AWG RED, L2
N
20A
50A
230V, 50 Amp,
2–POLE,
CIRCUIT BREAKER
(NON GFCI)
30A
LESS THAN 100 FT.
MAIN SERVICE
ELECTRICAL
PANEL
CONTROL BOX
TB1
HEATER
GROUND
*AVAILABLE FROM DEALER. NOTE: ALL WIRING SHOULD BE COPPER.
NOTE: The wire connections to GFCI breakers are for reference only. Always ensure the
whiteneutralwireisconnectedtotheloadneutralofthe20ampbreaker.
See owner’s
manual or
control box
schematic
for electrical
conversion
and
connection
details.
L1 #10 AWG BLUE
54321
L2 #10 AWG RED
N #12 AWG WHITE
L2 #12 AWG RED
L2
L1
L1 #12 AWG BLUE
GRD
GROUND #10 AWG GREEN
GRD
#8 AWG WHITE, NEUTRAL
#10 AWG GREEN, GROUND
#8 AWG BLUE, L1
#8 AWG RED, L2
N
20A
50A
230V, 50 Amp,
2–POLE,
CIRCUIT BREAKER
(NON GFCI)
30A
LESS THAN 100 FT.
MAIN SERVICE
ELECTRICAL
PANEL
CONTROL BOX
TB1
HEATER
GROUND
SOVEREIGN (Model II)
230voltpermanentlyconnectedmodels
*PROVIDED WITH SPA. NOTE: ALL WIRING SHOULD BE COPPER.
NOTE: The wire connections to GFCI breakers are for reference only. Always ensure the
whiteneutralwireisconnectedtotheloadneutralofthe20ampbreaker.
WARNING! The exact physical location of the terminals
on the GFCI breaker will vary between manufacturers.
Connecting the hot wire to the neutral terminal will
cause irreversible damage to the control box.
See owner’s
manual or
control box
schematic
for electrical
connection
details.

HotSpring Aria Specifications

General

Water Care System	FreshWater® Salt System
Lighting System	LED lighting
Control System	Wireless remote control
Heater	4, 000w/230v
Pump	2 pumps
Filtration	Tri-X filter
Warranty	5 years equipment
Seating Capacity	5-6
