HotSpring HIGHLIFE ENVOY User Manual

81" (205.7 cm)
52" (132.1 cm)
7 " (17.8 cm)
34 " (86.4 cm)
38" (96.5 cm)
46.5" (118 cm) 46.5" (118 cm)
91" (231.1 cm)
13"
(33 cm)
28 " (71 cm)
11.5"
(29.2 cm)
30" (76.2 cm)
93" (236.2 cm)
ENVOY
28" (71 cm)
28" (71 cm)
40" (101.6 cm)
49" (124.5 cm)
65" (165.1 cm)
28" (71.1 cm)
6" (15.2 cm)
15"
(38 cm)
ENVOY
Dimensions

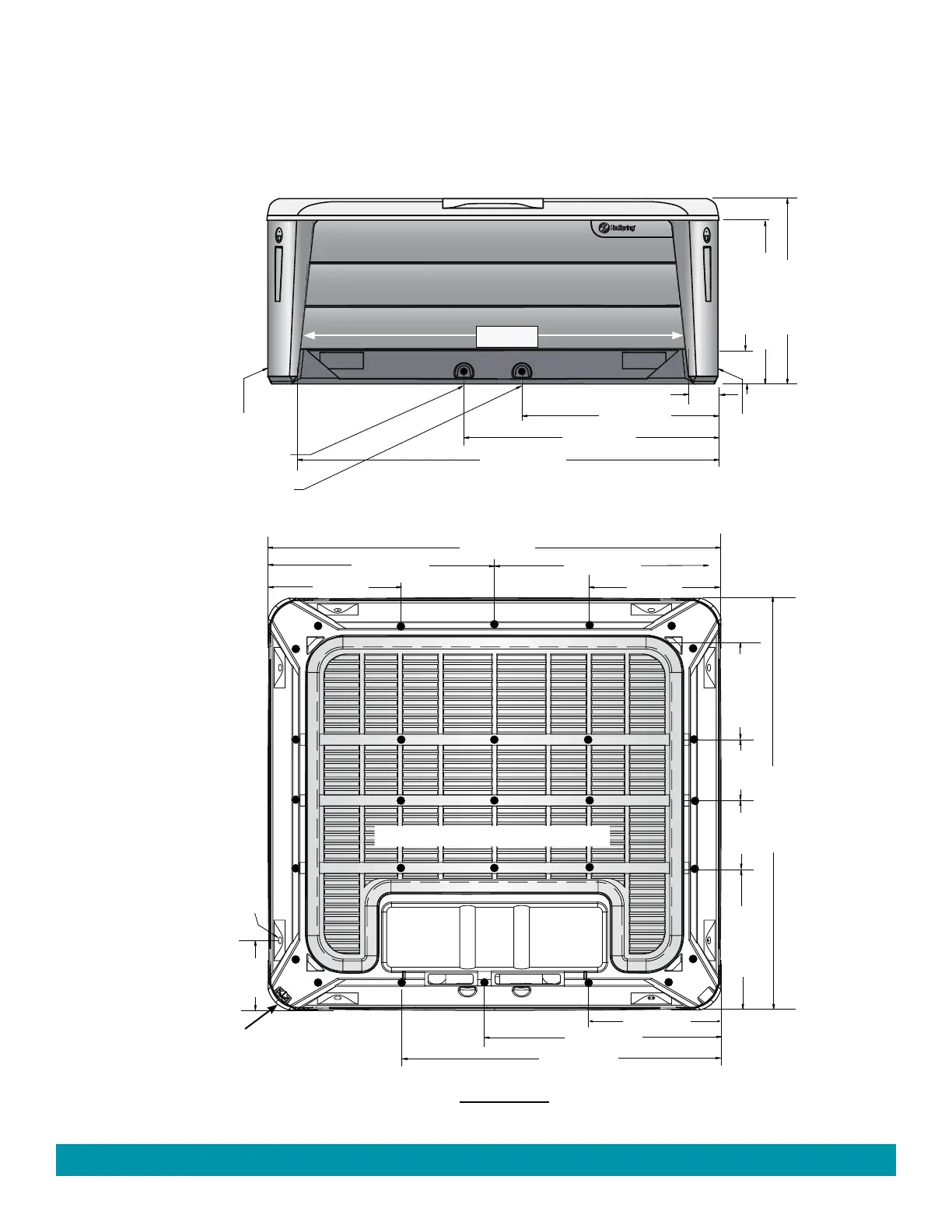

NOTE: All dimensions are approximate; measure your spa before making critical design or
pathway decisions.
DOOR SIDE
● IMPORTANT: The ENVOY has 29 leveling points ● (place shims at illustrated locations)
(Front view)
(Bottom view)
MAIN DRAIN
SECONDARY DRAIN
UPSIDE DOWN VIEW OF SPA
DOOR
Page 37
Electrical Connection (Both sides)
ELECTRICAL CONNECTION
(2.5" (6.5 cm) Height from ground)
ELECTRICAL CONNECTION
(2.5" (6.5 cm) Height from ground)
Installation Instructions
RADIUS
6.35" (16.13 cm)

HotSpring HIGHLIFE ENVOY Specifications

General

Brand	HotSpring
Model	HIGHLIFE ENVOY
Category	Hot Tub
Language	English
