SOVEREIGN

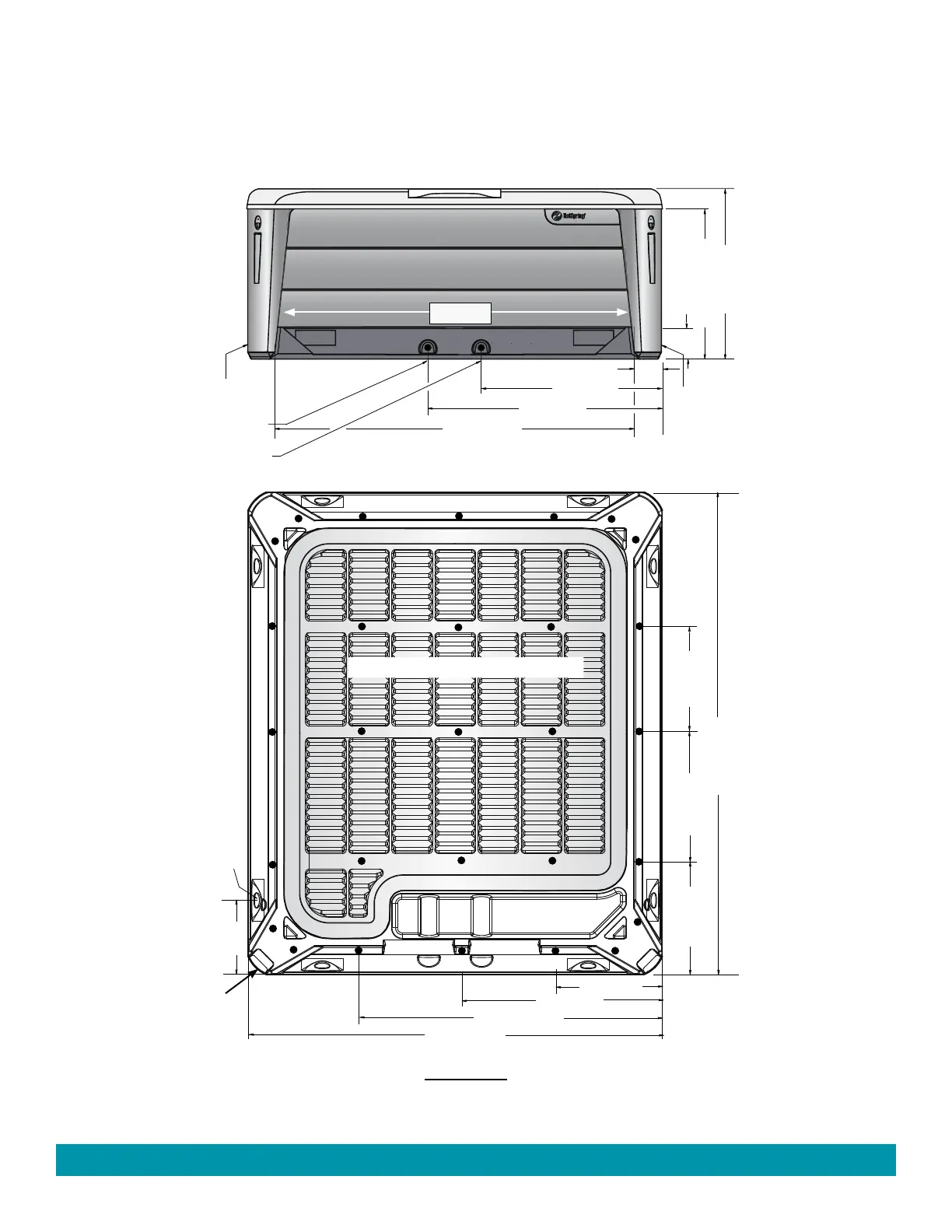

Dimensions
NOTE: All dimensions are approximate; measure your spa before making critical design or
pathway decisions.
DOOR SIDE
● IMPORTANT: The SOVEREIGN has 29 leveling points (place shims at illustrated locations)
68" (172.5 cm)
45" (114.5 cm)
7 " (17.8 cm)
29 " (74 cm)
33" (84 cm)
93" (236 cm)
24.5" (62 cm)22 " (56 cm)
20" (51 cm)
Sovereign
35" (89 cm)
6" (15.2 cm)
38" (96.5 cm)
55" (140 cm)
21" (53 cm)
80" (203 cm)
15"
(38 cm)
(Front view)
(Bottom view)
Electrical Connection (Both sides)
UPSIDE DOWN VIEW OF SPA
MAIN DRAIN
SECONDARY DRAIN
ELECTRICAL CONNECTION
(2.5" (6.5 cm) Height from ground)
ELECTRICAL CONNECTION
(2.5" (6.5 cm) Height from ground)
DOOR
Installation Instructions
Page 40
RADIUS
6.35" (16.13 cm)
