HotSpring JETSETTER LX User Manual

x Page x x
81" (205.7 cm)
52" (132.1 cm)
7 " (17.8 cm)
34 " (86.4 cm)
38" (96.5 cm)
46.5" (118 cm) 46.5" (118 cm)
91" (231.1 cm)
13"
(33 cm)
28 " (71 cm)
11.5"
(29.2 cm)
30" (76.2 cm)
93" (236.2 cm)
ENVOY
28" (71 cm)
28" (71 cm)
40" (101.6 cm)
49" (124.5 cm)
65" (165.1 cm)
28" (71.1 cm)
6" (15.2 cm)
15"
(38 cm)
81" (205.7 cm)
52" (132.1 cm)
7 " (17.8 cm)
34 " (86.4 cm)
38" (96.5 cm)
46.5" (118 cm) 46.5" (118 cm)
91" (231.1 cm)
13"
(33 cm)
28 " (71 cm)
11.5"
(29.2 cm)
30" (76.2 cm)
93" (236.2 cm)
ENVOY
28" (71 cm)
28" (71 cm)
40" (101.6 cm)
49" (124.5 cm)
65" (165.1 cm)
28" (71.1 cm)
6" (15.2 cm)
15"
(38 cm)
ENVOY

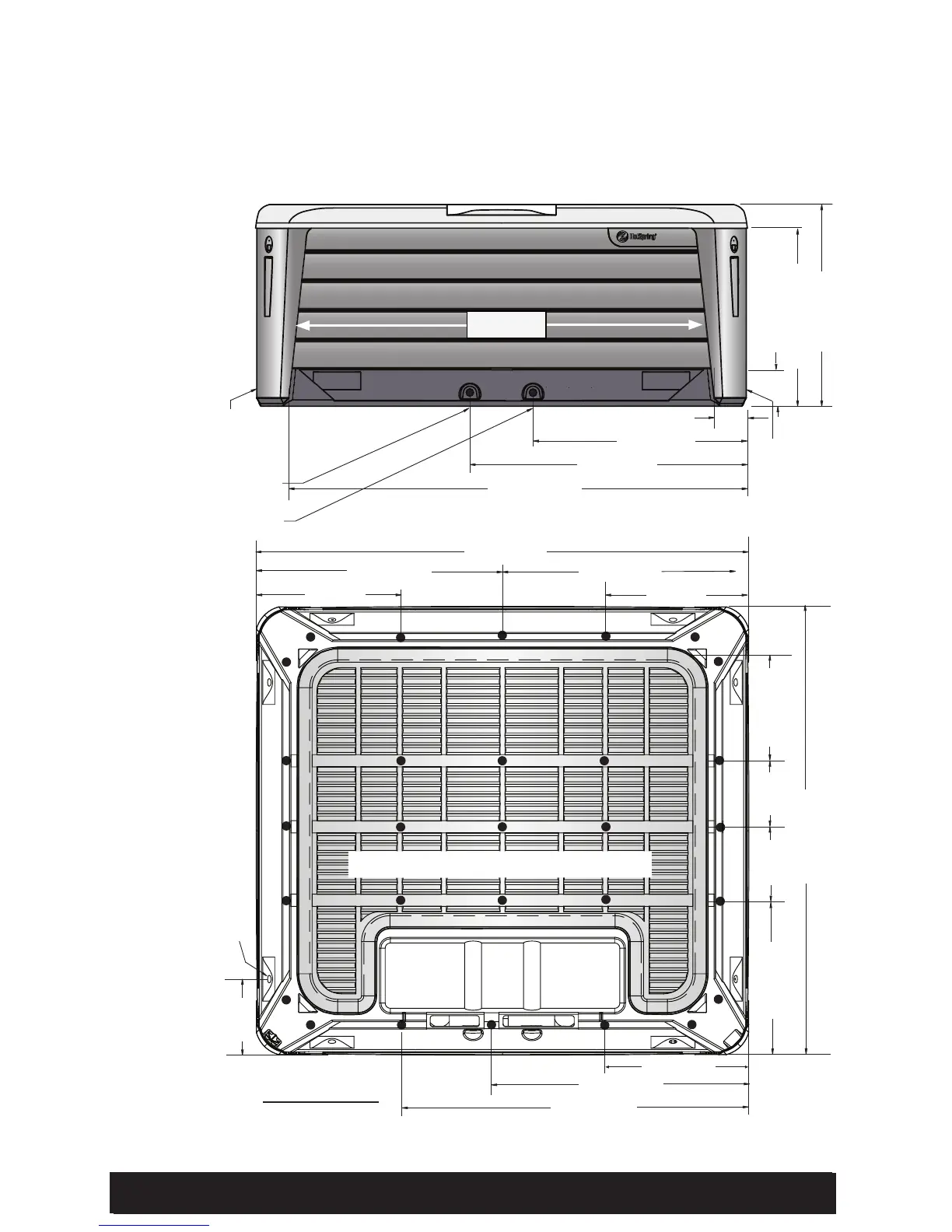

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
(Front view)
(Bottom view)
•
29 leveling points (place shims at illustrated locations).
DOOR SIDE
x Page x xPre-Delivery Instructions Page 6
MAIN DRAIN
SECONDARY DRAIN
UPSIDE DOWN VIEW OF SPA
DOOR
ELECTRICAL
CONNECTION
2.5" (6.4 cm)
Height from
ground)
ELECTRICAL
CONNECTION
2.5" (6.4 cm) Height
from ground)
Electrical Connection
(Both sides)
