Page 33
NOTE: Watkins Manufacturing Corporation recommends that the GLEAM be installed on a minimum 10 cm thick reinforced concrete pad or structurally
sound deck able to support the “dead weight” found in the spa specification chart.
WARNING: The GLEAM must not be shimmed in any manner.
GLEAM (MODEL GLME)

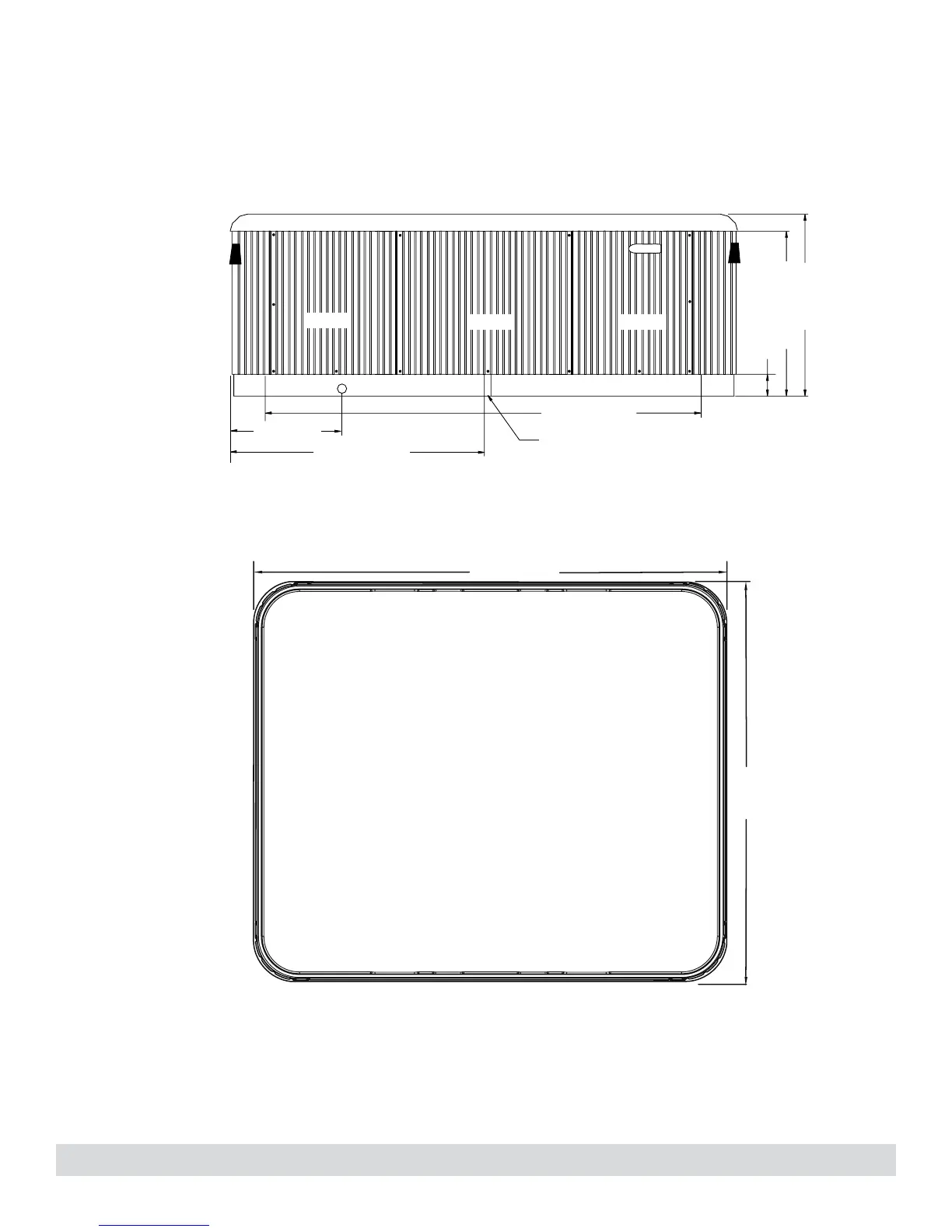

Dimensions
NOTE: All dimensions are approximate; measure your spa before making critical design or
pathway decisions.
110" (279 cm)
91"
(231cm)
3.5" (9.0 cm)
34.5" (87.5 cm)
38" (96.5 cm)
20” (51 cm)
95” ( 241.5 cm)
49.5” (125.5 cm)
Door
(Front view)
(Bottom view)
Upside Down View
of Spa
Installation Instructions
Door Door
Drain
Electrical Cutout 1 3/4" (4.5 cm)
