Hotsy 1065SS - Page 18

HOTSY 965SS-1075SS • 9.807-621.0 • Rev. 09/18
OPERATOR’S MANUAL
PRESSURE WASHER
18

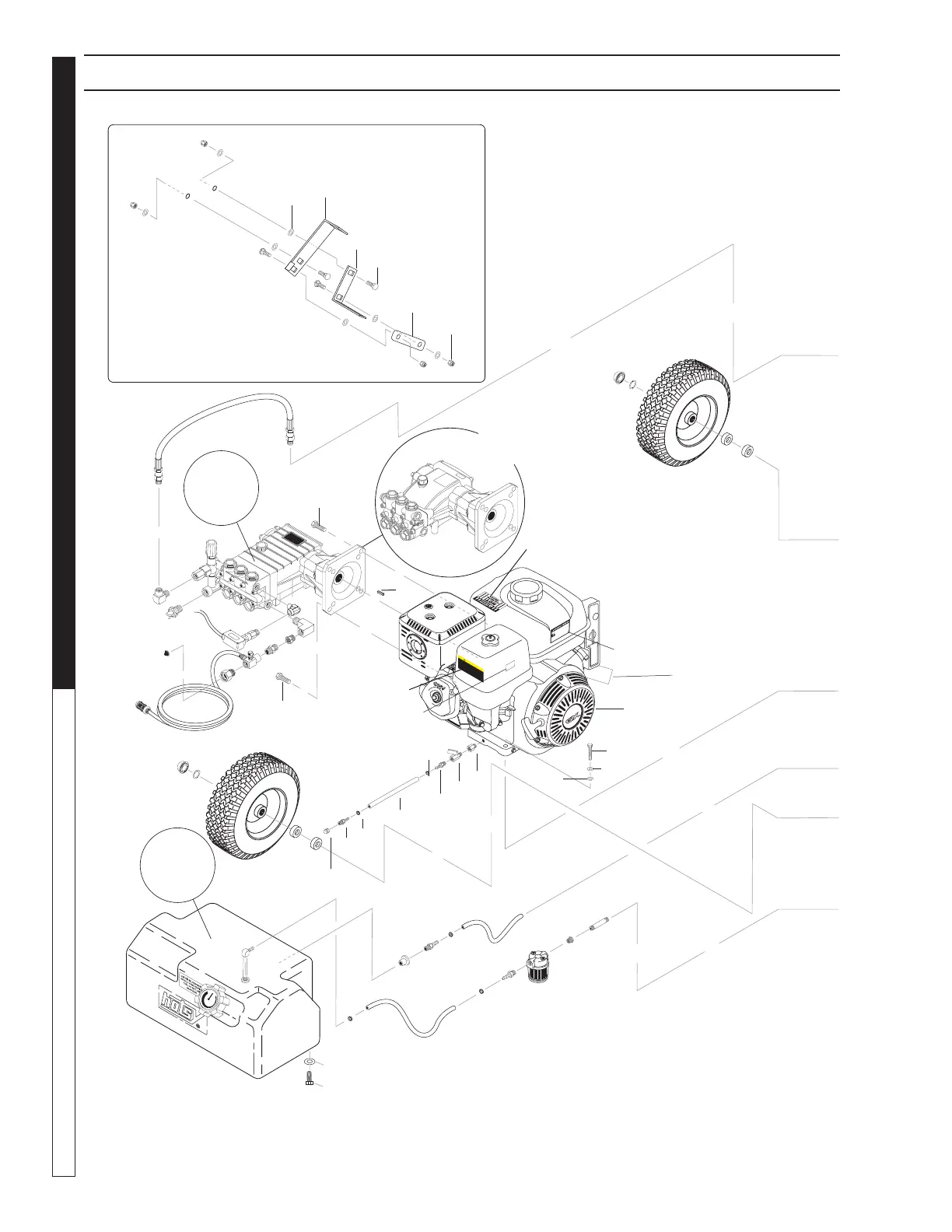

EXPLODED VIEW - LEFT SIDE
