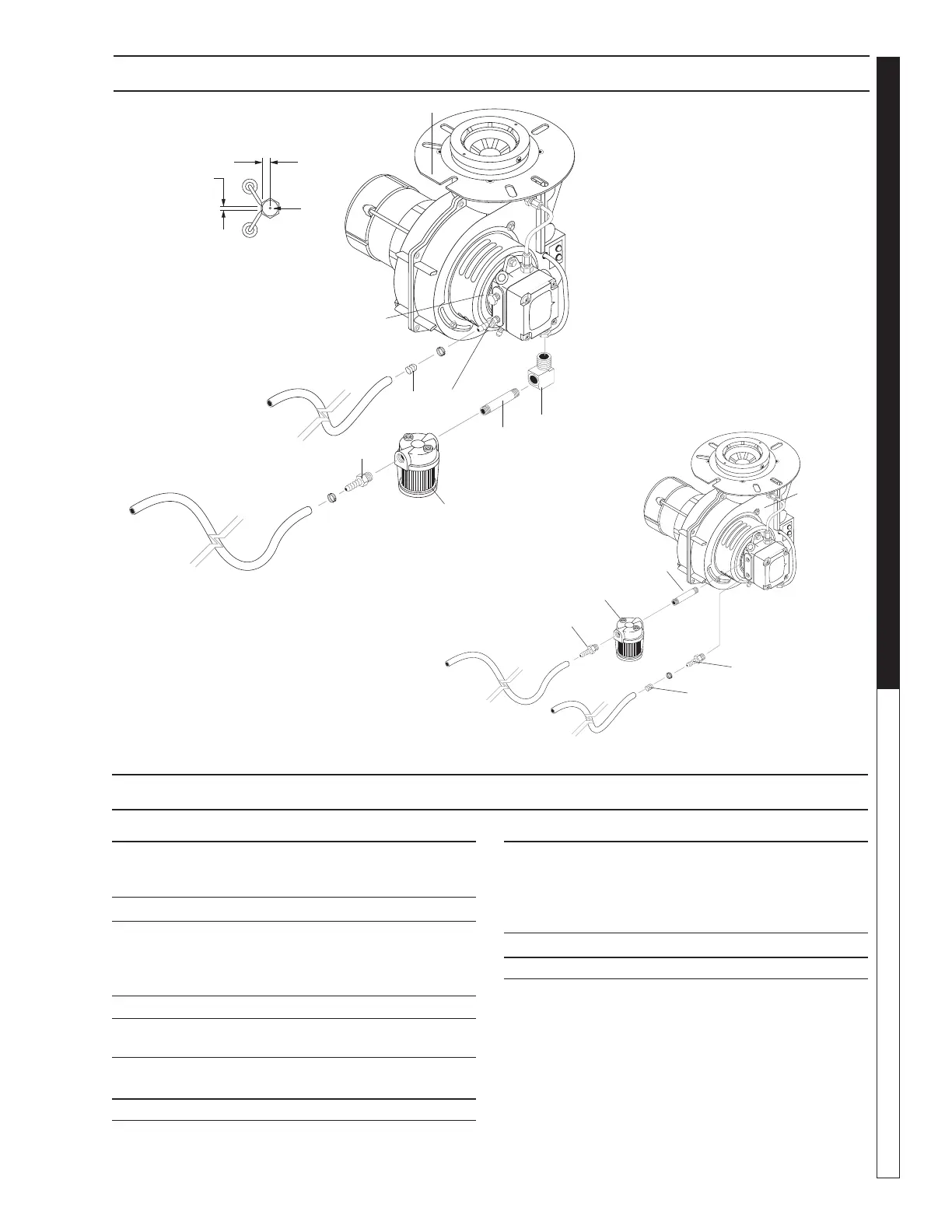

BURNER ASSEMBLY EXPLODED VIEW
BURNER ASSEMBLY PARTS LIST
1
2
3
7
4
2
85
8
Inlet From
Fuel Tank
Return to
Fuel Tank
965SS Only
4
8
5
8
6
6
ITEM PART NO. DESCRIPTION QTY
1 8.754-916.0 Fuel Nozzle, 1.50 x 90BZ
(965SS Only) 1
8.755-053.0 Fuel Nozzle, 2.00 X 90AZ 1
2 8.751-074.0 Motor 13.5V Crossre 1
3 8.756-655.0 Burner, MSR 12V 1T
12V S DC (965SS Only) 1
8.756-756.0 Burner, EHASR
12VDCDO 1T 12VDC S 1
4 8.706-803.0 Nipple, 1/4 x 2-1/2, Brass 1
5 8.754-953.0 Check Valve, 1 way, 1
1/4" barb
6 8.757-652.0 Filter Fuel Hotsy 1
1/4" female
7 8.706-827.0 Elbow, 1/4" Street 1
ITEM PART NO. DESCRIPTION QTY
8 8.706-941.0 Hose Barb, 1/4" Barb x 1/4" 2
Mpt, Brass
8.751-073.0 sCoupling Crossre 1
8.751-072.0 sBlower Fan Crossre 1
9.802-514.0 sStrain Relief 1
REPLACEMENT PARTS
8.717-711.0 Screen, Fuel Filter 1
sNot Shown
