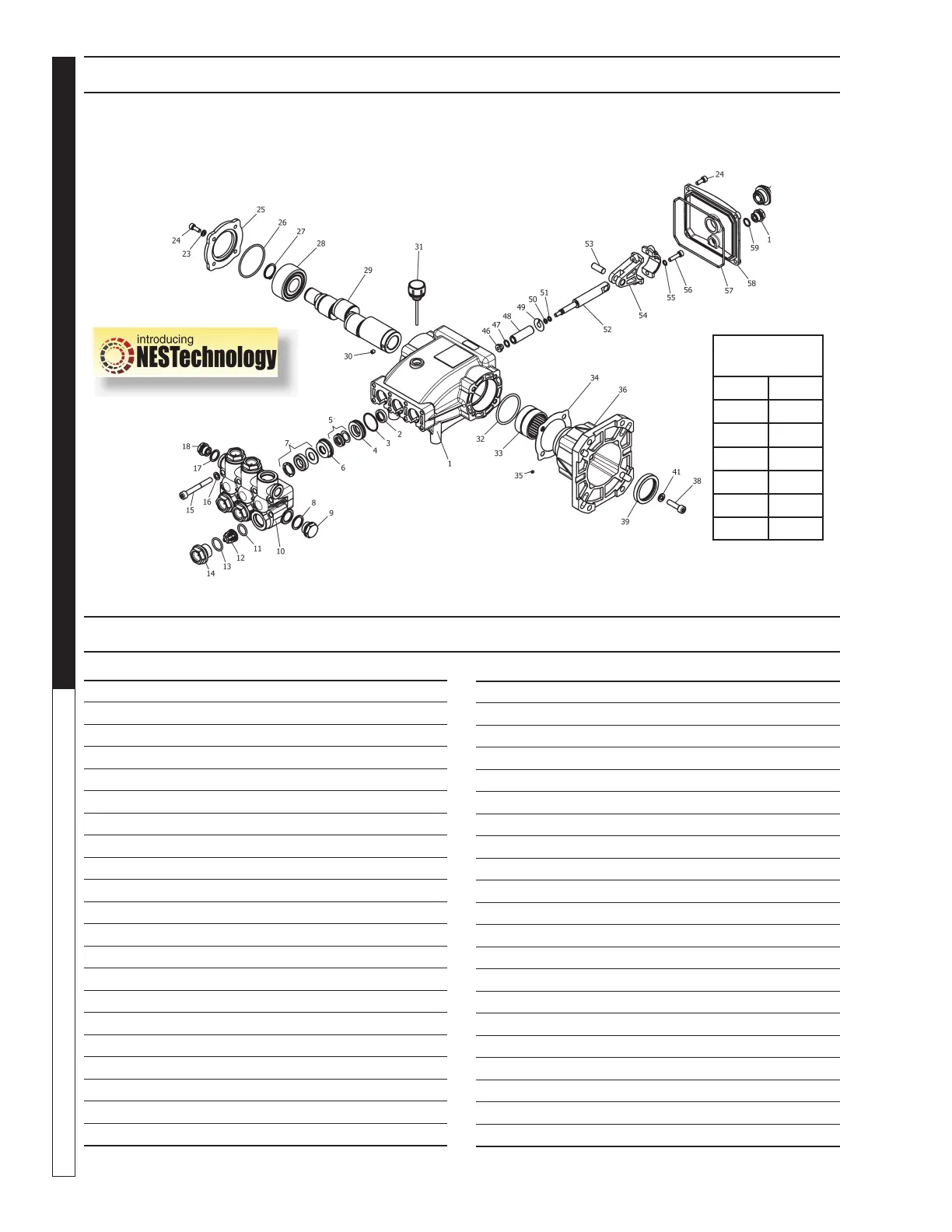

Hotsy 1065SS - HS.3 Pump Exploded View and Parts List

HOTSY 965SS-1075SS • 9.807-621.0 • Rev. 09/18
OPERATOR’S MANUAL
PRESSURE WASHER
32
HS.3 PUMP EXPLODED VIEW PARTS LIST
TORQUE
SPECS
Item # Ft.-lbs
14 75
15 30
24 7.6
38 10
46 7
56 13
8.751-184.0 HS4040G.3
8.751-183.0 HS3040G.3
ITEM PART NO. DESCRIPTION QTY
1 8.751-217.0 Crankcase 1
2* See Kit Below Plunger Oil Seal 3
3* See Kit Below O-Ring Ø1.78 x 31.47 3
4* See Kit Below Pressure Ring 3
5* See Kit Below U-Seal, 15mm 3
6* See Kit Below Intermed. Ring 15mm 3
7* See Kit Below U-Seal, 15mm 3
8 9.803-199.0 Copper Washer 1/2" 1
9 9.802-926.0 Brass Plug, 1/2" 1
10 8.751-218.0 Manifold Housing 1
11* 9.803-191.0 O-Ring Ø2.62 x 17.13 6
12* See Kit Below Valve Assembly 6
13* 9.803-193.0 O-Ring Ø2.62 x 20.29 6
14 9.802-928.0 Valve Plug 6
15 9.802-938.0 Manifold Stud Bolt 8
16 9.802-884.0 Washer 8
17 9.803-198.0 Copper Washer 3/8" 1
18 9.802-925.0 Brass Plug 3/8" 2
23 9.803-201.0 Washer, M6 x 16 4
24 9.802-939.0 Hexagonal Screw 9
25 9.803-184.0 Closed Bearing Housing 1
ITEM PART NO. DESCRIPTION QTY
26 8.717-225.0 O-Ring Ø 2.62 x61.6 1
27 9.802-914.0 Snap Ring 1
28 9.803-168.0 Double Row Ball Bearing 1
29 9.803-150.0 Crankshaft (3040G.3) 1
9.803-151.0 Crankshaft (3540G.3) 1
9.803-152.0 Crankshaft (4040G.3) 1
9.803-153.0 Crankshaft (5030G.3) 1
30 9.802-945.0 Set Screw 1
31 9.802-921.0 Oil Dip Stick 1
32 9.804-581.0 O-Ring Ø 3.53 x 55.56 1
33 9.803-161.0 Needle Roller Bearing 1
34 8.751-230.0 Gasket 1
35 8.717-544.0 Screw, Set 1
36 9.803-183.0 Engine Flange 1
38 9.803-240.0 Flange Screw 4
39 9.803-142.0 Crankshaft Seal 1
41 9.803-221.0 Spring Washer 4
46* See Kit Below Plunger Nut, M6 3
47* See Kit Below Washer, Copper, 9.2 x 13.5 3
48* See Kit Below Plunger, 15mm 3
49* See Kit Below Copper Spacer 3
HS.3 PUMP EXPLODED VIEW
