Hotsy 1075BE - Control Box Exploded View and Parts List

Hotsy Gas Belt Drive • 8.931-236.0 • REV. 7/13
OPERATOR’S MANUAL
PRESSURE WASHER
22
89312360-12

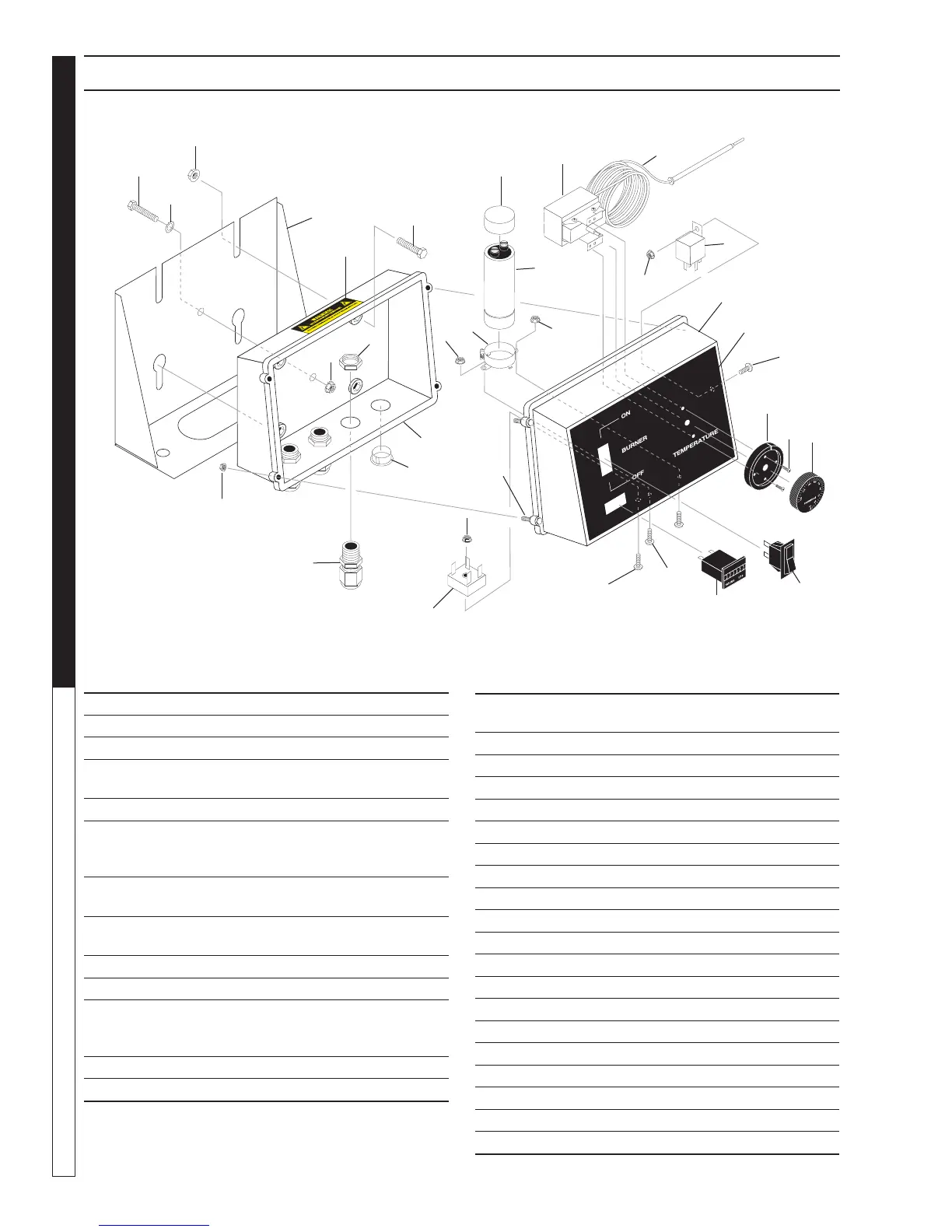

CONTROL BOX EXPLODED VIEW AND PARTS LIST
1
22
4
33
3
7
5
6
6
21
23
9
8
13
14
18
19
20
16
15
12
10
11
ITEM PART NO. DESCRIPTION QTY
1 9.800-016.0 Label, Disconnect Power Supply 1
2 9.802-700.0 Bolt, 1/4" x 3/4" NC HH 4
3 9.802-480.0 Back Box 1
4 9.802-514.0 Strain Relief, Strt LQ Tite
3231 Small 3
5 8.750-095.0 Thermostat, 2 Meter 1
6 9.802-695.0 Nut, 10-32" Keps (1080BE,
1075BE) 2
(965B) 1
7 9.802-530.0 Rectifier, Bridge
(1080BE, 1075BE) 1
8 9.802-470.0 Relay, 12V (965 B) 1
9.802-471.0 Relay, 24V (1075BE, 1080BE) 1
9 8.719-947.0 Box, Plastic, Front, 2 Sq Holes 1
10 8.900-924.0 Label, 1200SSG, Control Box 1
11 9.802-771.0 Screw, 10/32" x 3/4" BH SOC CS
(1080BE, 1075BE) 2
(965B) 1
12 9.802-283.0 Hour Meter 1
13 8.716-036.0 Switch, Rocker, 15A/12V, LT 1
17
6
ITEM PART NO. DESCRIPTION QTY
14 8.712-190.0 Plate, Thermostat Plastic
Cover Hotsy 1
15 8.718-779.0 Screw, 4mm x 6mm, Pan Head 2
16 8.750-097.0 Knob, Thermostat 1
17 9.802-525.0 Locknut, 1/2" 3
18 9.802-775.0 Nut, 1/4" Flange, ZN 4
19 8.716-611.0 Conduit, Flexo, 1/2 Blk 48 in
20 9.803-250.0 Nut (Electrical Box) 4
21 9.803-249.0 Screw, M4 x 10 (Electrical Box) 4
22 8.706-745.0 Plug, Plastic 0.812 1
23 8.931-208.0 Bracket, Control Box Mount 1
24 8.716-223.0  Holder, Fuse 1
25 8.716-206.0  Fuse, ATC 30 Amp 1
26 9.803-048.0 Cap, Capacitor (9 HP Only) 1
27 9.802-528.0 Capacitor (9 HP Only) 1
28 9.802-529.0 Bracket, Capacitor (9 HP Only) 1
29 9.802-762.0 Screw, 10/32" x 1-1/4" 1
30 8.719-012.0 Washer, 10/23" Star 1
31 9.802-695.0 Nut, 10/32" 1
32 9.802-748.0 Screw, 6/32" x 3/8" 2
33 9.802-784.0 Nut, 6-32 Keps 2
 Not Shown
27
26
2
29
30
31
28
11
32
