Hotsy 1075BE - Burner Exploded View and Parts List

Hotsy Gas Belt Drive • 8.931-236.0 • REV. 7/13
OPERATOR’S MANUAL
PRESSURE WASHER
24
89312360-10

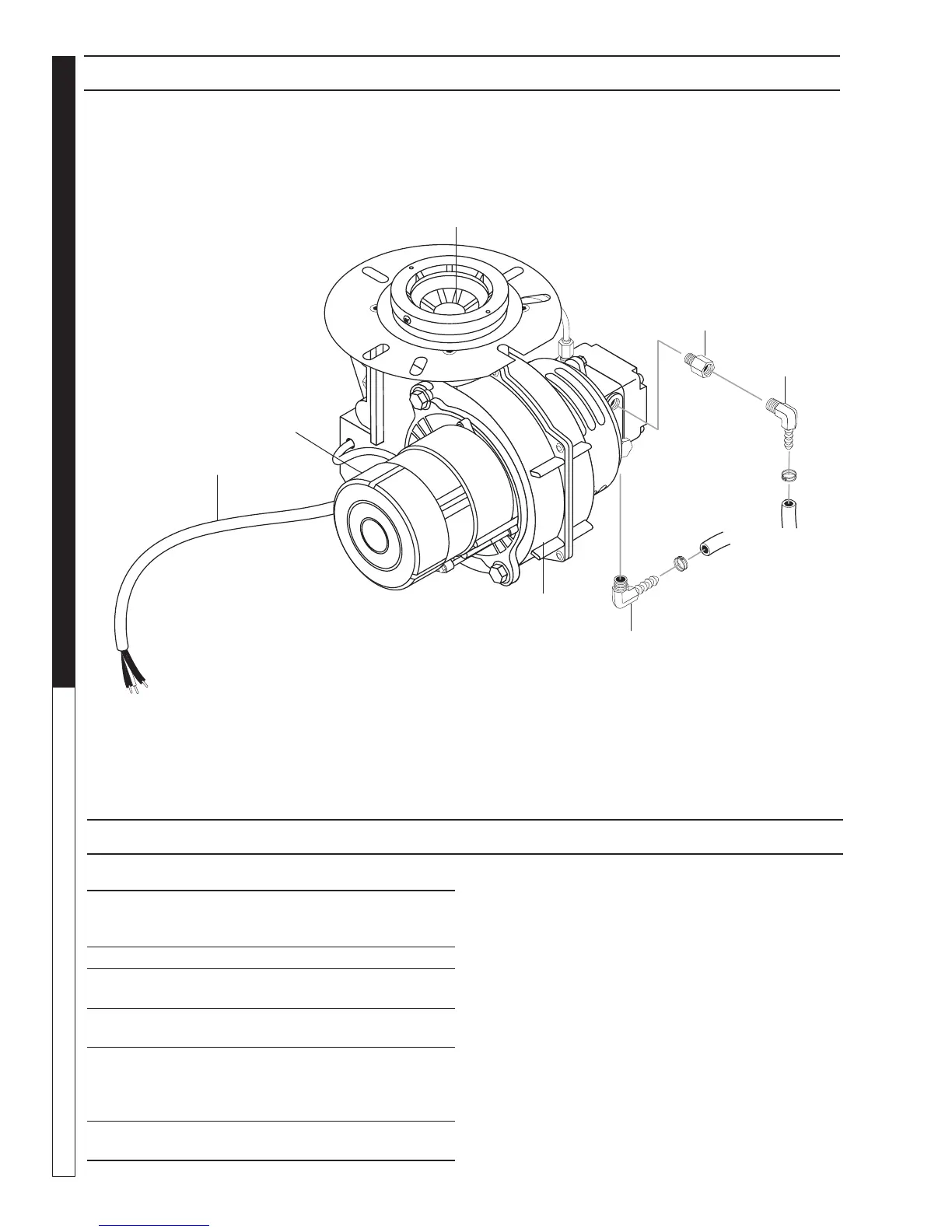

BURNER EXPLODED VIEW
BURNER EXPLODED VIEW PARTS LIST
6
5
1
4
ITEM PART NO. DESCRIPTION QTY
1 8.918-911.0 Burner, Crossfire 12VDC
(1080BE, 1075BE) 1
8.918-910.0 Burner, Crossfire 12VDC (965B) 1
2 8.706-996.0 Adapter, 1/4" x 1/4" 1
3 9.802-428.0 Cord, Service SJOWA,
12/3/Ft Colemen 63"
4 9.802-519.0 Strain Relief, 1/2" Metal,
Two Screw 1
5 8.717-273.0 Fuel Nozzle 2.00 x 90° B
(1080BE, 1075BE) 1
8.717-346.0 Fuel Nozzle 1.75 x 90° A
(965B) 1
6 8.706-958.0 Hose Barb, 90°,
1/4" Barb x 1/4" Pipe 2
3
2
6
To Fuel Tank
To Filter
