Hotsy 1075BE - Coil Outlet Exploded View and Parts List

Hotsy Gas Belt Drive • 8.931-236.0 • REV. 7/13
23
PRESSURE WASHER
OPERATOR’S MANUAL

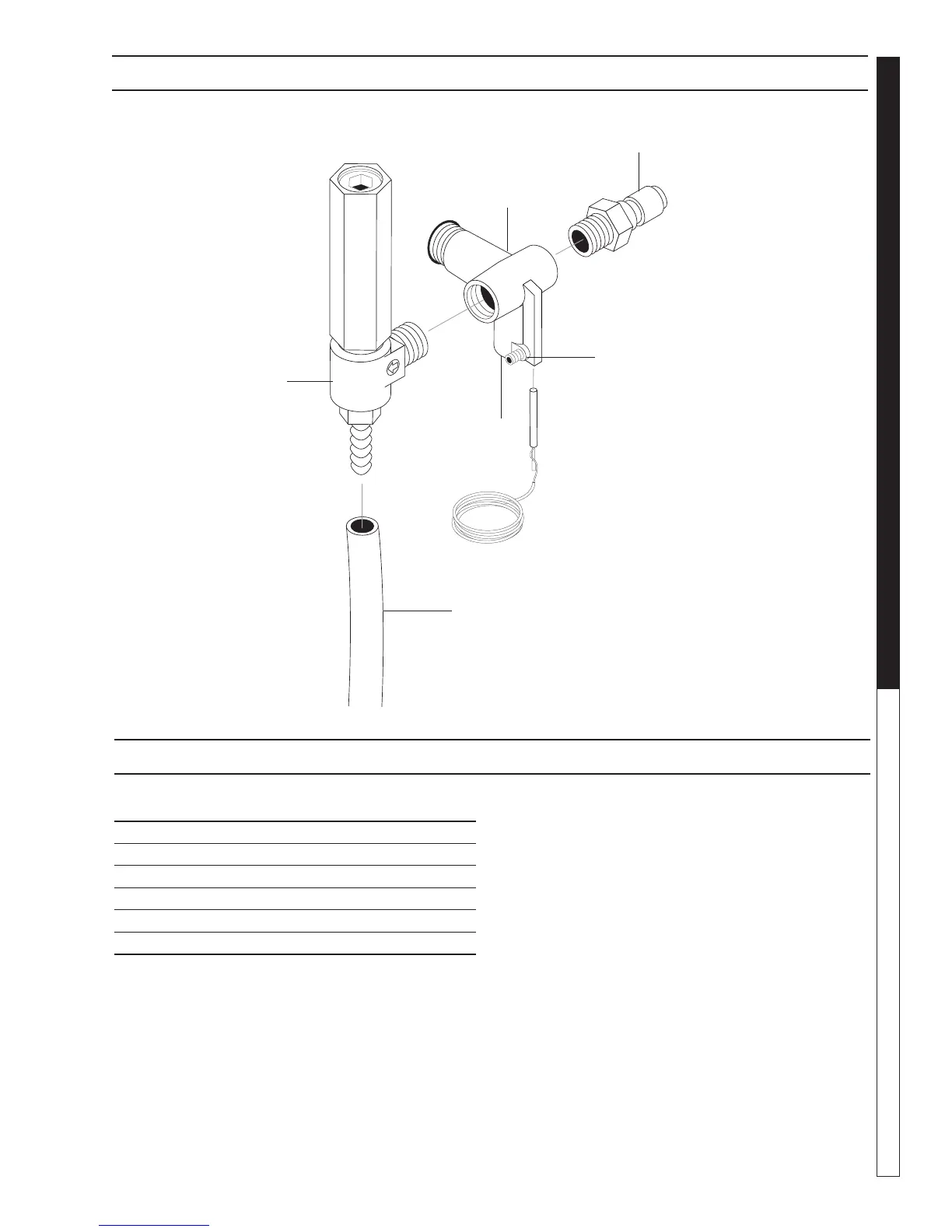

COIL OUTLET EXPLODED VIEW
89312360-11
COIL OUTLET PARTS LIST
3
5
4
1
2
ITEM PART NO. DESCRIPTION QTY
1 9.148-003.0 Manifold Coil Outlet Discharge 1
2 9.196-012.0 Screw, 10-24 x 1/4" Hex Set 1
3 8.902-433.0 Valve, Safety Relief, VSA 1
4 9.802-171.0 Nipple, 3/8" x 3/8" NPT ST Male 1
5 8.706-248.0 Plug, 3/8" Allen Counter Sunk 1
6 8.711-785.0 Hose, 3/8" Push on 43"
