Hotsy Gas Belt Drive • 8.931-236.0 • REV. 7/13
25
PRESSURE WASHER
OPERATOR’S MANUAL

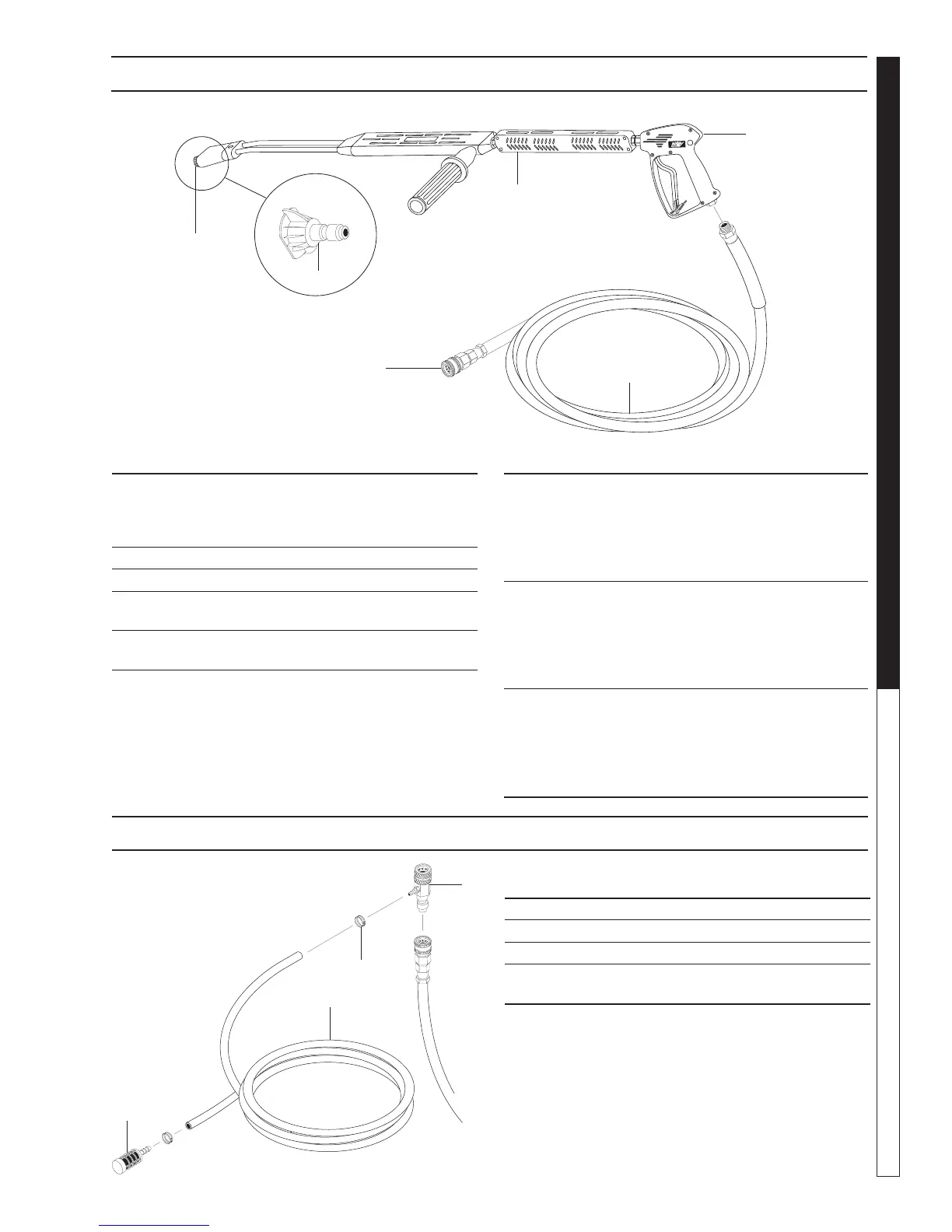

HOSE & SPRAY GUN EXPLODED VIEW AND PARTS LIST
DOWNSTREAM INJECTOR EXPLODED VIEW & PARTS LIST
89312360-13
5
1
4
2
3
6
ITEM PART NO. DESCRIPTION QTY
1 8.739-011.0 Hose, 3/8 x 50', 1W, TS, Hotsy,
SO x SW (965B) 1
8.739-054.0 Hose, 3/8 x 50', 2W, TS, Hotsy,
SOxSW (1080BE, 1075BE) 1
2 9.802-222.0 Wand, VP w/Cplr 1
3 9.802-164.0 Coupler, 1/4" Female, Brass 1
4 8.751.235.0 Gun, Hotsy, H1050, 5000 PSI
10.4 GPM 1
5 9.802-166.0 Coupler, 3/8" Female, Brass 1
9.802-100.0 O-Ring Replacement 1
ITEM PART NO. DESCRIPTION QTY
6 8.712-337.0 Nozzle, SAQCMEG, 0003.5 Red
(965B) 1
8.712-338.0 Nozzle, SAQCMEG, 1503.5 Yellow
(965B) 1
8.712-340.0 Nozzle, SAQCMEG 4003.5 White
(965B) 1
8.712-345.0 Nozzle, SAQCMEG, 0004, Red
(1075BE) 1
8.712-346.0 Nozzle, SAQCMEG, 1504 Yellow
(1075BE) 1
8.712-348.0 Nozzle, SAQCMEG, 4004, White
(1075BE) 1
8.712-353.0 Nozzle, SAQCMEG, 0005, Red
(1080BE) 1
8.712-354.0 Nozzle, SAQCMEG, 1505, Yellow
(1080BE) 1
8.712-356.0 Nozzle, SAQCMEG, 4005 White,
(1080BE) 1
89312360-16
ITEM PART NO. DESCRIPTION QTY
1 9.802-216.0 Injector, Chem, Non Adj 1
2 6.390-126.0 Clamp Hose, .46-,.54 ST 2
3 9.802-251.0 Tube, 1/4" x 1/2", Clear Vinyl 72"
4 8.707-057.0 Strainer, Plastic, 1/4"
Hose Barb 1
1
2
3
4
