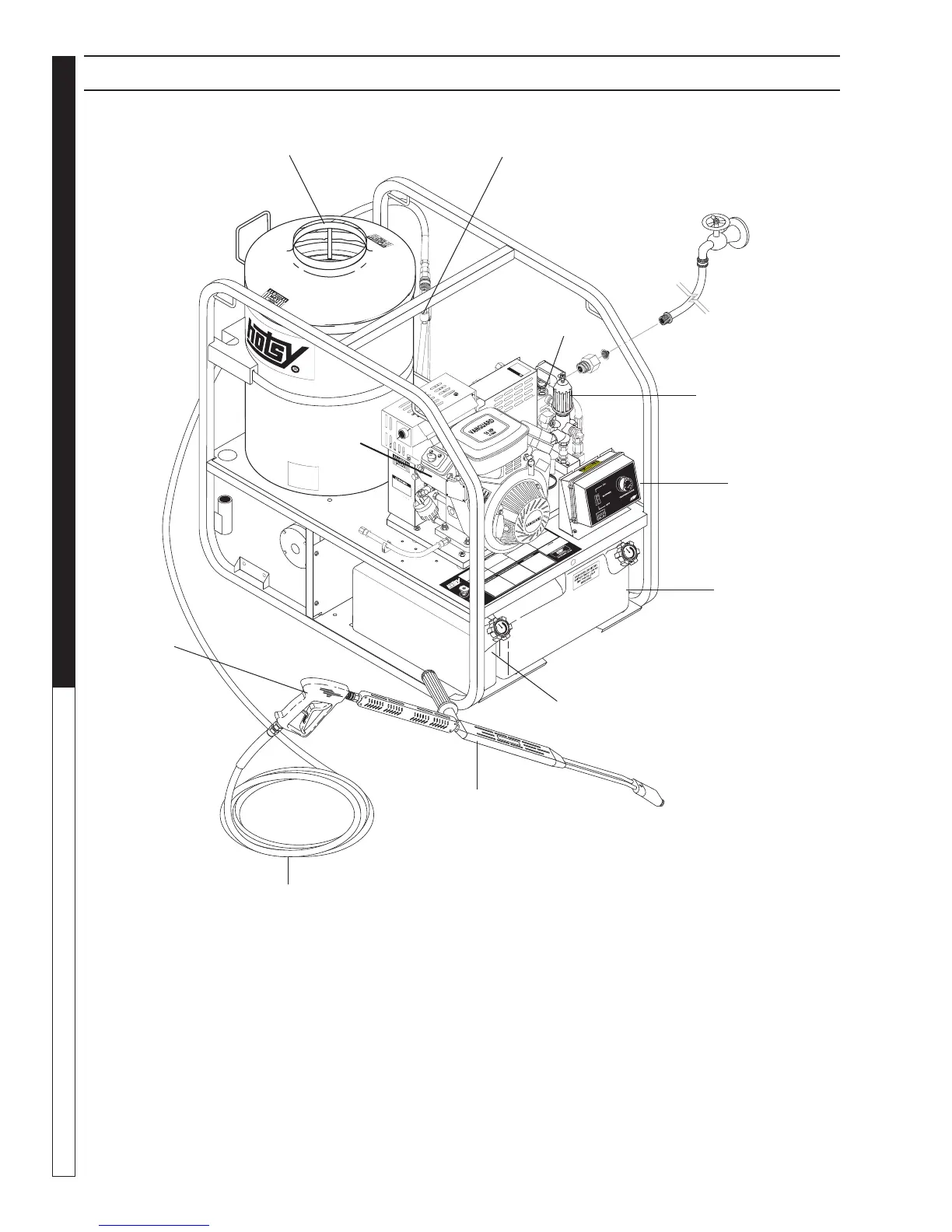

COMPONENT IDENTIFICATION
Pump — Delivers a specific gpm to the high pressure
nozzle which develops pressure.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Wand — Must be connected to the spray gun.
High Pressure Hose — Connect one end to water
pump high pressure discharge nipple and the other
end to spray gun.
Unloader Valve — Safety device which, when the
spray gun closes, prevents over pressurization.
Burner
Exhaust
Relief
Valve
Engine
Pump
Unloader
Valve
Control Box
Fuel Oil
Tank
Gasoline
Tank
High
Pressure
Hose
Spray
Gun
Spray Wand
