Hotsy 797SS - Burner Assembly & Parts List

Manual Hotsy, 700 Series • 9.808-301.0
OPERATOR’S MANUAL
PRESSURE WASHER
22

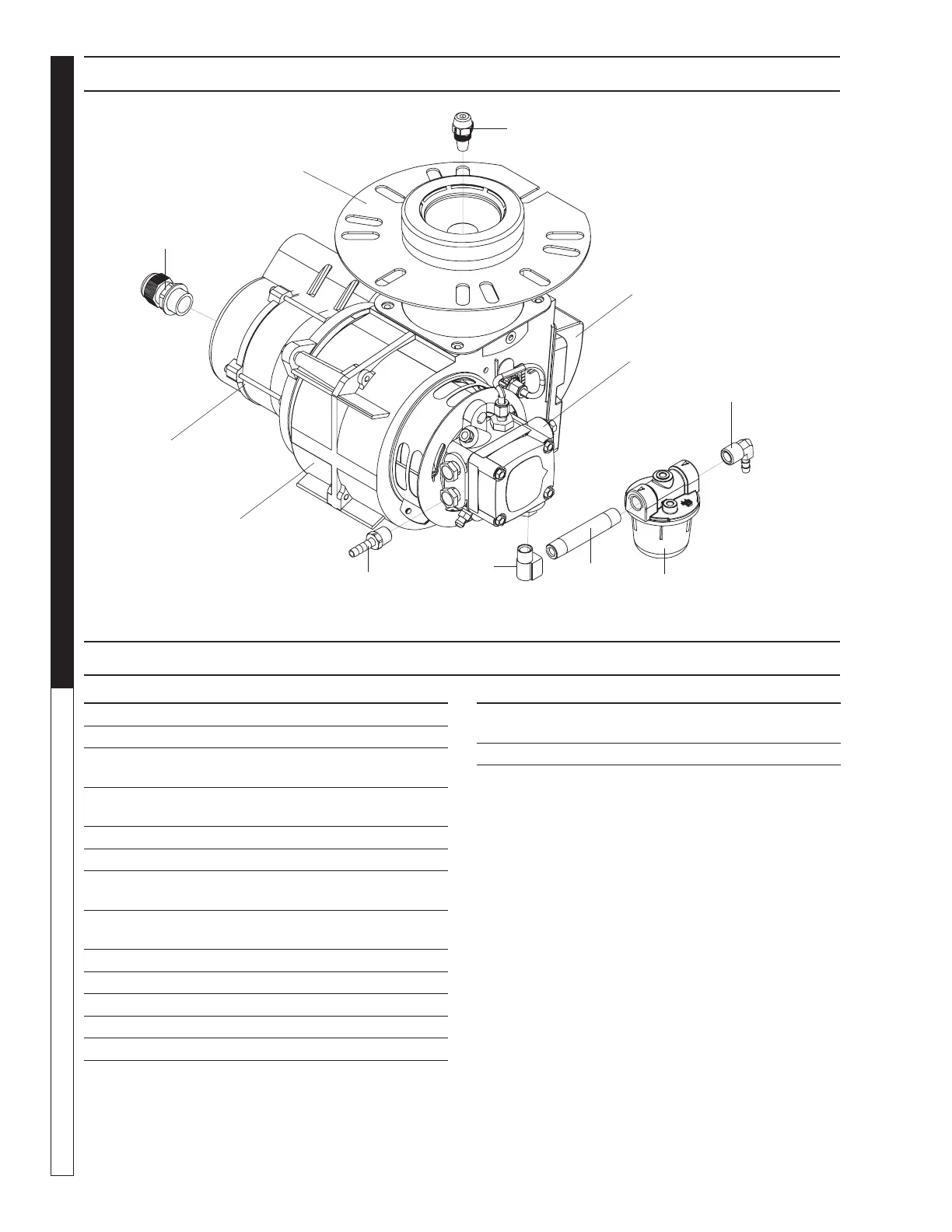

BURNER ASSEMBLY
BURNER PARTS LIST
1
9
11
12
4
8
2
ITEM PART NO. DESCRIPTION QTY
1 8.755-610.0 Fuel Nozzle, 1.75 X 80az 1
2 8.757-198.0 Elbow, 1/4" Street, Brass 1
3 8.757-199.0 Hose Barb, 1/4" Barb X
1/4" M-Nptf, Brass 1
4 8.757-205.0 Hose Barb, 1/4" Barb X
1/4" M-Nptf, 90° 1
5 8.757-366.0 Nipple, 1/4" X 3", W/Slnt 1
6 8.757-652.0 Filter Fuel Hotsy 1/4" Female 1
7 8.759-576.0 Burner Afg 230v 60hz
24v F16 1
8 9.802-514.0 Strain Relief, Lt, Str,
1/2 Npt,.23-.45d 1
9 8.700-794.0 Coil 12/24V with out cord 1
10 9.802-635.0 Motor burner 230V 1
11 9.802-661.0 Ignitor transformer 1
12 8.717-899.0 Gasket 1
13 9.802-649.0 ▲ Blower wheel 1
REPLACEMENT PARTS KITS
* 9.802-562.0 Fuel pump, 24V Solenoid
& fuel line kit 1
* 9.802-668.0 Electrodes assembly kit 1
1
5
6
3
7
10
▲ Not shown
