Hotsy 797SS - Fuel Tank Assembly & Parts List

Manual Hotsy, 700 Series • 9.808-301.0
23
PRESSURE WASHER
OPERATOR’S MANUAL

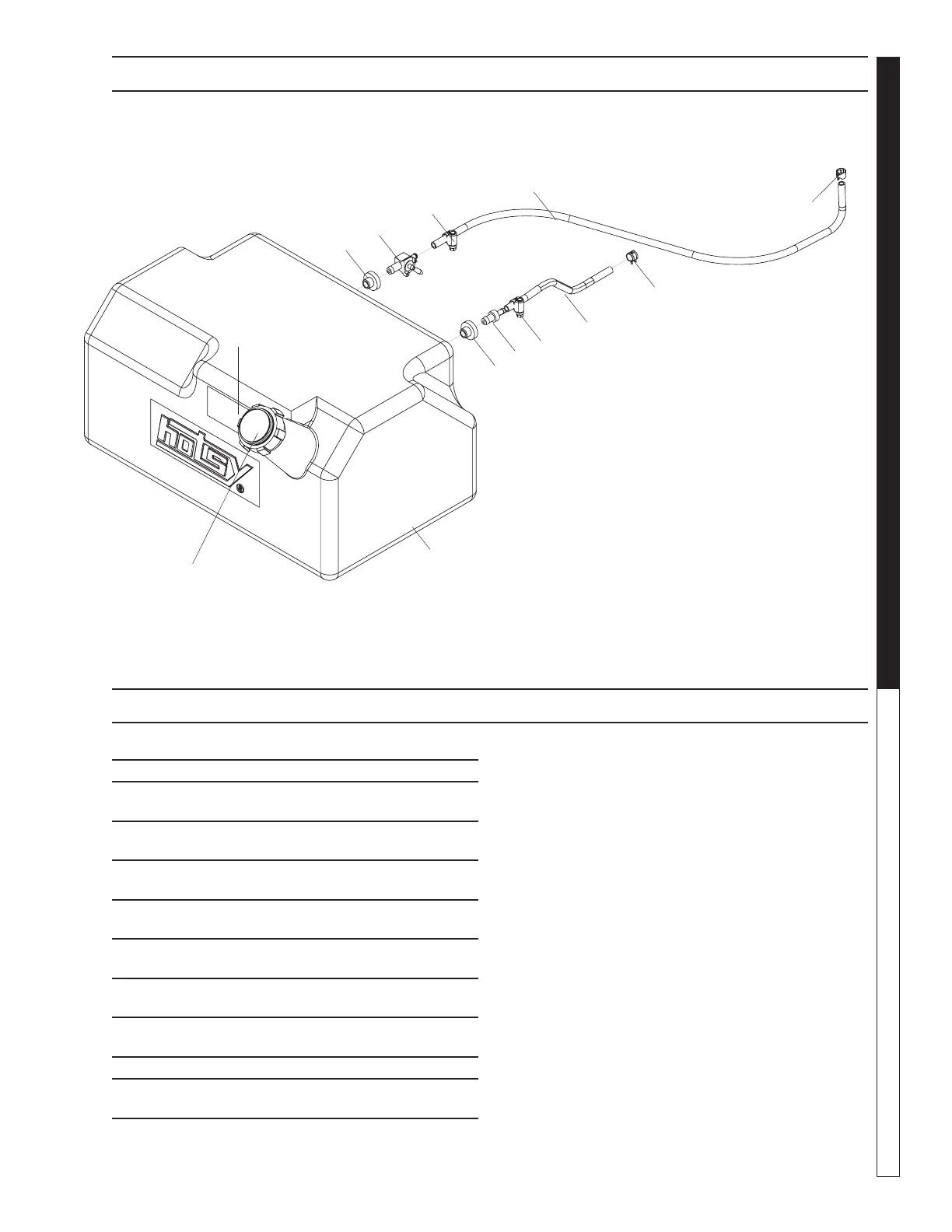

FUEL TANK ASSEMBLY
4
4
2
10
9
5
3
7
1
6
3
8
1
ITEM PART NO. DESCRIPTION QTY
1 6.390-126.0 Clamp Hose 2
2 8.706-614.0 Tank, Fuel, 8-Gal Hotsy
(952733)X-Linked 1
3 8.750-933.0 Band Hose Clamp,
Hose Id 1/8" - 5/16" 2
4 9.802-053.0 Bushing, Fuel Line,
Rubber 2
5 9.802-141.0 Hose Barb, 1/4' Barb
X 3/8' Barb, Dou 1
6 9.802-177.0 Valve, 1/4' Shut-Off,
180 Deg 1
7 9.802-254.0 Hose, 1/4" Push-On, /Ft 15"
(Burner Out)
8 9.802-254.0 Hose, 1/4" Push-On, /Ft 26"
(Burner Inlet)
9 9.803-535.0 Cap With Fuel Display 14" 1
10 8.757-732.0 Label Caution Diesel
Type 1
FUEL TANK PARTS LIST
