Manual Hotsy, 700 Series • 9.808-301.0
OPERATOR’S MANUAL
PRESSURE WASHER
26

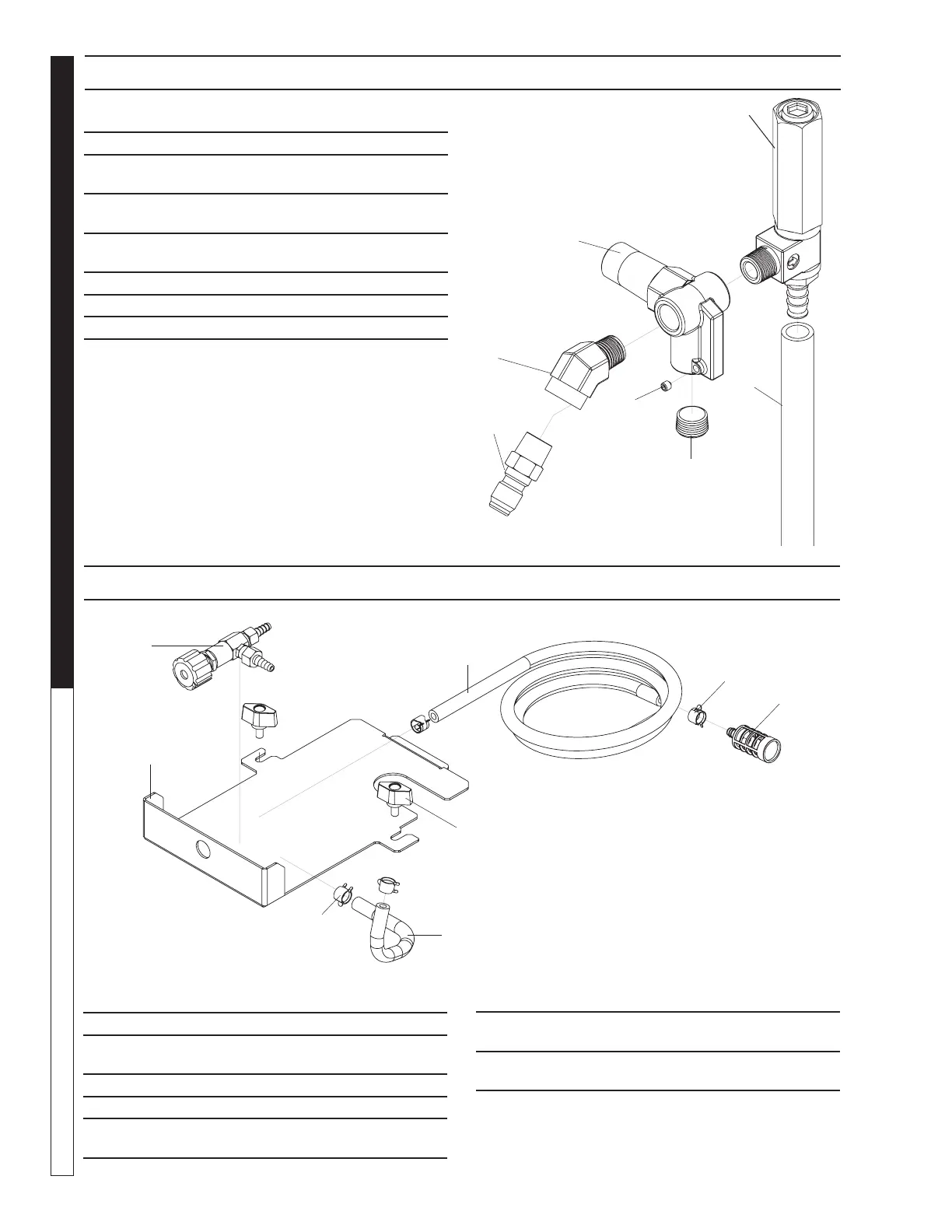

DETERGENT VALVE ASSEMBLY AND PARTS LIST
COIL OUTLET ASSEMBLY AND PARTS LIST
1
5
4
3
6
7
5
2
1
1
3
6
2
7
4
ITEM PART NO. DESCRIPTION QTY
1 8.707-152.0 Nipple, 3/8", Male, Ssteel 1
2 8.711-785.0 Hose, 3/8" Push On,
Per Ft 3 ft
3 8.757-240.0 Manifold Coil Outlet
Discharge W/Slnt 1
4 8.757-241.0 Plug 3/8 Nptf Allen
Counter Sunk W/Slnt 1
5 8.757-551.0 Elbow Street Steel 3/8" 45 1
6 8.902-433.0 Valve, Safety Relief Vsa 1
7 9.196-012.0 Screw, 10-24 X 1/4" Hex Set 1
ITEM PART NO. DESCRIPTION QTY
1 6.390-126.0 Clamp Hose 4
2 8.707-057.0 Strainer, Plastic, 1/4",
Hose Barb 1
3 8.930-033.0 Mounting Bracket Injector 1
4 9.802-188.0 Valve, Metering, 1/4 Hose 1
5 9.802-252.0 Hose, 1/4" X 1/2", Braided
Vinyl, /Ft 7.5"
ITEM PART NO. DESCRIPTION QTY
6 9.802-252.0 Hose, 1/4" X 1/2", Braided
Vinyl, /Ft 84"
7 9.802-746.0 Screw, 1/4-20 X 1/2",
Thumb 2
