Hotsy 797SS - Pump Assembly & Parts List 700 Series

Manual Hotsy, 700 Series • 9.808-301.0
25
PRESSURE WASHER
OPERATOR’S MANUAL

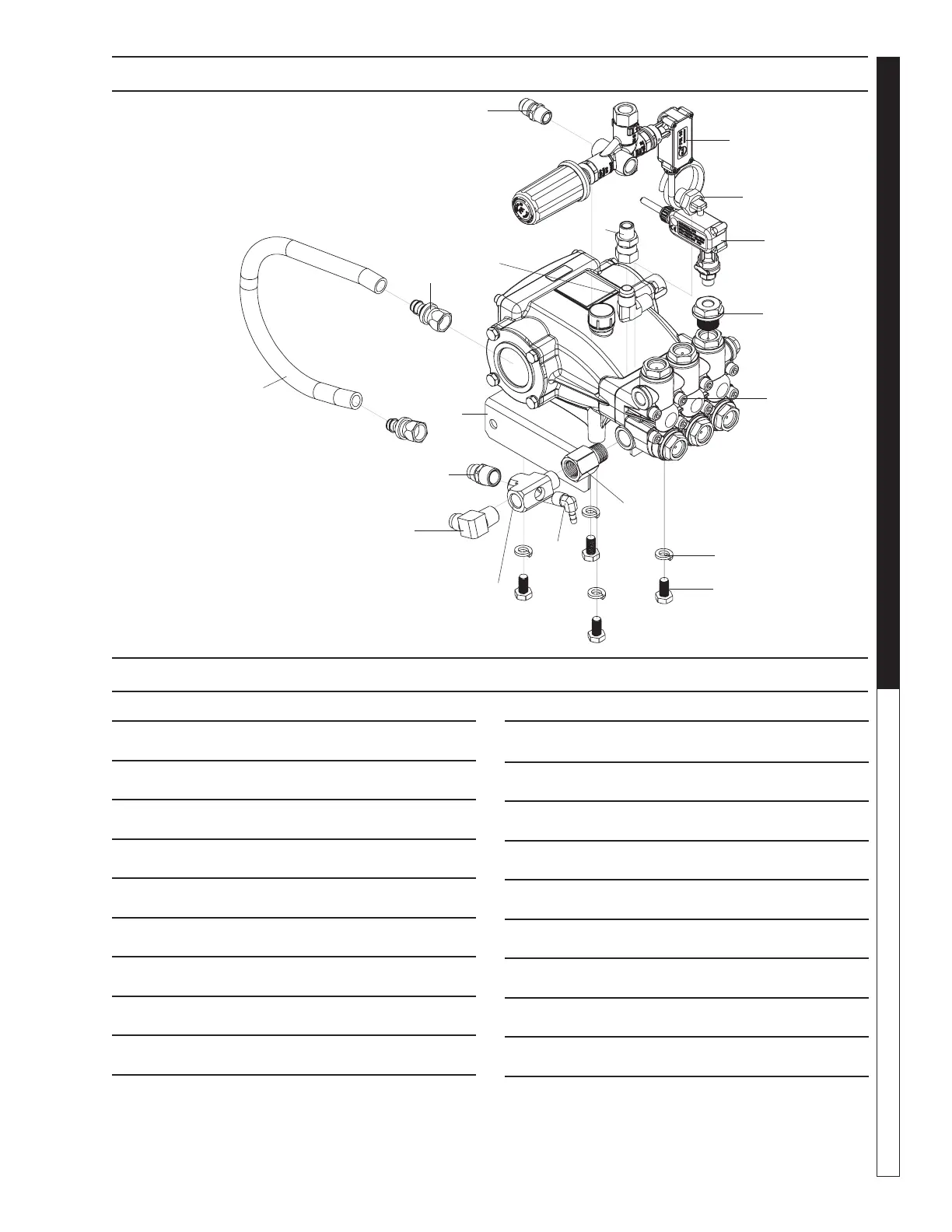

PUMP ASSEMBLY 700 SERIES
PUMP ASSEMBLY 700 SERIES PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 8.757-193.0 Adapter, 1/2" F-Nptf X 1
/2" M-Nptf, Brass 1
2 8.757-200.0 Adapter Brass 1/2 Sae
(M) X 1/2 Nptf (M) 1
3 8.757-205.0 Hose Barb, 1/4" Barb X
1/4" M-Nptf, 90° 1
4 8.757-391.0 Elbow Brass 1/2 Sae (M)
X 1/2 Nptf (M) 1
5 8.757-509.0 Elbow Steel 1/2 Sae (M)
X 3/8 Nptf (M) 1
6 8.757-656.0 Swivel Steel 1/2 Jic (F)
X 3/8 Nptf (M) 1
7 8.758-007.0 Adapter Brass 1/2 Jic
(M) X 3/8 Nptf (M) 1
8 8.758-203.0 Protection Pump 3/8"
145 Deg W/Slnt 1
9 8.754-869.0 Unloader,Pulsar RV,3/8"
NPT,W/Knob&Swtch 1
ITEM PART NO. DESCRIPTION QTY
10 8.759-545.0 Fitting Tee Street 1/2"
With Hole 1/4" 1
11 8.930-036.0 Pump Base 700 Series
Painted 1
12 8.930-042.0 Pump Hotsy Hm3840r.3
3.8@4000 1740rpm 1
13 9.802-151.0 Swivel, 1/2" Barb X
1/2"Jic, Fem/Brass 2
14 9.802-259.0 Hose, 1/2"
Push-On, /Ft 1.250 ft
15 9.802-458.0 Switch Pressure
N/O, 1/4 Npt Ss 1
16 9.802-632.0 Cap, Valve 24mm,
W/ 1/4"""" Gauge Port 1
17 9.802-744.0 Bolt, 10mm X 20mm,
Hh Zinc 4
18 9.802-816.0 Washer, 7/16", Split
Ring Lock, 780481 4
7
9
8
15
16
12
18
4
2
11
6
5
13
14
1
3
10
17
