Hotsy 965B Series - Component Identification

10
Operations

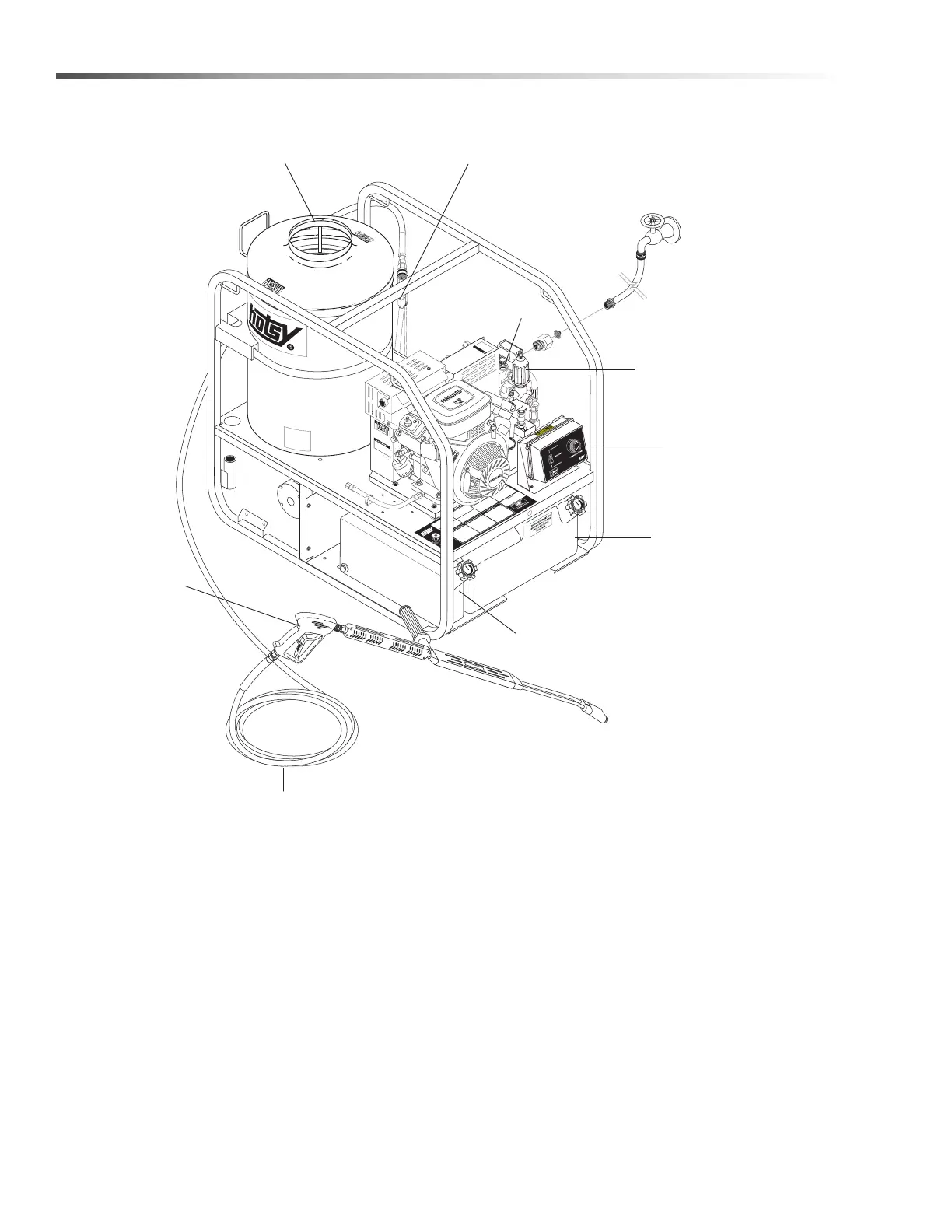

Component Identification
Pump — Delivers a specific gpm to the high pressure
nozzle which develops pressure.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Wand — Must be connected to the spray gun.
High Pressure Hose — Connect one end to water
pump high pressure discharge nipple and the other end
to spray gun.
Unloader Valve — Safety device which, when the
spray gun closes, prevents over pressurization.
Hotsy Gas Belt Drive Series Operator’s Manual 8.931-236.0 - BD
CHAUD!
Burner
Exhaust
Relief
Valve
Pump
Unloader
Valve
Control Bo
x
Fuel Oil
Tank
Gasoline
Tank
High
Pressure
Hose
Spr
ay
Gun
Spray Wand
