HOUNO C 1.06 - Miscellaneous Component Testing

- 49 -

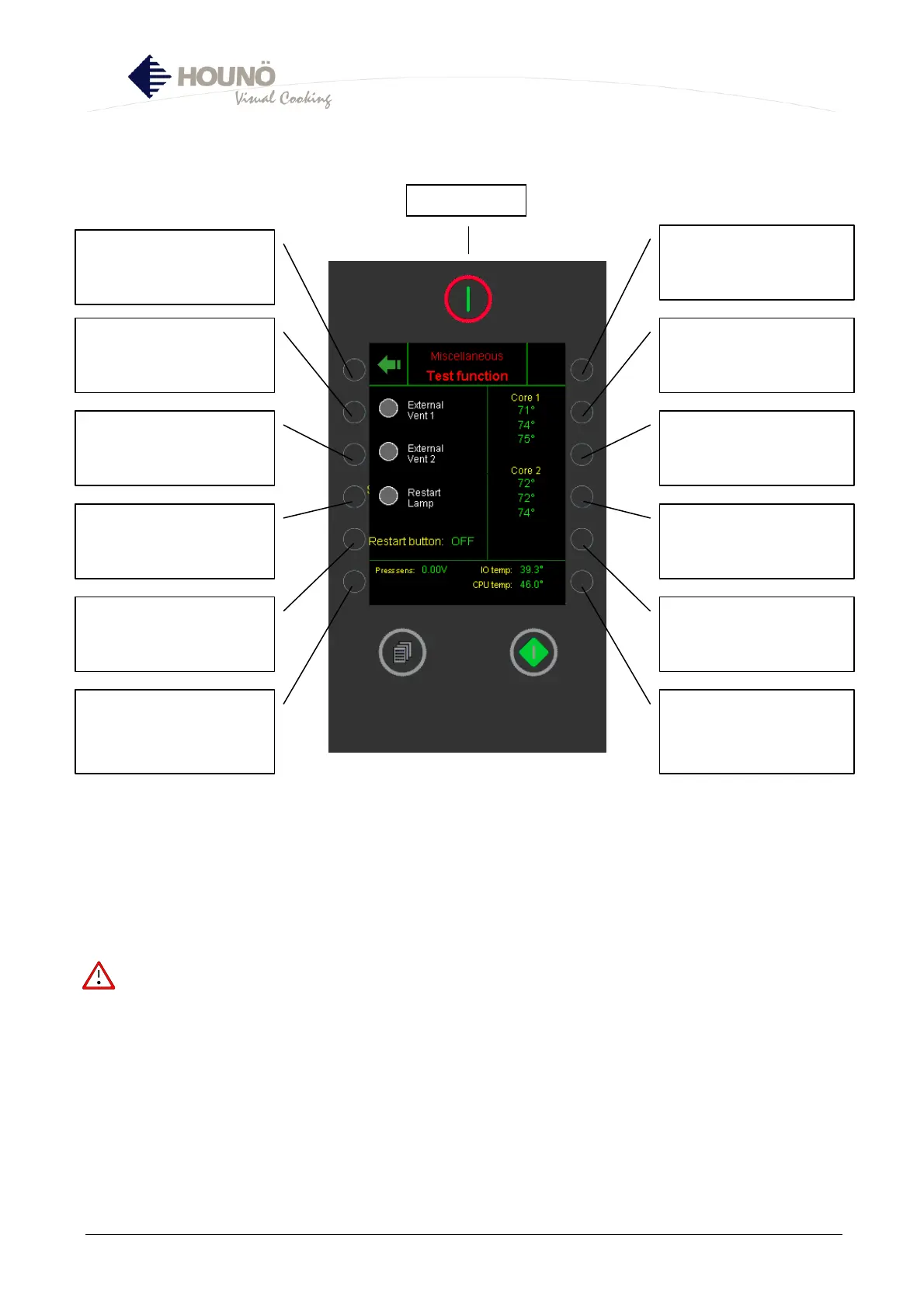

Test Functions, Misc.
• Core 1: Shows current temperature of core temperature probe 1 (3 measuring points).
• Core 2: Shows current temperature of core temperature probe 2 (3 measuring points).
• When the external ventilation is activated, the oven control leaves the outlet active
during program performance and 10 minutes after the program has ended.
• Note that as external vent. 1 and 2 are merely control voltage, they should be connected
through an external relay (max.: 24V).
• Press sens shows voltage from pressure sensor (between 0 and 5 volts).
• IO temp shows temperature of IO board.
• CPU temp shows temperature of CPU board.
Return to TEST
FUNCTIONS
Activate external vent. 1
Terminal 4
Activate external vent. 2
Terminal 5
Activate restart lamp
INFO: Restart status
INFO: Voltage at pressure
sensor for ClimaOptima
Not active
Not active
INFO: Temperature
core temperature probe 1
Not active
Not active
INFO: Temperature
Core temp. probe 2
Not active
Not active
INFO: Temperature at IO
board and CPU
Not active
Main switch
