Arm Width Adjustment
The standard seat has arm width adjustment (Figure 4F and 4G).
To adjust the arm width:
1. Locate the two knobs and two set screws on the square tube
at the rear of the seat.
2. Loosen the knobs and set screws.
3. Move the arms to a comfortable width. Make sure the tubes
do not extend beyond the set screws.
4. Tighten the knobs and set screw.

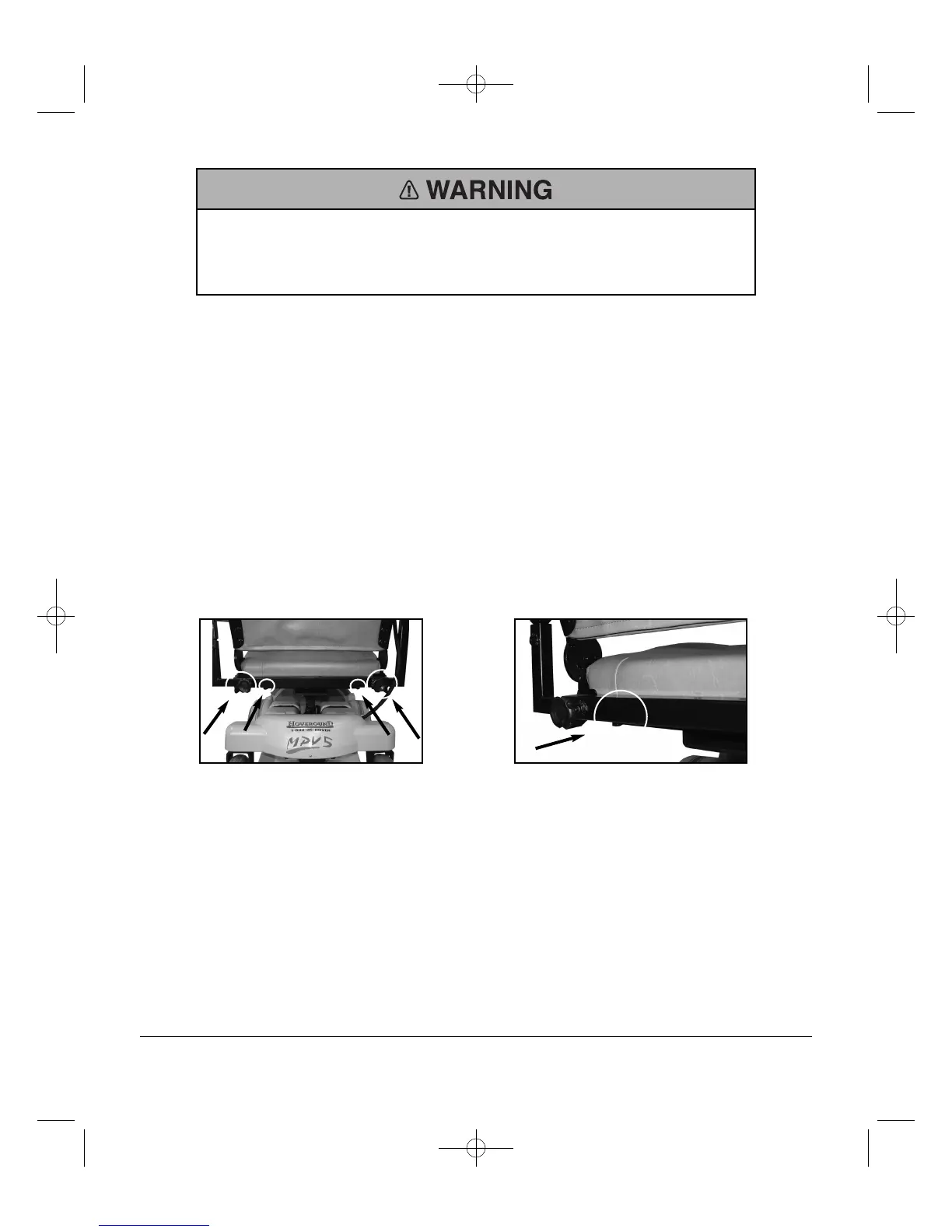

Figure 4F
Figure 4G
Rapid rotation may cause seat to skip the locking position,
increase the chances of a fall from the seat, and can result
in serious injury or death. Rotate seat slowly.
Arm Height Adjustment
If arm height adjustment is required an arm raising or arm lowering
kit is available (Figure 4H). To adjust the arm height:
1. Locate the set screw on the back of the arm tube upright.
2. Loosen the screw and adjust the arm to a comfortable height.
3. Tighten the screw.
