48 Chapter 7 D82008753M 10/13
Pinch Clip Tabs In As Shown
Clip Location
Clip Tabs

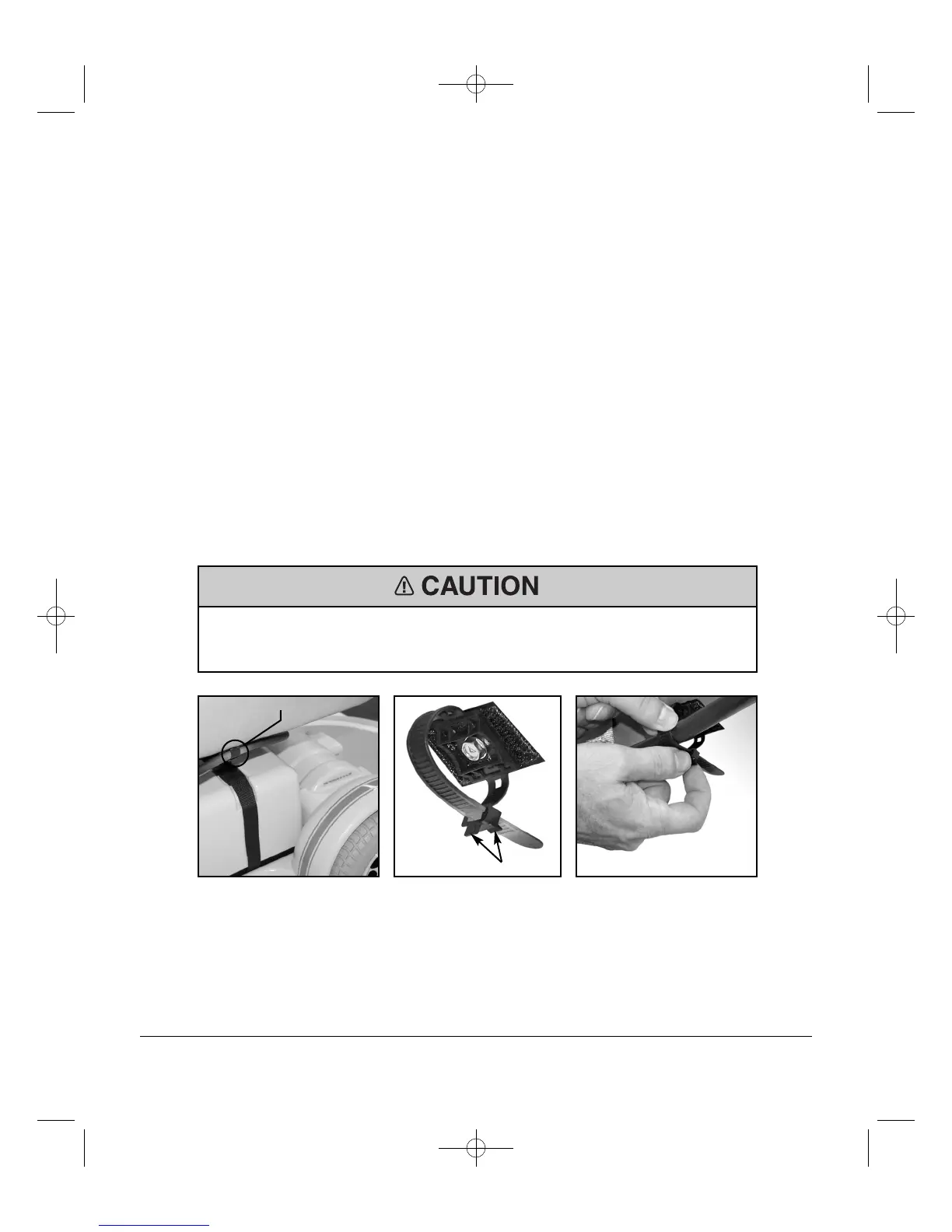

Figure 7C
Figure 7D
Figure 7E
Seat Removal/Replacement
Removal
1. Remove controller.
2. Remove the controller cable from the seat base by releasing
the Velcro strap at the rear of the seat or opening the seat clip
at the side of the seat, depending on the type of seat you
have. Open the clip by pinching the small tabs on the clip with
one hand while removing the strap with your other hand.
(See Figures 7C, 7D and 7E, below for recline seat).
3. Using the 1/4 inch hex wrench supplied with the vehicle, loosen
the cap screw located at the top-front corner of the seat post.
(See Figure 7F, page 44).
4. Grasp the seat at the front and back and lift seat directly
upward until it is free of the seat post.
The power wheelchair and its components are heavy. To avoid
injury, do not attempt to lift beyond your capability.
