Replacement
1. Grasp the seat at the front and back.
2. Align the male post of the seat bracket with the seat post and
allow seat bracket to descend into the seat post.
3. Tighten the socket head cap screw at the top-front corner of
the seat post with the 1/4 inch hex wrench that is supplied with
the vehicle.
4. Reattach the controller cable to the seat by reinstalling the
Velcro strap on the rear of the seat or into the clip at the side
of the seat, depending on the type of seat you have. Position
the cable to the minimum length to allow the arm to lift.
Tighten the strap to keep the cable in position. To prevent
cable damage, do not let the cable hang free or extend
beyond the chair. Use care when driving to keep the cable
from catching on objects.
D82008753M 10/13 Chapter 7 49

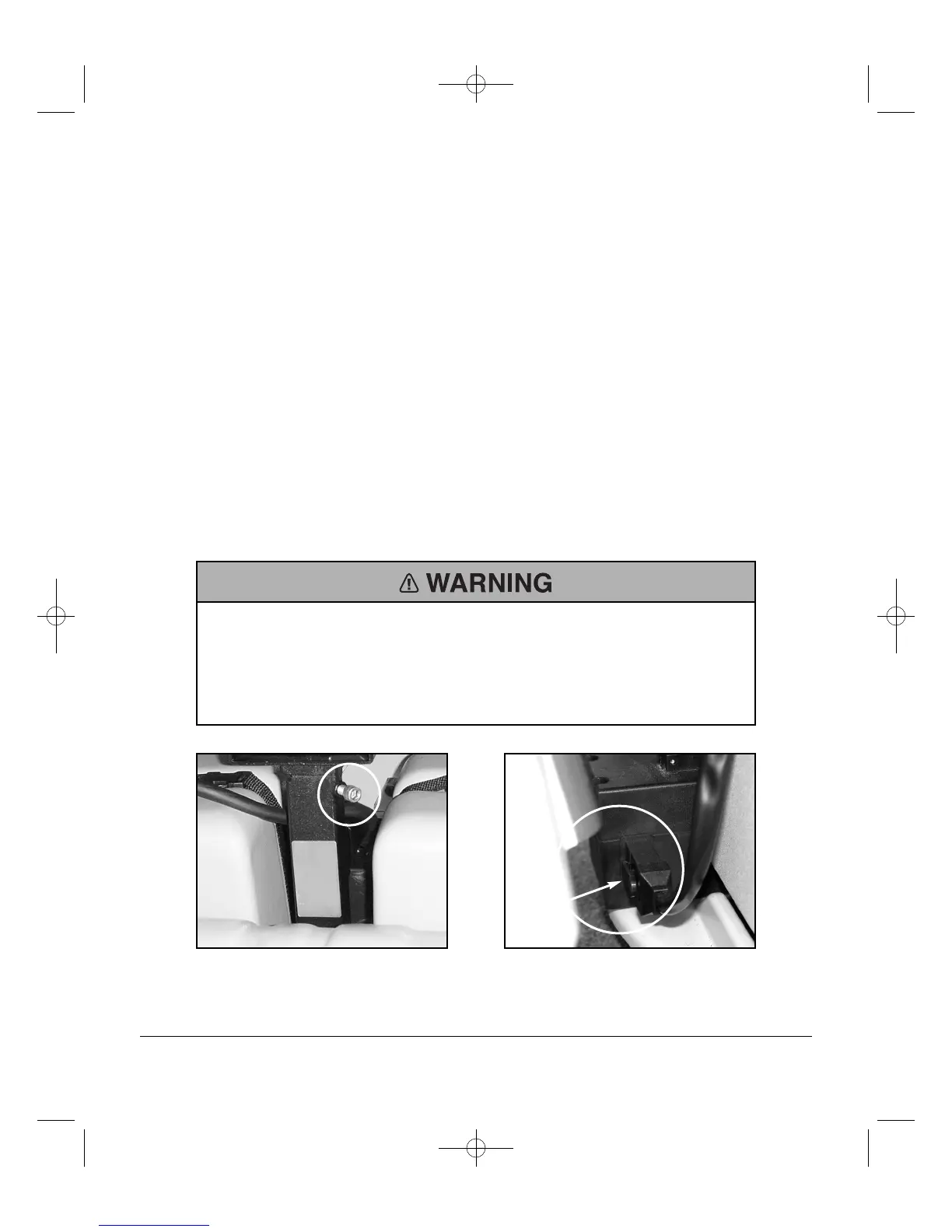

Figure 7F Figure 7G
The cable that joins the joystick to the junction box is a critical
part of the vehicle. Ample cable is provided to allow for
adjustments. There is a danger if this cable is not correctly
routed. Do not allow the excess cable to extend beyond the
width of the chair where it may become damaged.
