Reclining Back Seats Arm Height Adjustment - The arms can be
raised from the standard position by repositioning the bolts that
hold the arm in place. See Figure 4P below for bolt location.
Locate the upper threaded hole by putting your finger on the
fabric above the top bolt. Move up about 1 inch until you feel
the depression for the threaded hole. Poke through the fabric
to open access to the hole. A small screwdriver works well.
Remove the arm bolts and reposition with the top bolt in the newly
opened hole. Tighten bolts in place. Raise and lower arm to be
sure installation is correct. If arm angle adjustment is required, refer
to that section of this chapter.

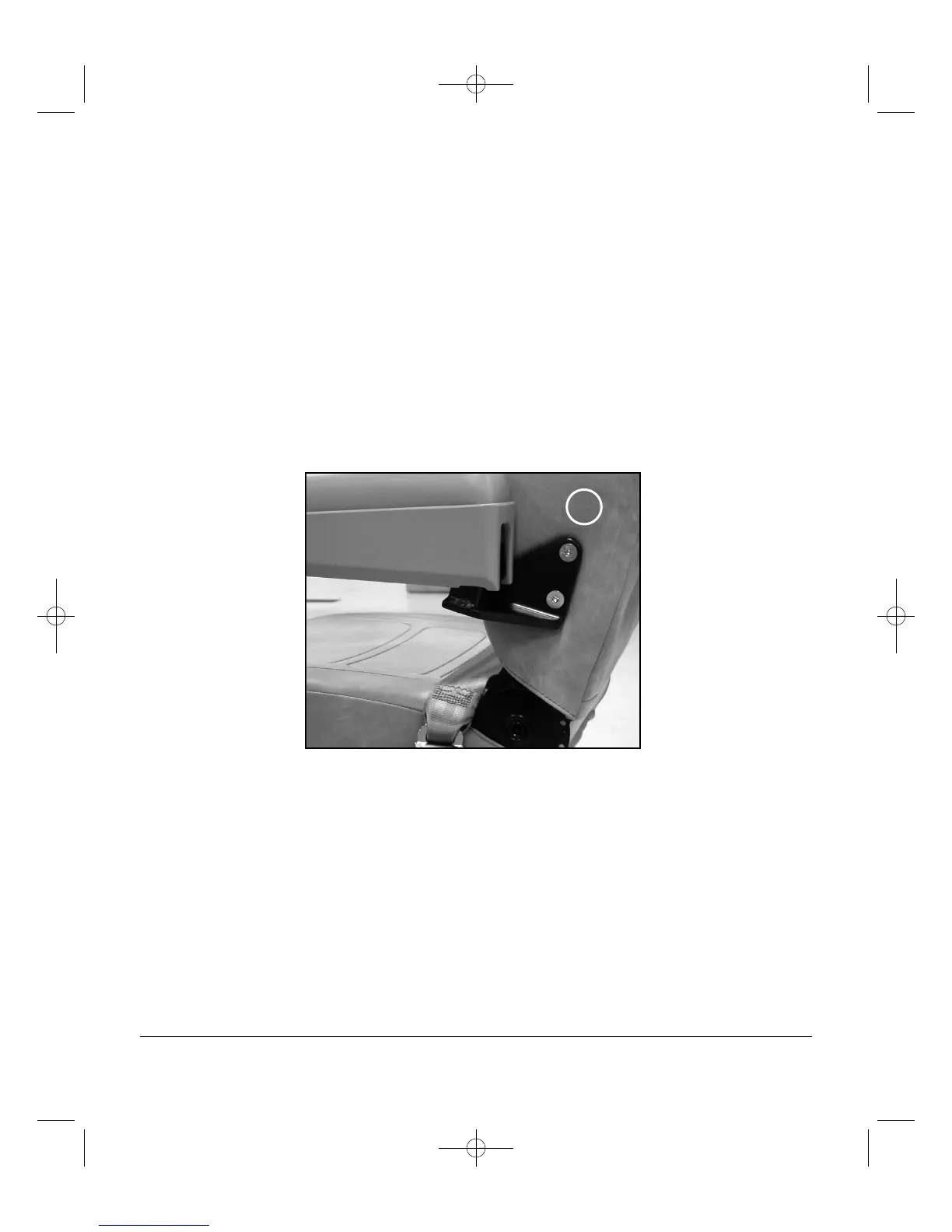

Figure 4P
