4 Wiring Diagram

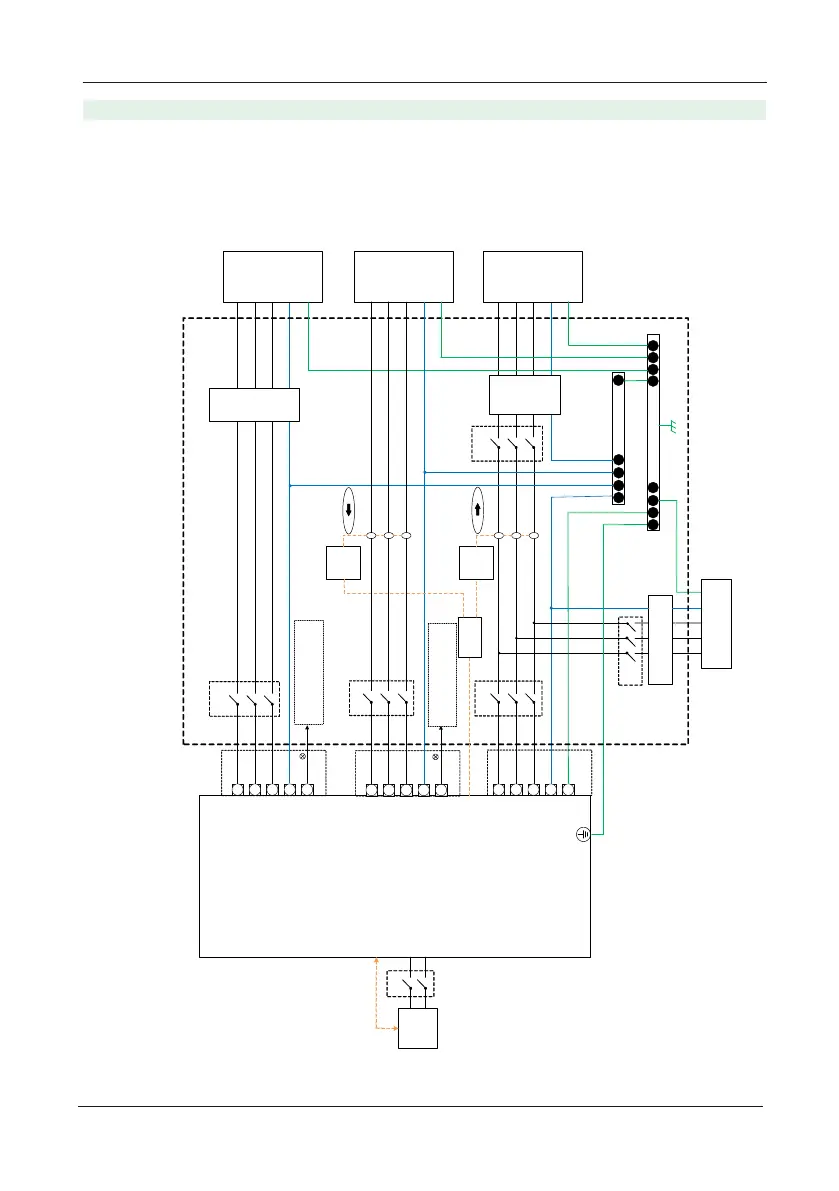

Wiring diagram for countries such as Australia, New Zealand, South Africa, etc.
Please follow local wiring regulations.
03
AC-coupled Inverter Quick Installation Guide
E-BAR
Battery
BMS
Backup
Loads
Smart
Meter
1
RCD
Grid
Normal Loads
Distribution Box
PE or
L1
L2
L3
N
L1
L2
L3
N
PE
EPS
GRID
Meter
L1
L2
L3
N
PE
L1
L2
L3
N
PE
L1 L2 L3 N PE
CT1
CT2
CT3
Utility
meter
RCD
ʙ
ʒ
ʓ
ʕ
ʗ
ʘ
Do not connect this terminal
when the neutral wire and PE
wire are connected together.
N-BAR
E-N
Link
HAT-HV series
ʖ
Generator
/Inverter
GEN
L1
L2
L3
N
PE
CT1
ʔ
Smart
Meter
2
CT2
CT3
L1
L2
L3
N
PE
LOAD GRIDLOAD GRID
or
Do not connect this terminal
when the neutral wire and PE
wire are connected together.
RJ45
Coupler
INV GENINV GEN
