Power connector cable
Description Spare part number
Power connector cable 787922-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the keyboard/top cover (see Keyboard/top cover on page 24).

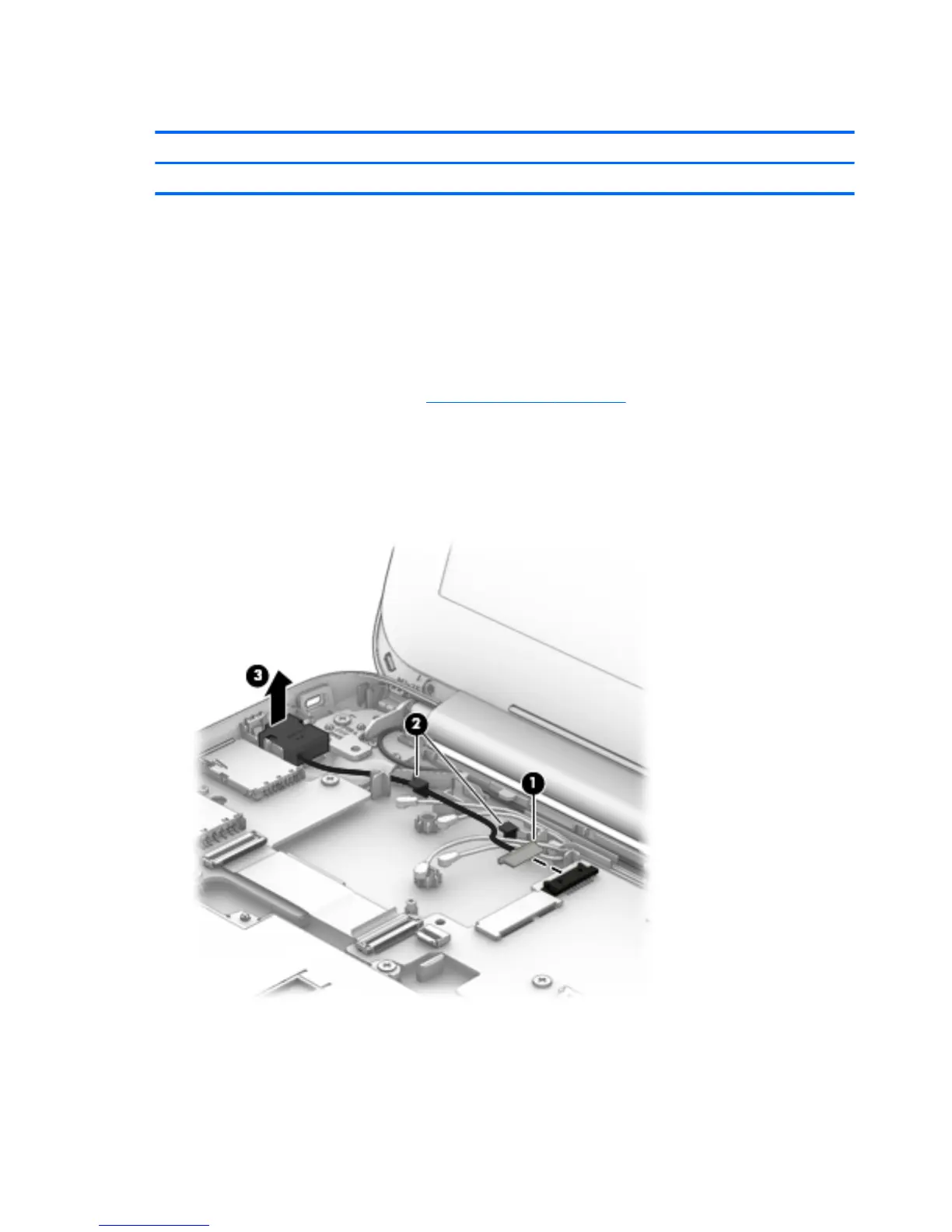

Remove the power connector cable:
1. Disconnect the power connector cable (1) from the system board.
2. Release the power connector cable from the retention clips (2) built into the base enclosure.
3. Release the power connector (3) from the retention molding built into the base enclosure.
4. Remove the power connector cable.
Reverse this procedure to install the power connector cable.
38 Chapter 5 Removal and replacement procedures
