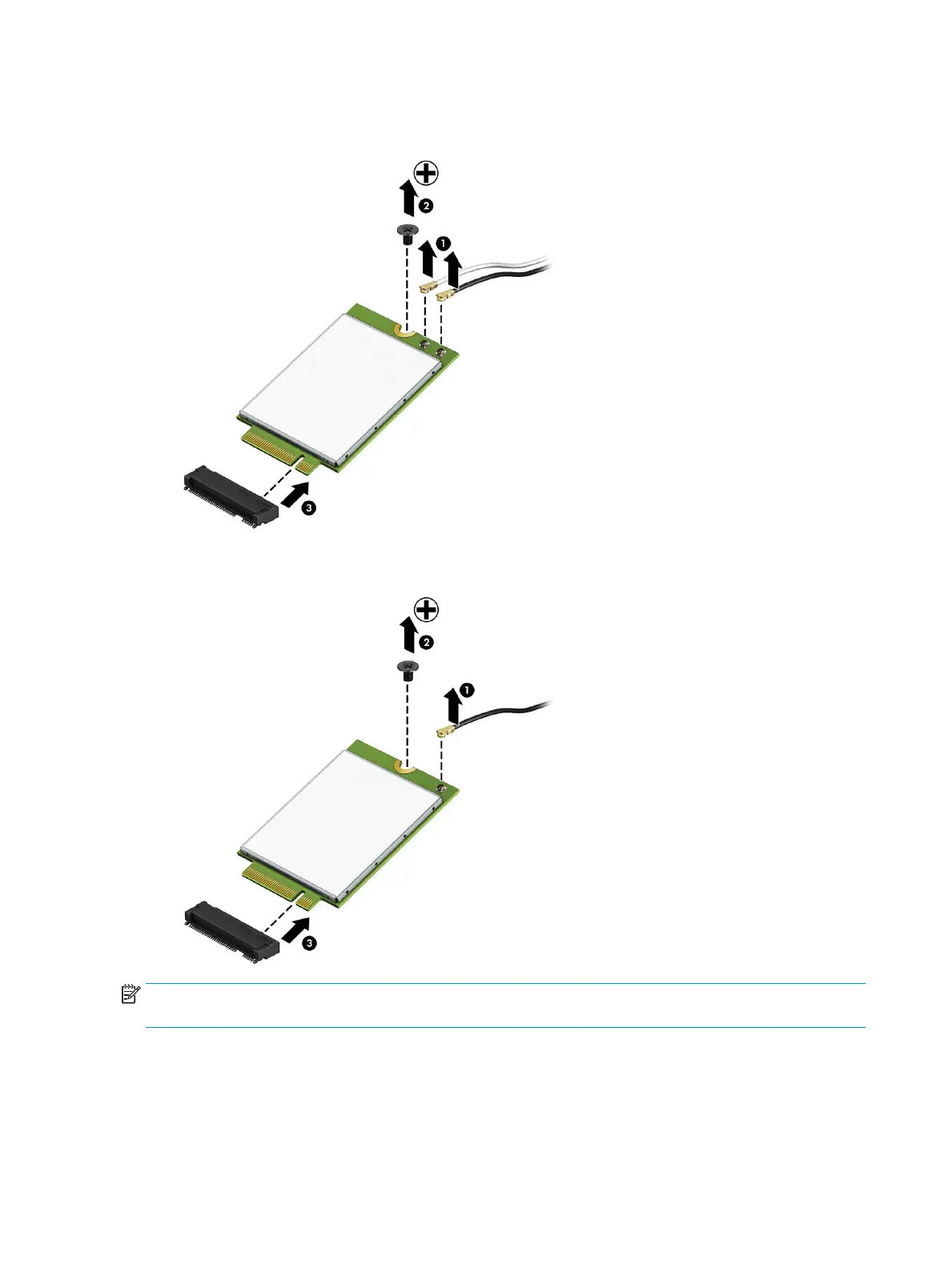

3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

Models with two antennas

Models with one antenna

NOTE: If the WLAN antenna is not connected to the terminal on the WLAN module, a protective sleeve must

be installed on the antenna connector, as shown in the following illustration.

34 Chapter 5 Removal and replacement procedures for authorized service provider parts
