Power connector
Table 5-15 Power connector description and part number
Description Spare part number
Power connector 808155-010
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (see Bottom cover on page 27).
3. Remove the battery (see Battery on page 29).
4. Remove the display assembly (see Display assembly on page 50).

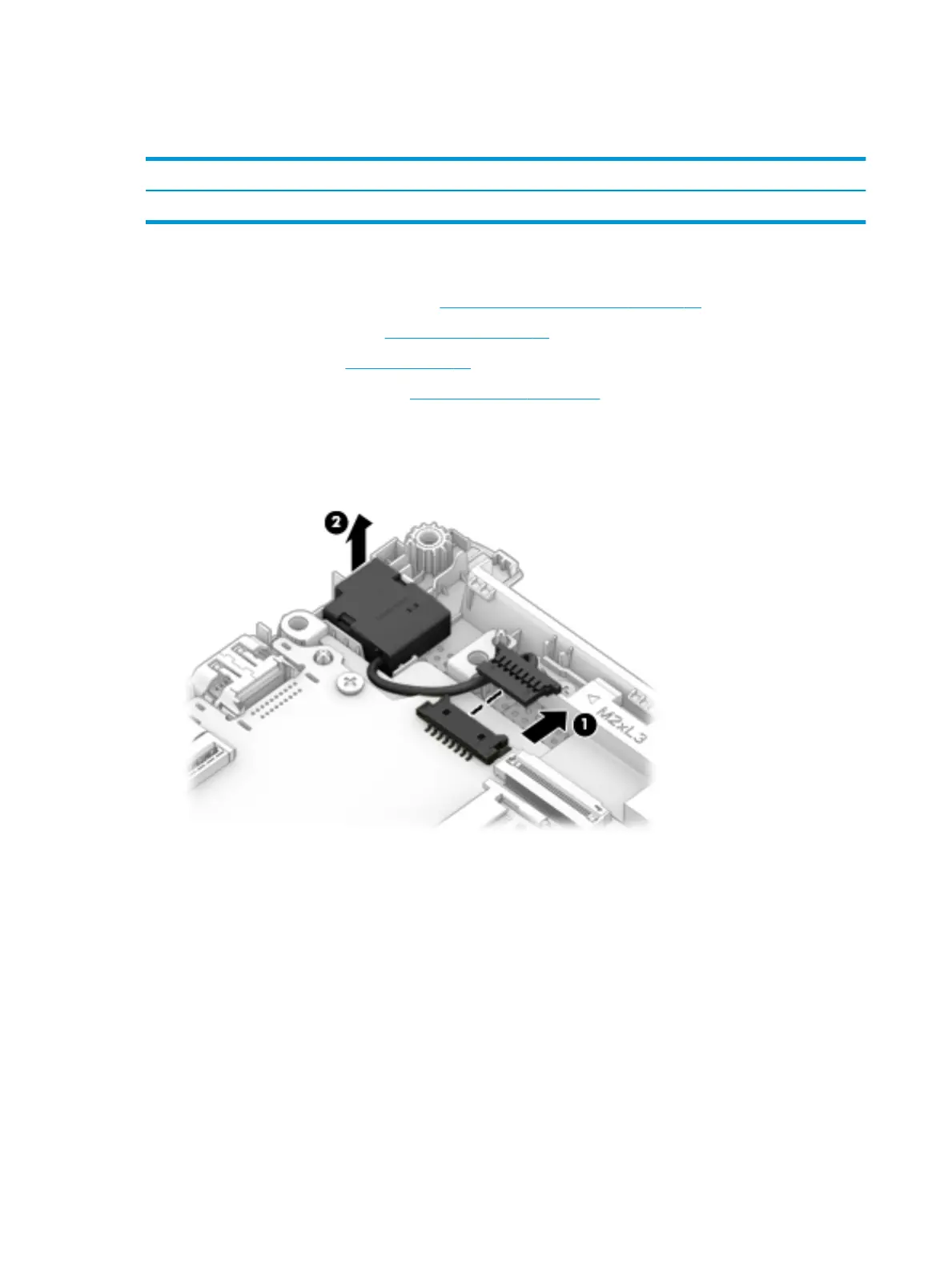

Remove the power connector cable:
1. Disconnect the cable from the system board (1).
2. Remove the power connector and cable from the computer (2).
Reverse this procedure to install the power connector cable.
58 Chapter 5 Removal and replacement procedures for authorized service provider parts
