HP 14-dq0 Series

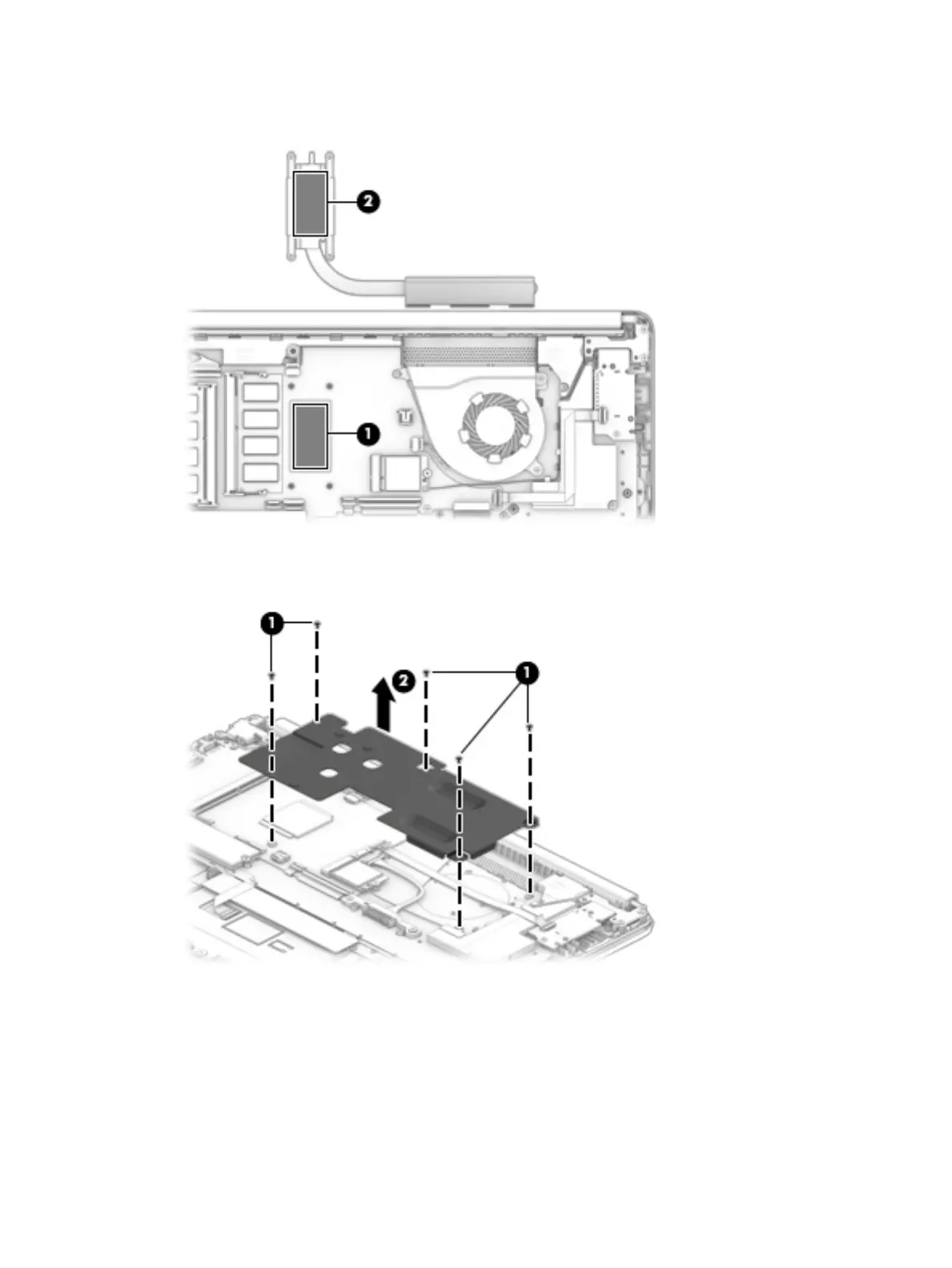

3. Apply thermal grease to the integrated processor on the system board (1) and associated location on
the heat sink (2).
4. Fanless models: Remove the ve Phillips M2.0 × 2.5 screws (1) in the order indicated on the heat sink.
5. Remove the heat sink (2).
42 Chapter 5 Removal and replacement procedures for authorized service provider parts
