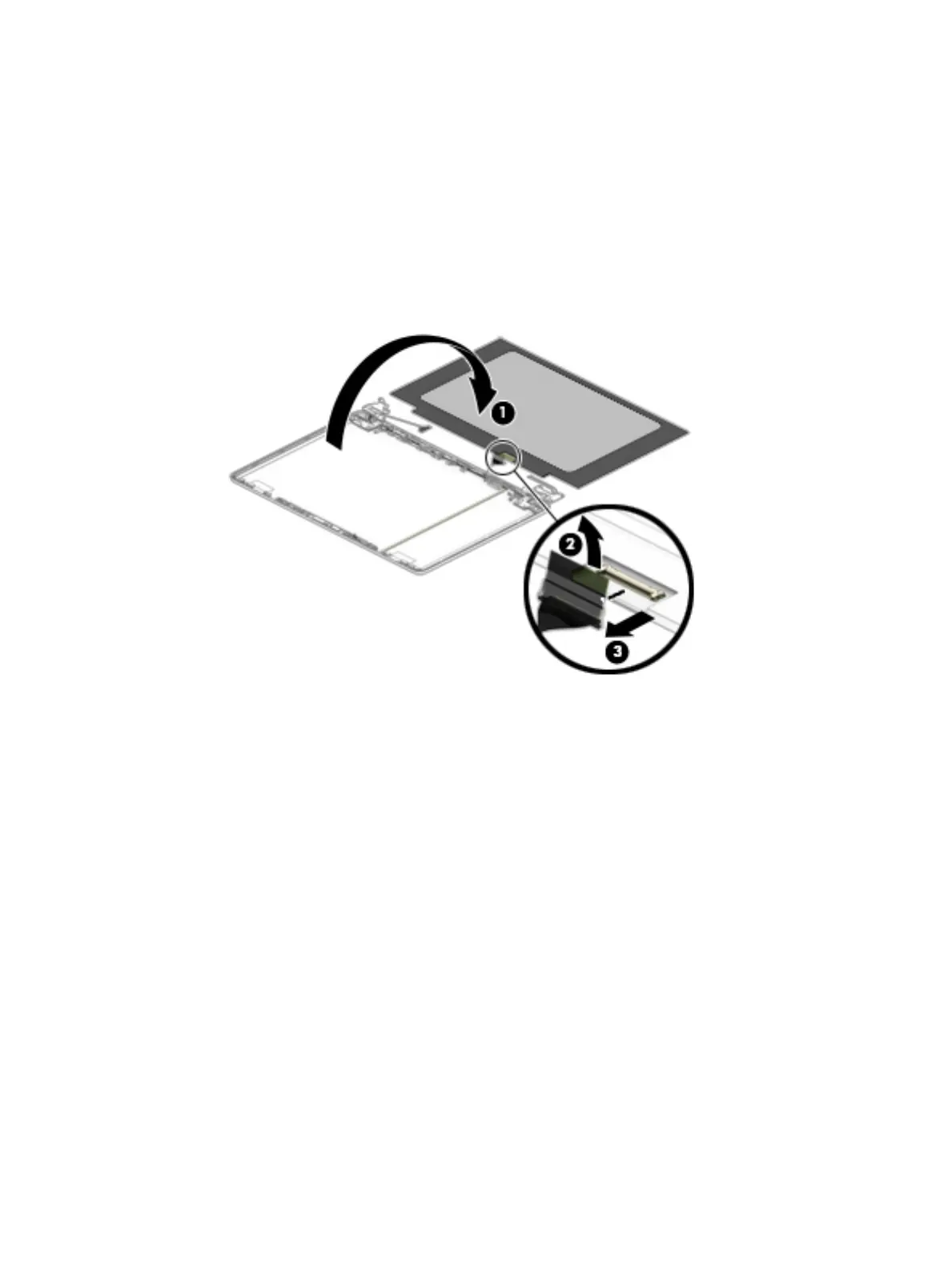

d. Lift the tape from the connector on the rear of the panel (2), and then disconnect the cable from
the panel (3).
Display panels are available as the following spare part numbers:
L61945-001: FHD, antiglare, 250 nits
L61946-001: FHD, BrightView, 250 nits
L61947-001: HD, antiglare, 220 nits
L61948-001: HD, BrightView, 220 nits
L61949-001: HD, BrightView, 220 nits, Touch-on Panel (TOP)
54 Chapter 5 Removal and replacement procedures for authorized service provider parts
