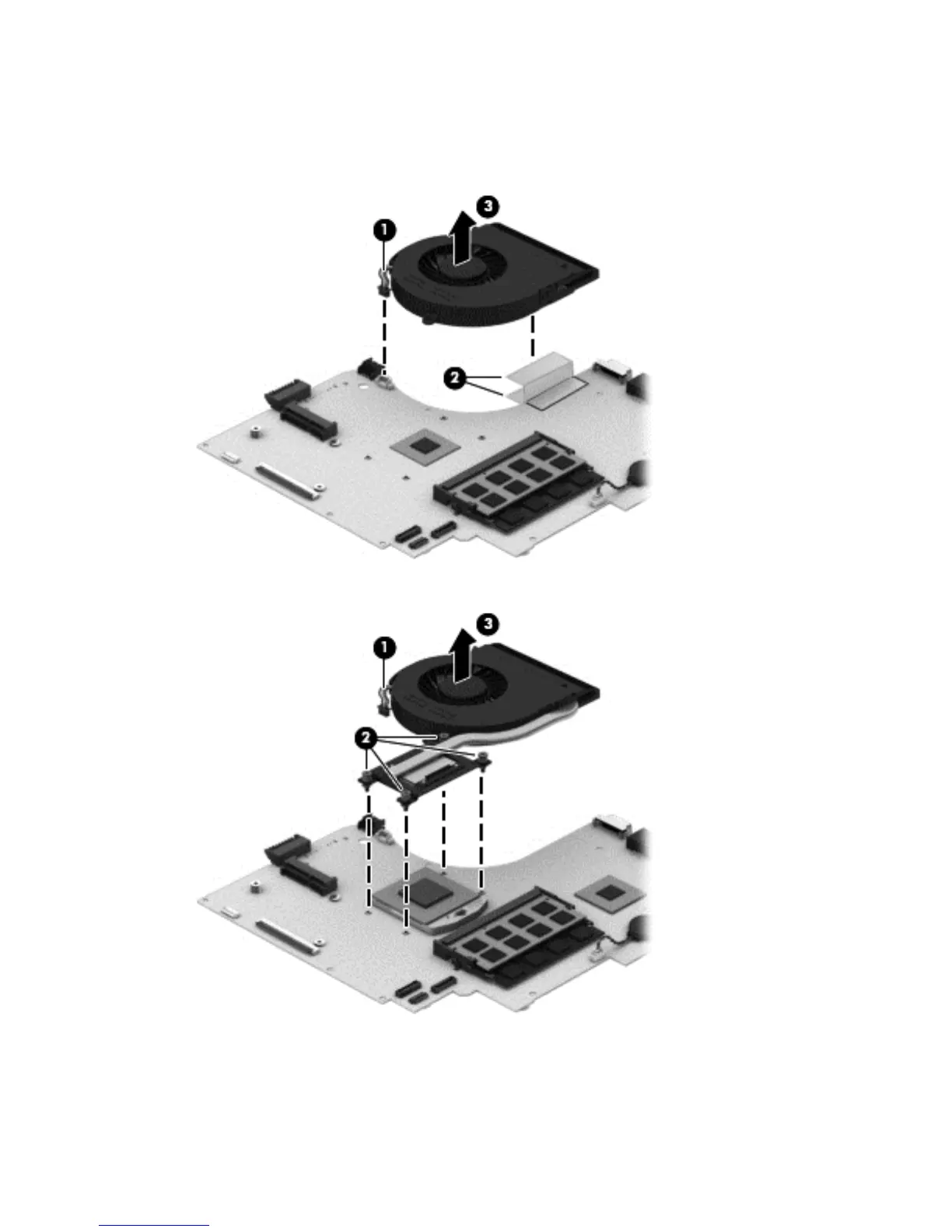

a. Disconnect the fan cable (1) from the system board.

b. Remove the fan from the clip on the system board (2).

c. Remove the fan (3).

Intel processor and UMA graphics (not Bay Trail)

Intel processor and discrete graphics (not Bay Trail)

78 Chapter 4 Removal and replacement procedures
