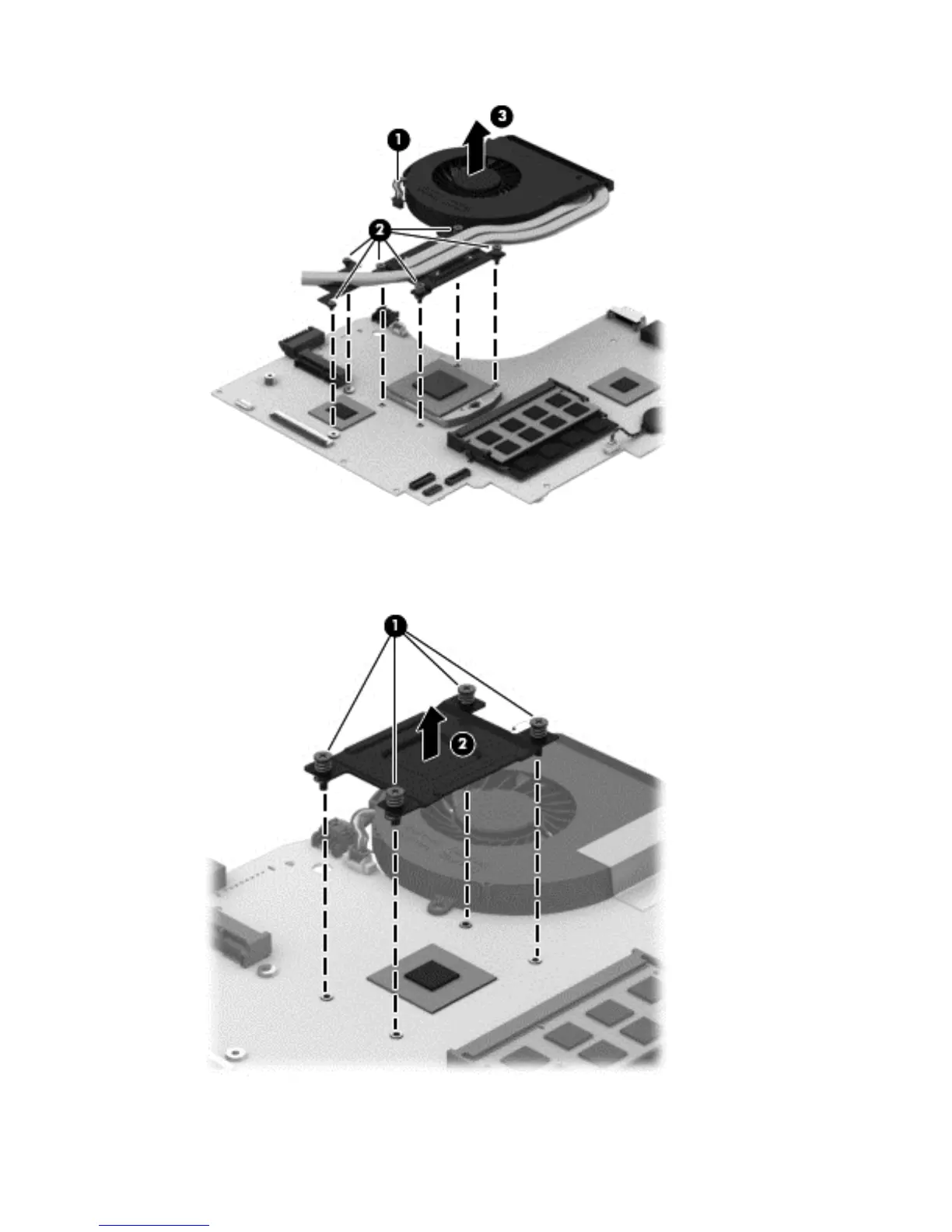

Remove the heat sink:

a. Loosen the four Phillips screws that secure the heat sink to the system board (1).

b. Remove the heat sink (2) from the system board.

AMD processor and discrete graphics

Component replacement procedures 79
