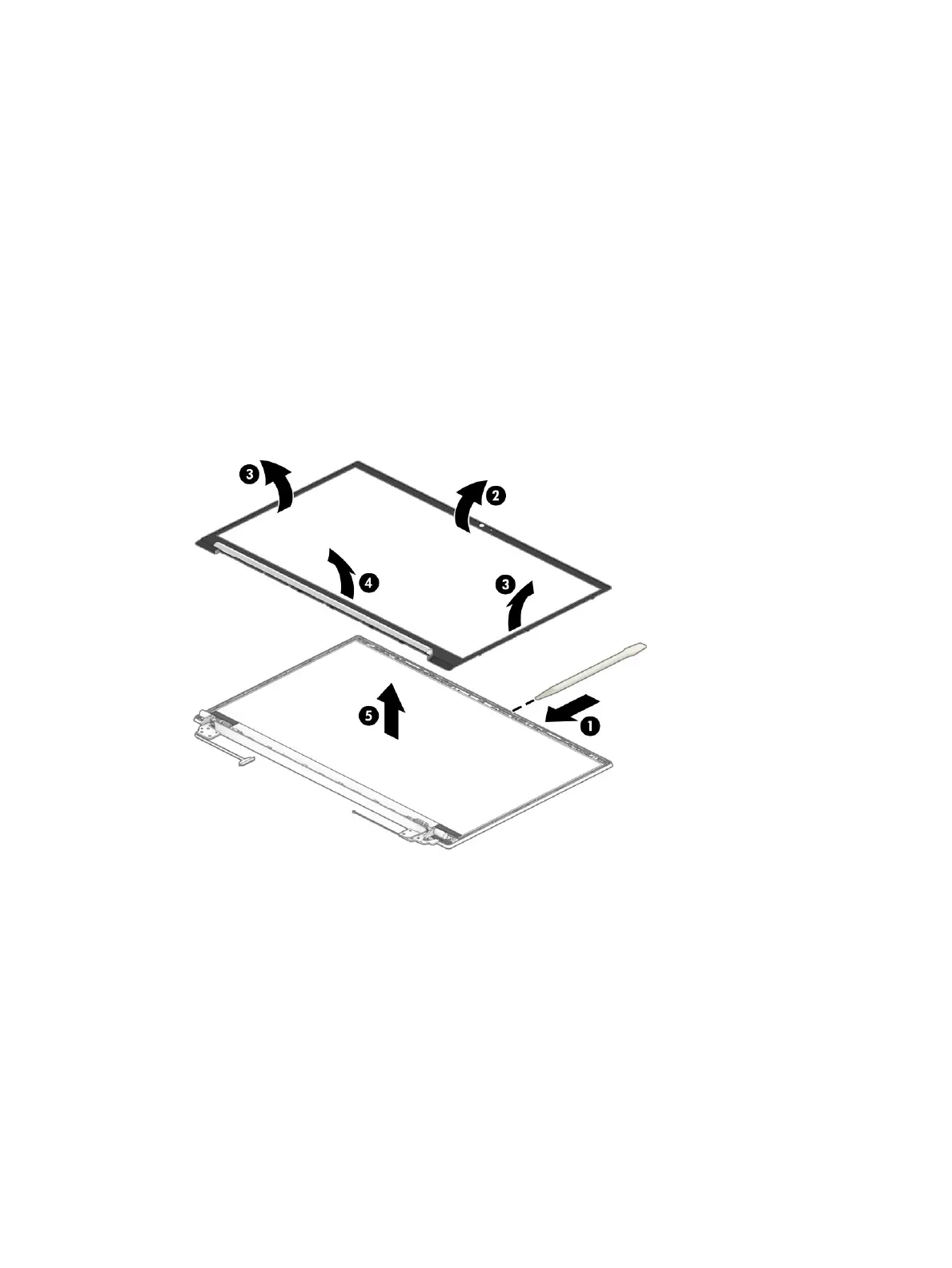

a. Use a at, nonmarking tool (1) to release the top edge of the display bezel (2) from the display
assembly.
b. Release the left and right edges of the display bezel (3) from the display assembly.
c. Release the bottom edge of the display bezel (4) from the display assembly.
d. Remove the display bezel (5) from the display assembly.
Bezel adhesive is available in the Adhesive Kit as spare part number M26981-001.
The bezel is available as the following spare part numbers:
M08905-001: Ceramic white
M11934-001: Fog blue
M11935-001: Forest teal
M11936-001: Natural silver
M11937-001: Warm gold
8. If you need to remove the display panel:
a. The display panel is secured to the display enclosure with tape that is installed under the left and
right sides of the panel. To remove the panel, use tweezers to grasp the end of the tape (1). While
turning the tweezers, wrap the tape around the tweezers as you continue to pull the tape out from
behind the display panel (2). You must pull the tape multiple times before it is completely
removed.
46 Chapter 5 Removal and replacement procedures for authorized service provider parts
