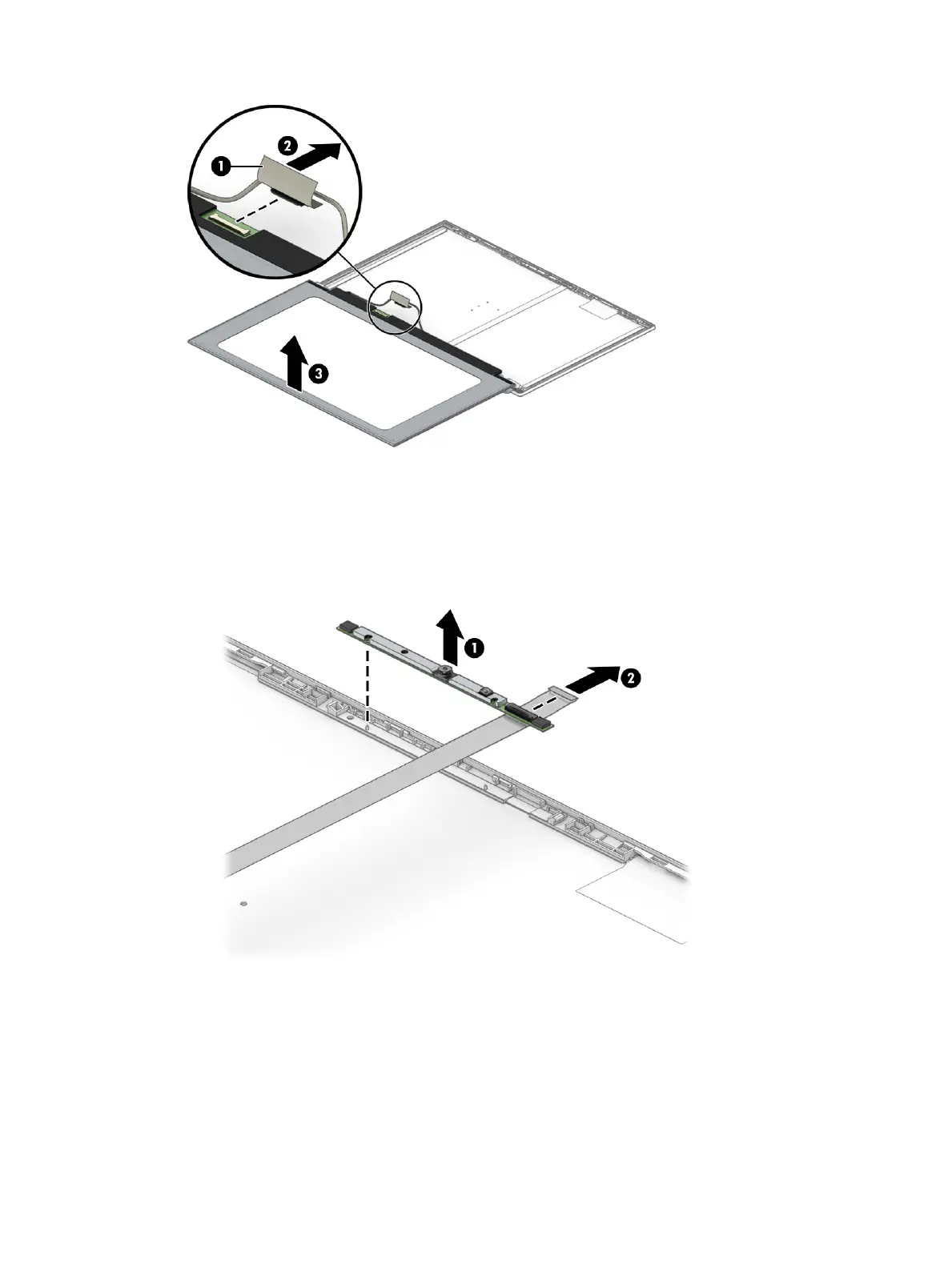

9. If you need to remove the camera module:
a. Use a tool to detach the camera module (1) from the display back cover. (The module is attached
with double-sided adhesive.)
b. Disconnect the cable from the module (2). Note that the cable routes under module. The camera
module is available as spare part number M08908-001.
48 Chapter 5 Removal and replacement procedures for authorized service provider parts
